Ricoh 70E User Manual
Page 72
Preparation for Installation 4-24
II
L
00
4.3 Installation in the composition with the Container Stacker 1 or 2
4.3.1 Connection of the Engine and Container Stacker 1 or 2

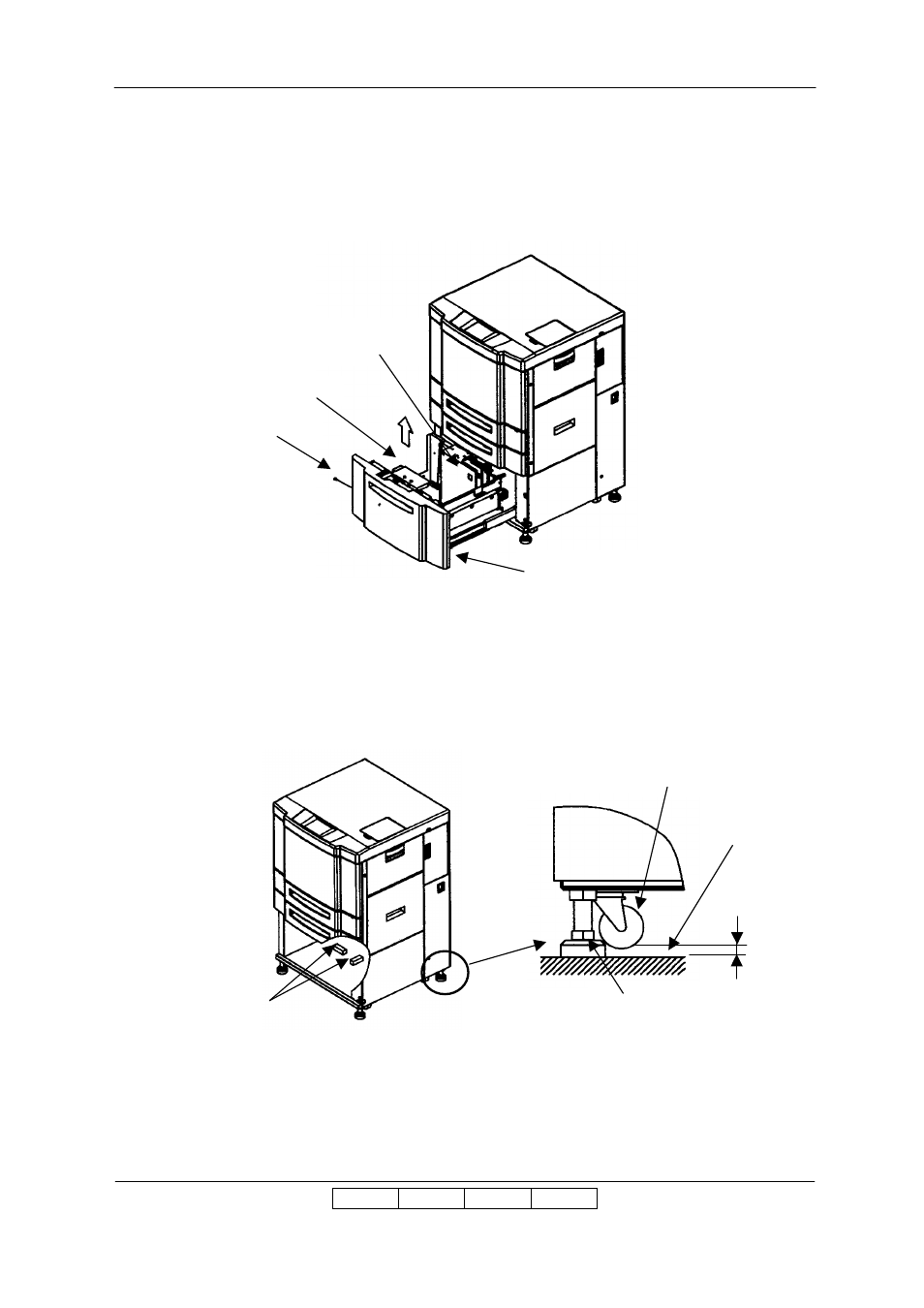

1) Drawer the 2000 Sheets Hopper and set the paper guide at the position of 8.5” paper size.
2) Remove the M4 Screw and the 2000 Sheets Hopper.
3) Turn the four leveling bolts until casters are floated.
4) Adjust the horizontal level of the printer with the Level Meter putting on the frame.
M4 Screw
Lever
Paper guide
2000 Sheets Hopper
Gap
Caster
Leveling Bolt
Floor
Level Meter
(Max 1mm)
