Page 76
Preparation for Installation 4-28
II
L
00

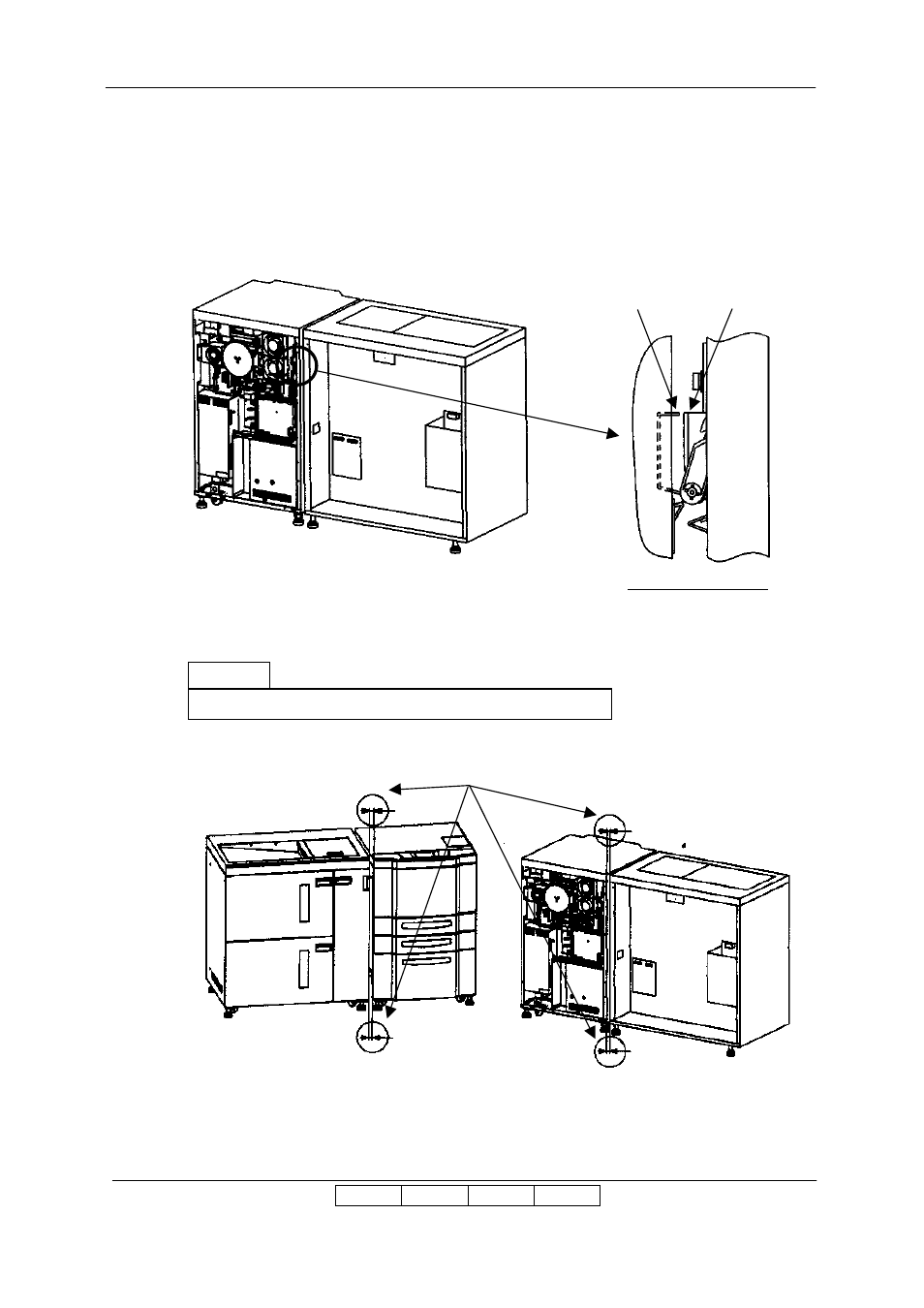

(2) It looks into the space between Printer and Container stacker from a rear side, the
height of the Frame’s upper part of Container stacker and the Guide plate U’s upper
part is the same.
(3) Put the Level Meter on two places of Container stacker is level.
Check the Gaps of A,B,C,D are nearly equal each other.
CHECK
Adjust the gap in parallel
B
C
D
Guide plate (U)
Frame
Connection part details
