Preparation for Installation 4-33

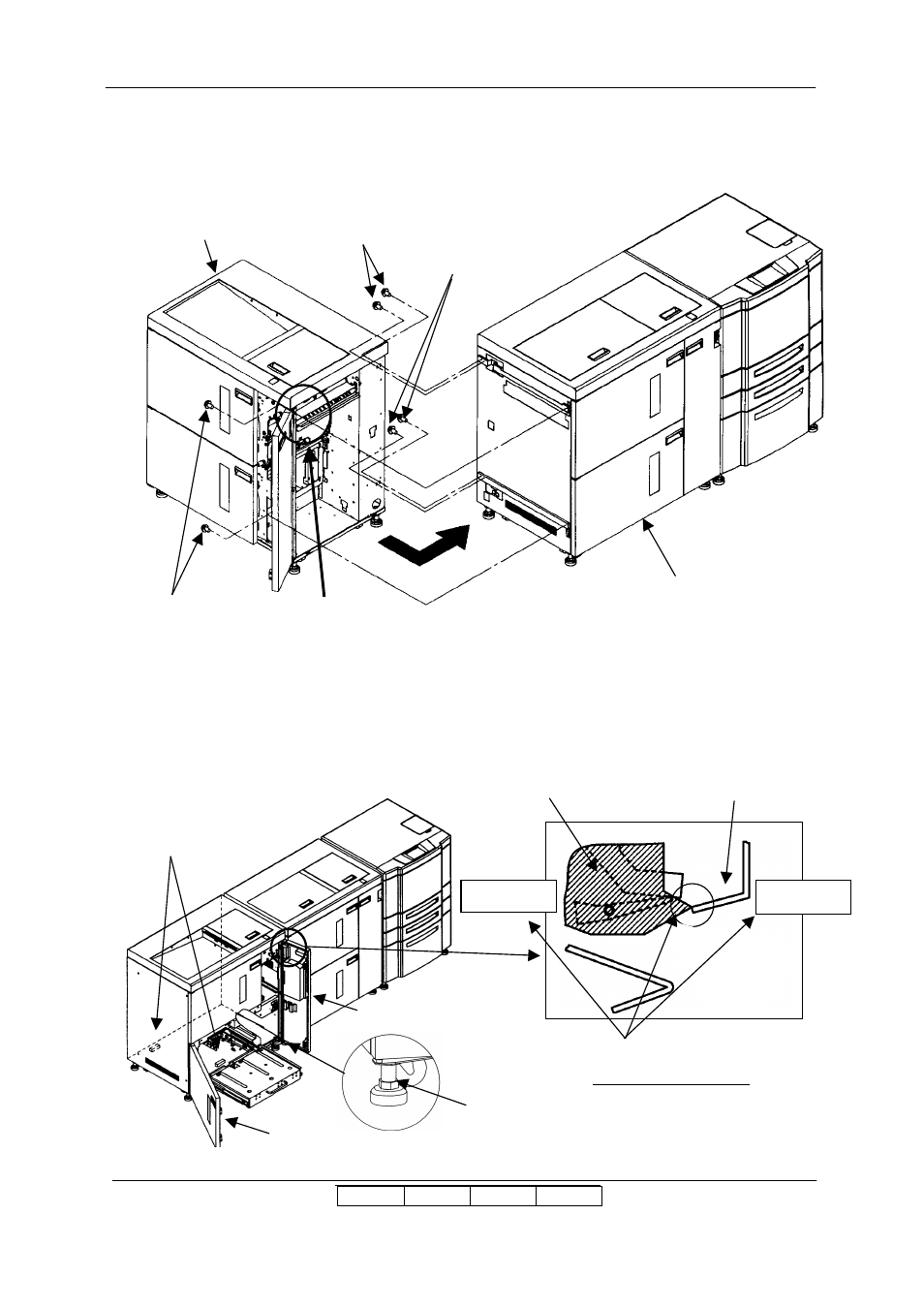

6) Install the Container Stacker 1 to the Container Stacker 2. The screw is the thing of the

temporary stopping.

7) In order to adjust the height of Container stacker, turn 180 degrees each of four leveling bolts,

and satisfy the following conditions, and bolt the screw of a temporary tight.

(1) When Front cover R is shut and it looks into the space between Container stacker 2

and Container stacker 1 from a front side, the height of the Frame’s projection of
Container stacker and the Guide plate U’s projection is the same.

[Note] As for the way of opening front cover L, refer to the item 3.3.

M4x12 screws

Container stacker 1

M4x12 screws

Container stacker 2

Frame projection part

Stacker frame

Leveling bolt

Guide plate U

Projection

Same height

Connection part details

Level Meter

Front cover L

Front cover R
