Preparation for Installation 4-11
II
L
00
[FS-108R] (RoHS Compliance Unit)

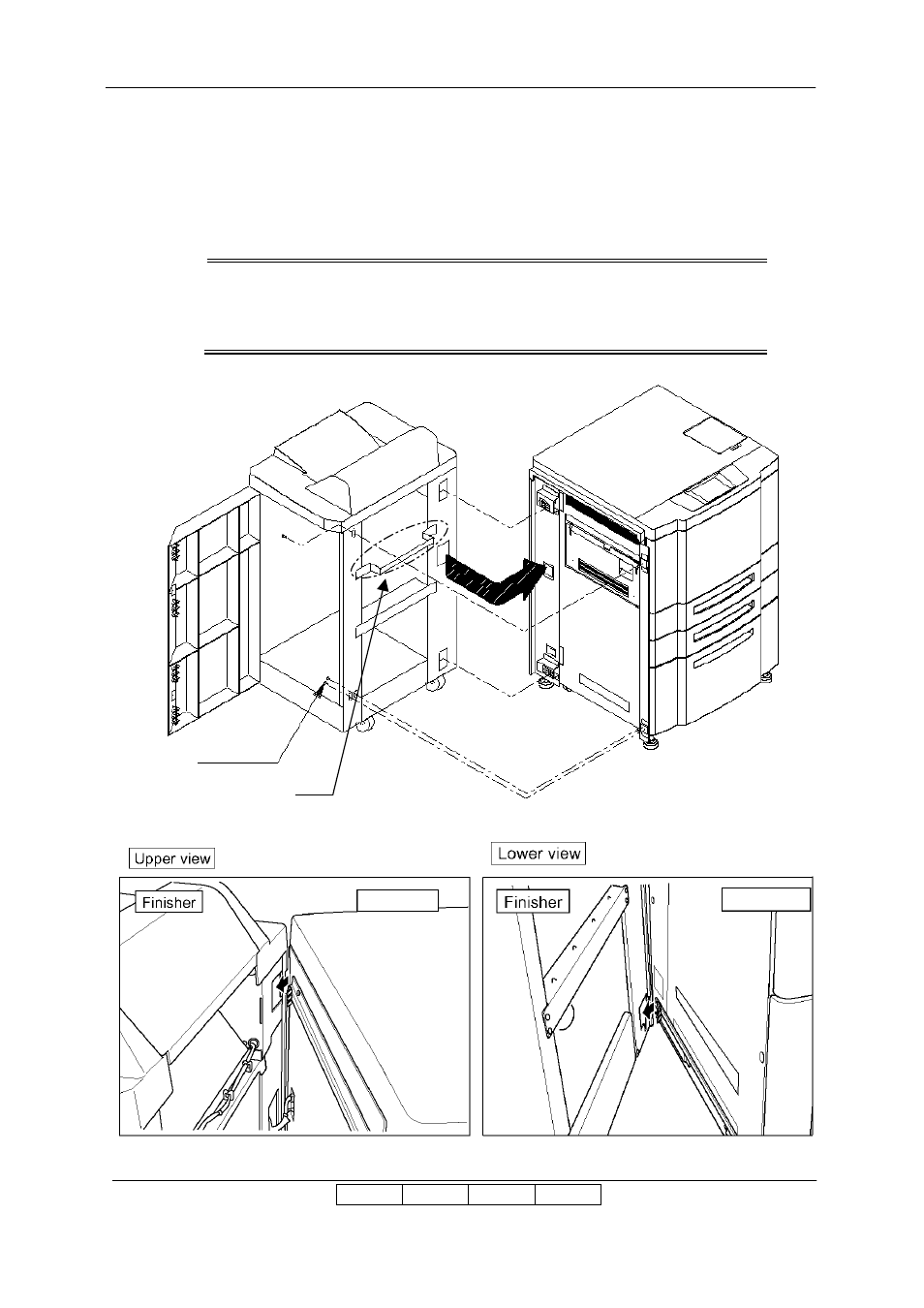

13) Install the Finisher to the Printer.
(4) Fit the hooks on the main body installation plates (upper and lower) into the upper and
lower holes on the Finisher as illustrated below, then lock them by pushing the Finisher
to the back.
CAUTION
When installing the Finisher, don’t hit following “A” part to the Printer.
Confirm the SB cover opens and shuts smoothly after attaching.
Printer
Printer
A
M4x6 TP
(3 Places)
II
L
01
