Preparation for Installation 4-37
II L 00
4.3.3 Connection of the Container Stacker 2 and Finisher / Finisher SR5000
[FS-104H] (No RoHS Compliance Unit)

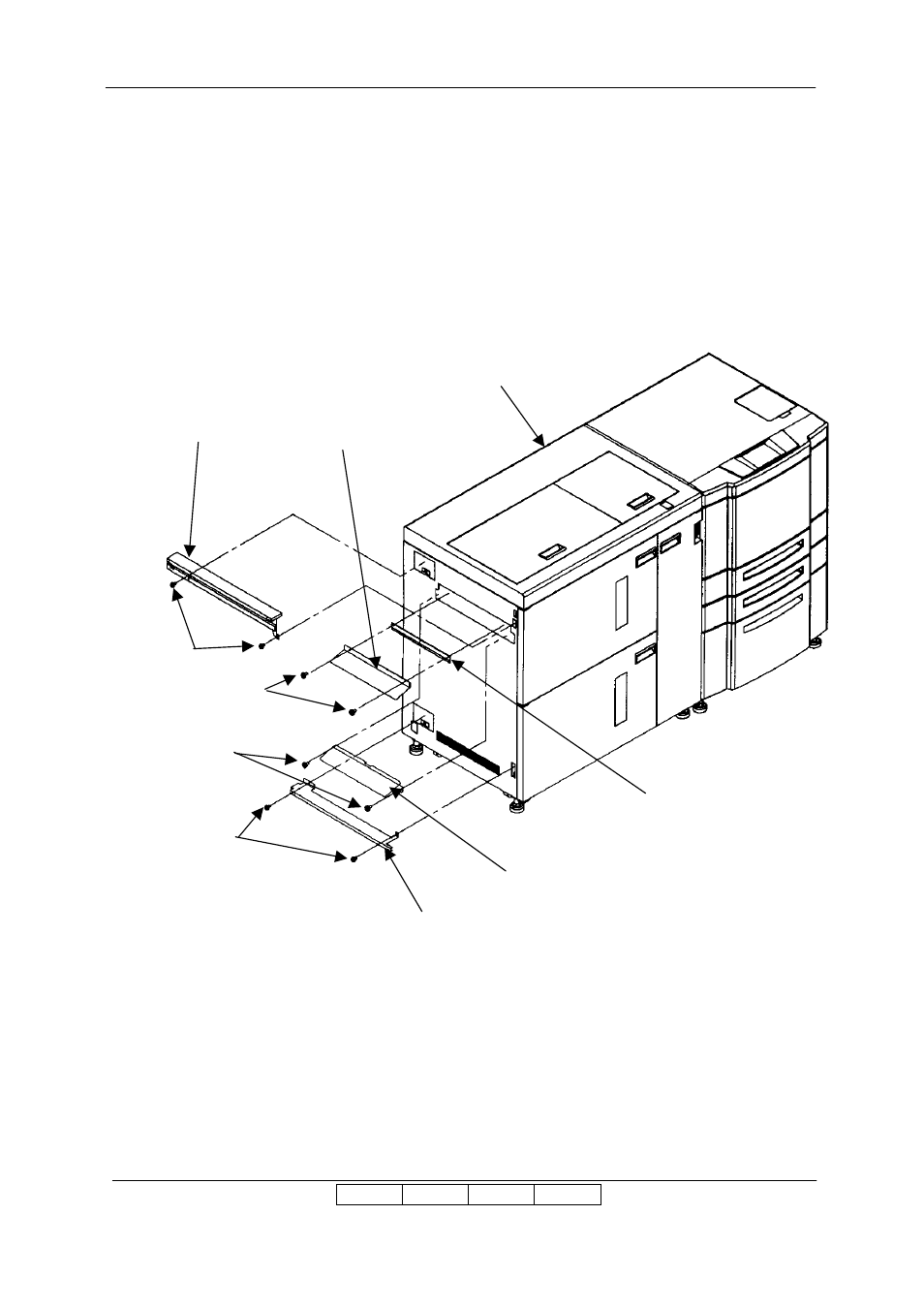

1) Remove the two M3 screws and the discharging brush from the Container Stacker 2.
2) Install the Guide plate (G) with the Static electricity eliminator (“FRONT” letter is surface.)
by using the two M3 Screws. (Be careful that the hair of the Static electricity eliminator
does not fall.)
3) Install the guide plate (H), connecting stay and main MT plate.
4) Remove the rear covers from the Engine, Container Stacker 2 and Finisher.
M4 screws
M3 screws
with washer
M3 screws
M4 screws
Main MT plate
Guide plate (H)
Static electricity eliminator
Connecting stay Guide plate (G)
Container stacker 2
