Ricoh 70E User Manual
Page 21
Unpacking 2-8
II
L
00
[FS-108R] (RoHS Compliance Unit)

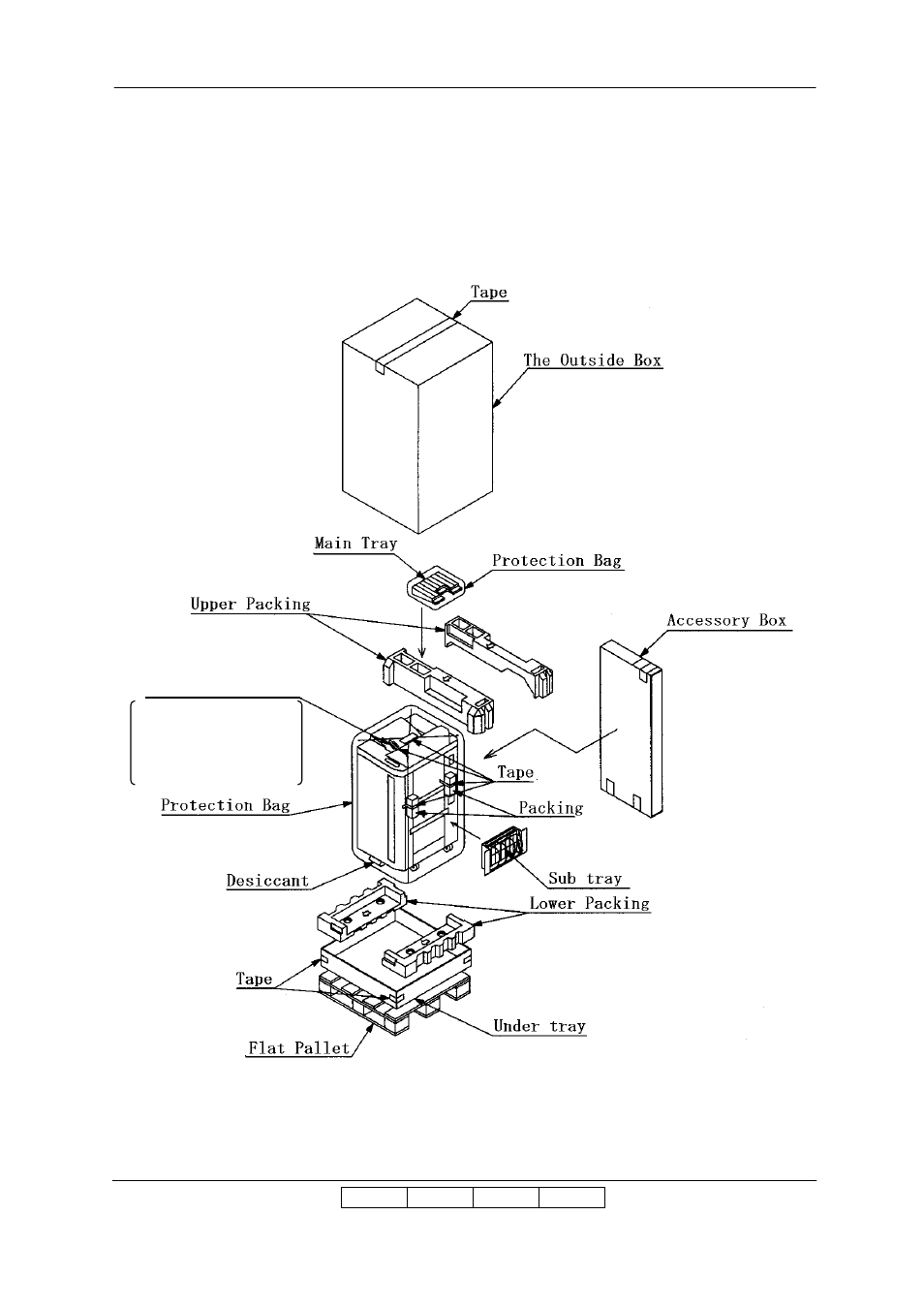

1) Cut the V Bands and remove the Outside Box.
2) Remove the two Upper packing, Accessory Box.
3) Remove the Tape of Protection Bag and take down the Protection Bag.
4) Carefully lift the Finisher by two persons and stand on Floor.
Main Fixed Plate/1 : 2
M4 Truss Screw
: 3
M4 TP Screw
: 9
M3 SEMS Screw : 2
Screws Packing
Booklet Tray (Booklet model only)
II
L
01
