Preparation for Installation 4-12
II
L
00
CAUTION

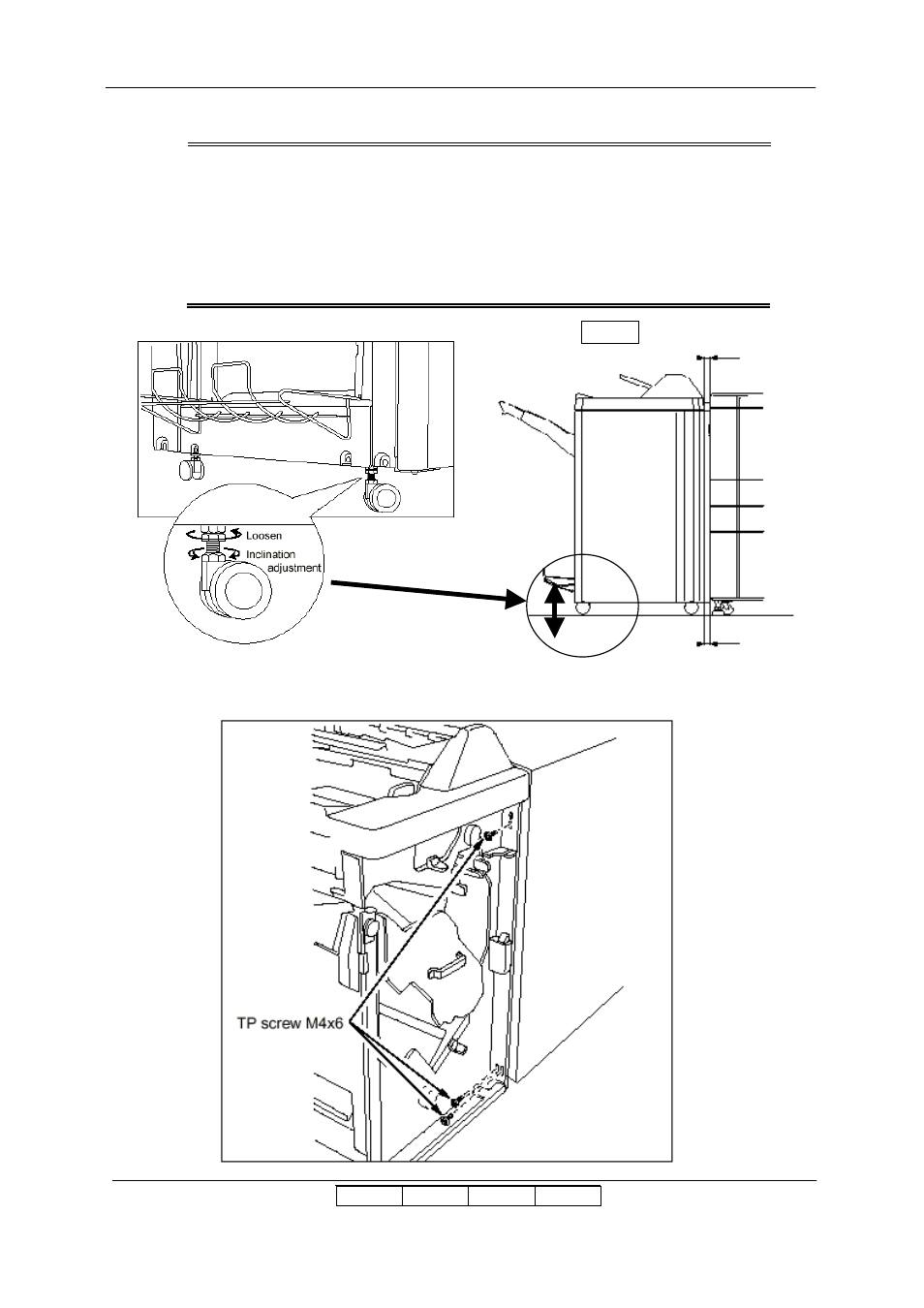

If the gap between the Finisher and Printer is not equal from the top through the
bottom, adjust it by the height of the front and rear casters on the paper exit side of
the Finisher.
The jack of the printer is adjusted when the SB cover doesn't open and shut
smoothly, the printer is lowered, and the SB cover opens and shuts smoothly.
(5)
Fix the Finisher to the Printer (front side only).
(TP screw M4x6: 3)
A
B
A=B
II
L
01
