Preparation for Installation 3-8

II

L

00

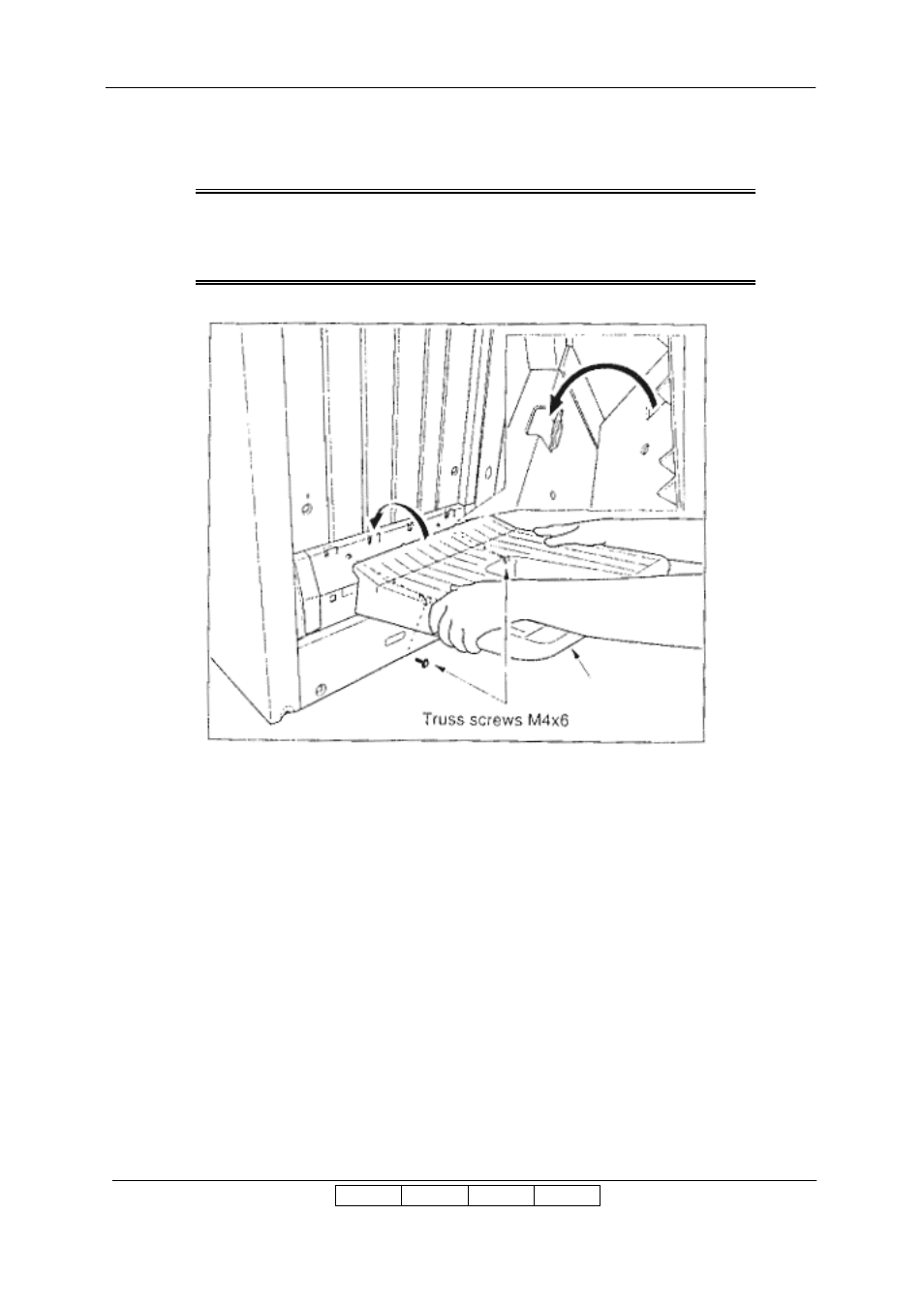

8) Install the Shift Tray to the up-down portion (paper exit side) of Finisher.

(Truss screw M4x6: 2)

CAUTION

When installing the Shift tray, fit the four auxiliary fittings to the guide holes of the
Main tray before fixing screws.

Shift Tray
