Preparation for Installation 4-13
II L 00

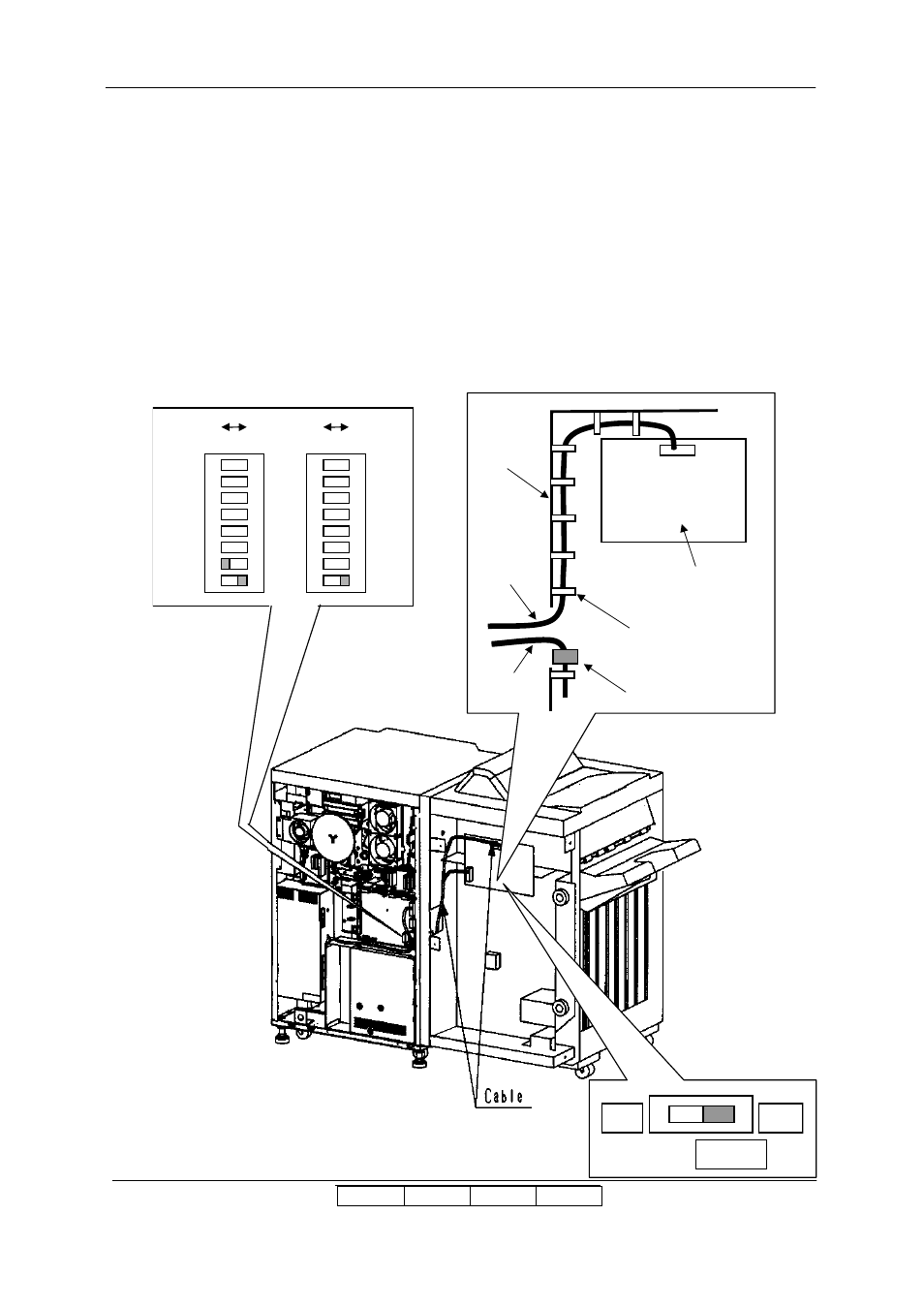

14) Connect the connectors of the Printer with the Finisher.
(1) When connecting the connectors of printer with the Finisher, pass the two cables
through the Hole of the Printer and Finisher.
(2) Connect the I/F Cable to the CN7 connector on the Print Circuit Board through the
cable clamps with other cables like following figure.
(3) Connect the Power Cable to the Relay Connector like following figure.
(4) Switch on No.8 of SW1 of on the Print Circuit Board of the Engine.
(5) Switch on No.8 of SW2 on the Print Circuit Board of the Printer.
(6) Switch off No.7 of SW2 on the Print Circuit Board of the Printer.
(7) Turn on the “L” of the SW1 mounted on the P/K of the Standard Finisher(FS-108R)
(8) Install the Rear Covers of the Printer and Finisher.
II L 01
8
7
6
5
4
2
3
1
M
K
K
O
N
O
F
F
O
F
F
S
W
1
8
7
6
5
4
2
3
1
M
K
K
O
N
O
F
F
O
F
F
S
W
2
Cable Cramp
Flame
I/F
Cable
CN7
Relay Connector
Print Circuit Board
Power
Cable
H L
SW1
