Preparation for Installation 3-13
II L 00
4) Confirm the Paper Guide position of the High Capacity Hopper. (LT or A4)
Usually, Paper Guide position is set in “LT” at the shipment. When the customer wish to use
the High Capacity Hopper in A4 paper, change the Paper Guide position according to the
following steps.

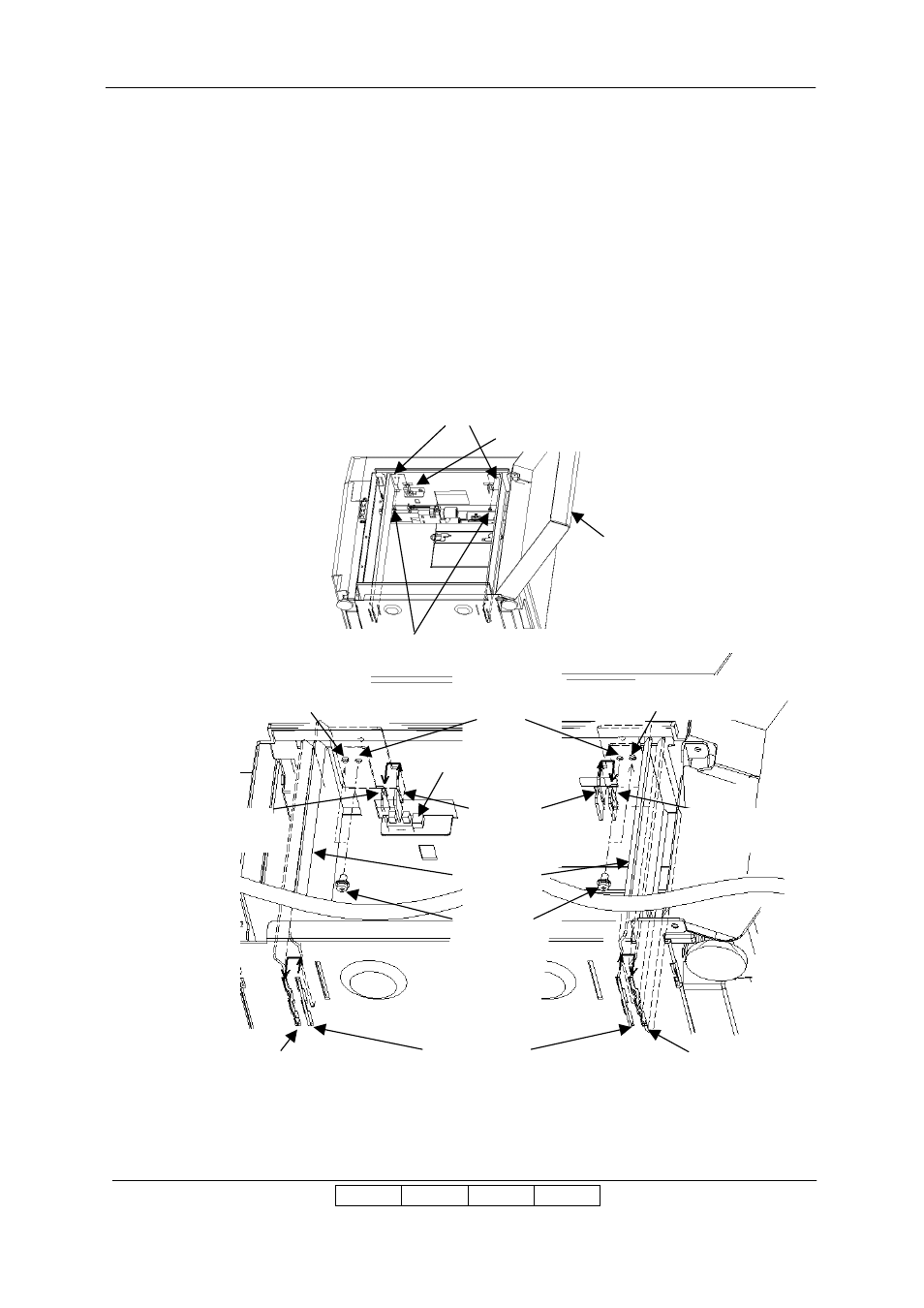

[Change procedure of the Paper Guide Position]
1. Open the Front door, and remove two M4 Screws.
2. Lift up the Paper Guide and move to the outside.
3. Insert the upper and lower of the Paper Guide to a Guide hole for“A4”. At that time, the Paper
Guide is outside of the Size Guide Sensor.
4. Fix the M4 Screw in a Screw hole for “A4”.
M4 Screw
Paper Guide
Size Guide Sensor
Front Door
Lower Guide hole
for “A4”(Outside)
A Screw hole
for “A4” (Outside)
Size Guide Sensor
Lower Guide hole
for “A4”(Outside)
A Screw hole
for “A4” (Outside) A Screw hole
for “LT” (Inside)
Lower Guide hole
for “LT”(Inside)
Paper Guide
M4 Screw
Upper Guide hole
for “LT”(Inside) Upper Guide hole
for “A4”(Outside) Upper Guide hole
for “A4”(Outside)
