Preparation for Installation 4-25

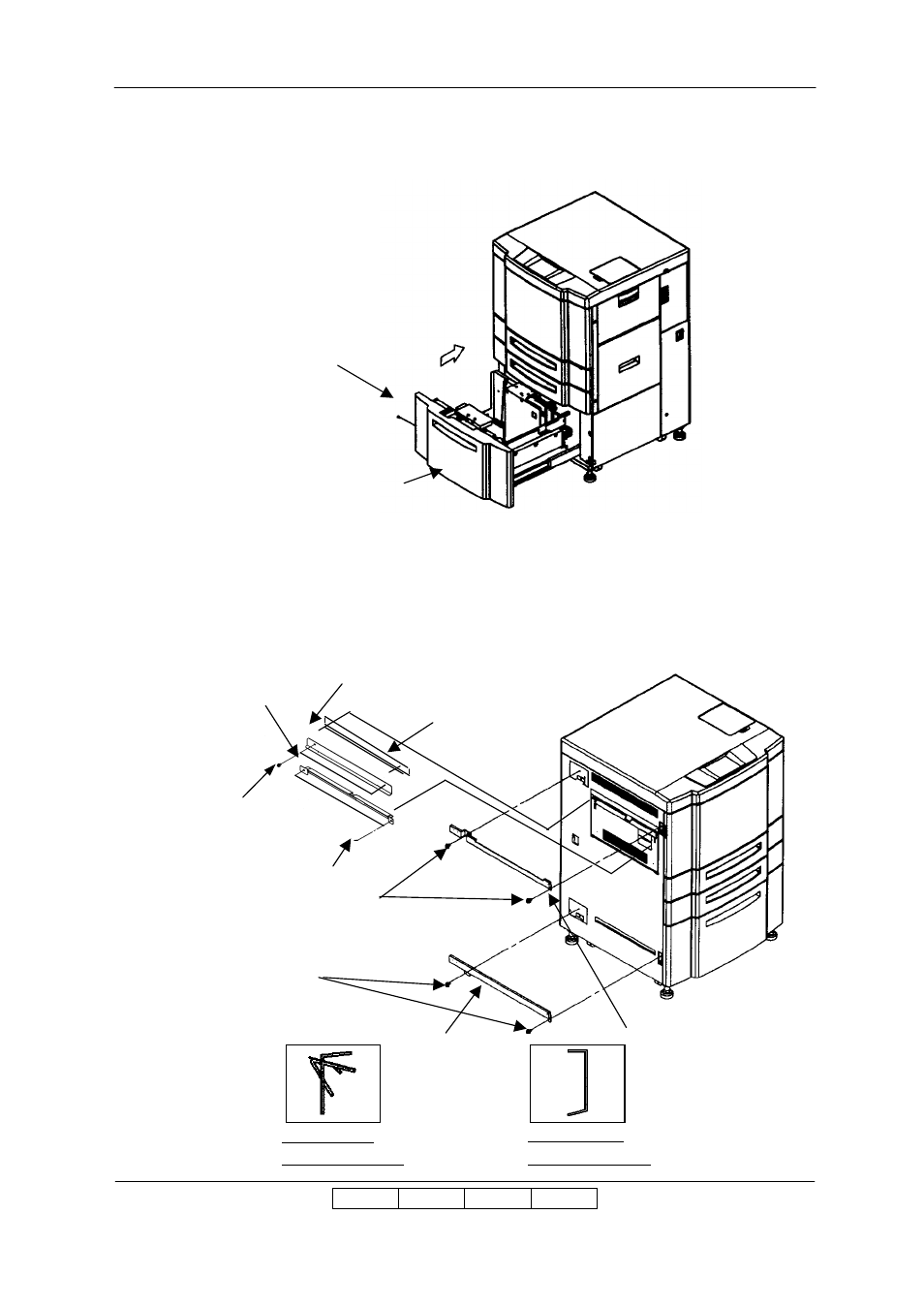

5) Install the 2000 Sheets Hopper.

6) Remove the two M3x8 Screws and Electrostatic Eraser from the Engine.
7) Install the Guide plate (U) with the Electrostatic Eraser (“FRONT” letter is surface.) by using

the two M3x8 Screws. (Be careful that the hair of the Electrostatic Eraser does not fall.)

8) Install the Guide plate (L) by using the two M3x8 Screws with washer.
9) Install the Joint Bracket (U) and Joint Bracket (L) by using the two M4x8 Screws.

M4x8 Screw

Joint bracket (L)

Joint bracket (U)

M3x8 Screw with washer

Guide plate (U)

Guide plate (L)

Static electricity eliminator

M3x8 Screw

M4 Screw

2000 Sheets Hopper

Guide Plate (L)

view from front side.

Guide Plate (U)

view from front side.
