Ricoh 70E User Manual
Page 89
Preparation for Installation 4-41
II
L
00

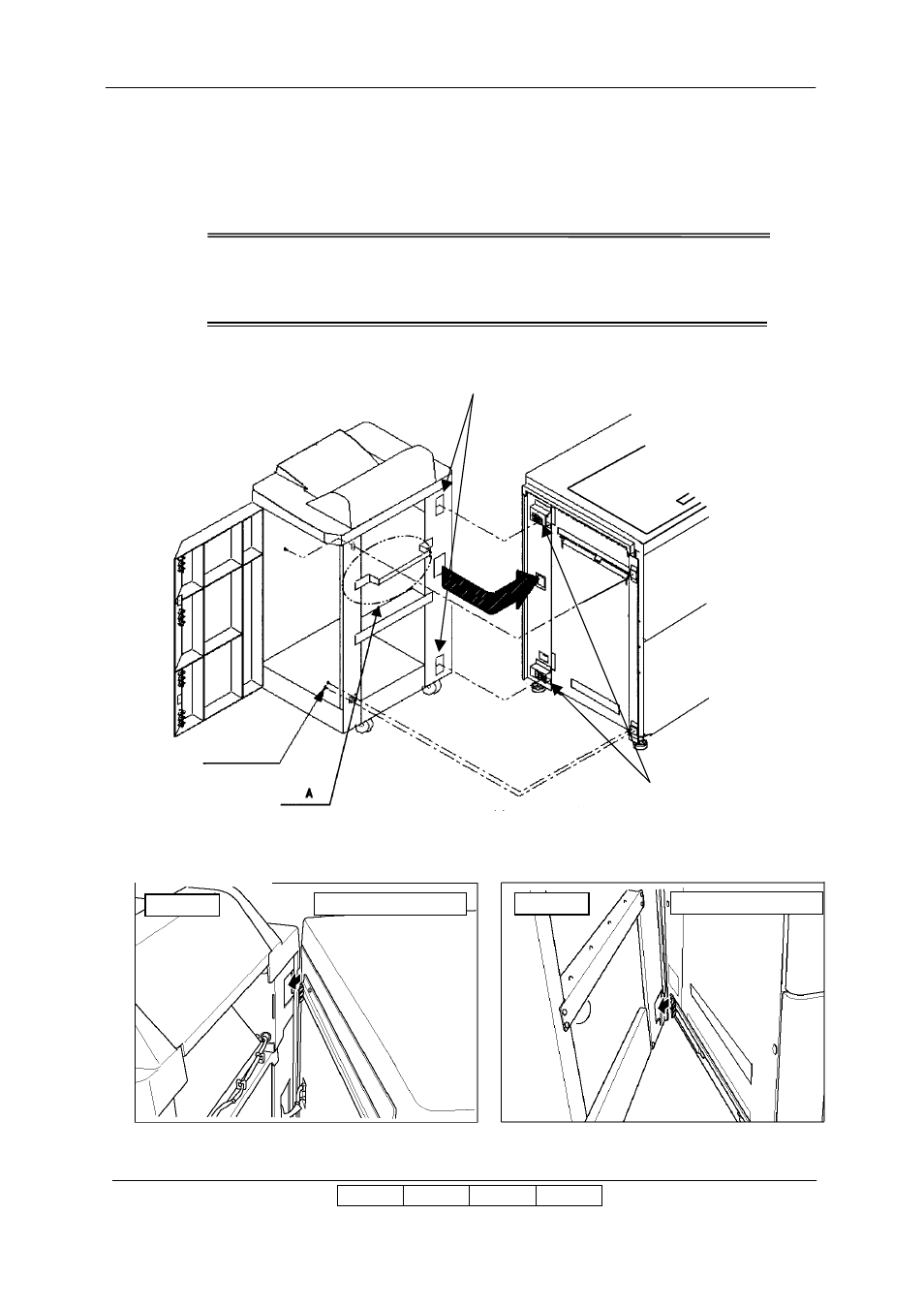

12) Install the Finisher to the Container Stacker
(1) Fit the hooks on the Container Stacker installation plates (upper and lower) into the
upper and lower holes on the Finisher as illustrated below, then lock them by pushing
the Finisher to the back.
CAUTION
When installing the Finisher, don’t hit following “A” part to the Printer.
Confirm the SB cover opens and shuts smoothly after attaching.
Holes
Hooks
M4x6 screws
3 Places
Upper view
Lower view
Finisher
Container Stacker 2
Finisher
Container Stacker 2
II
L
01
