Preparation for Installation 4-39
II L 00

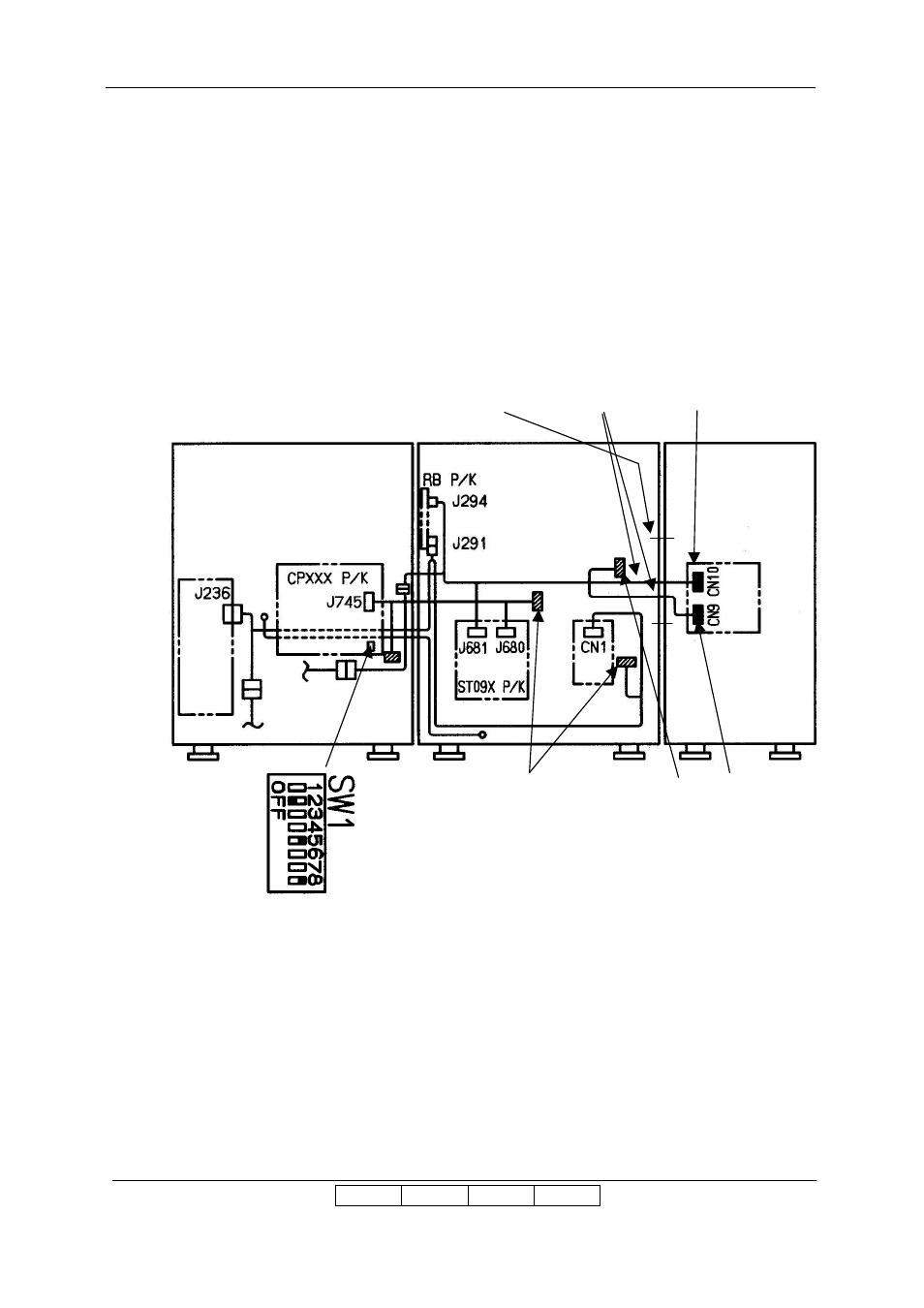

6) Connect the FNS IF cable (4 pin white connector) coming from the Container Stacker 2 to the
4 pin white connector in the Finisher (Connection 1 on the below figure).
7) Connect the FNS IF cable (20 pin black connector) coming from the Container Stacker 2 to
the CN7 connector on the Finisher main P/K (Connection 2 on the below figure).
8) Turn on the No. 5 and 8 and turn off the No. 2 of the SW1 mounted on the CPXXX P/K of the
Engine.
[Note] Put the cable through the opening “A” of the Container Stacker 2 for connection.
9) Install the Rear Covers of the Printer, Container Stacker 2 and Finisher.
Opening “A”
Printer Container Stacker 2
(W/ Through path)
Standard Finisher
AF cable
Connection 2
(20 pin black)
Connection 1
(4 pin white) Disconnection 1
(4 pin white) Disconnection 2
(2 pin white)
