Chapter 5 Configuring remote network monitoring (RMON)
95
Using Web-based Management for the BayStack 380-24F Gigabit Switch
Viewing RMON Ethernet statistics in a pie chart format
To view RMON Ethernet statistics in a pie chart format:
1
From the main menu, choose Statistics > RMON Ethernet.
The RMON Ethernet page opens (
).
2
In the port row of your choice, click the pie chart icon.
The RMON Ethernet: Chart page is displayed in a pie chart format

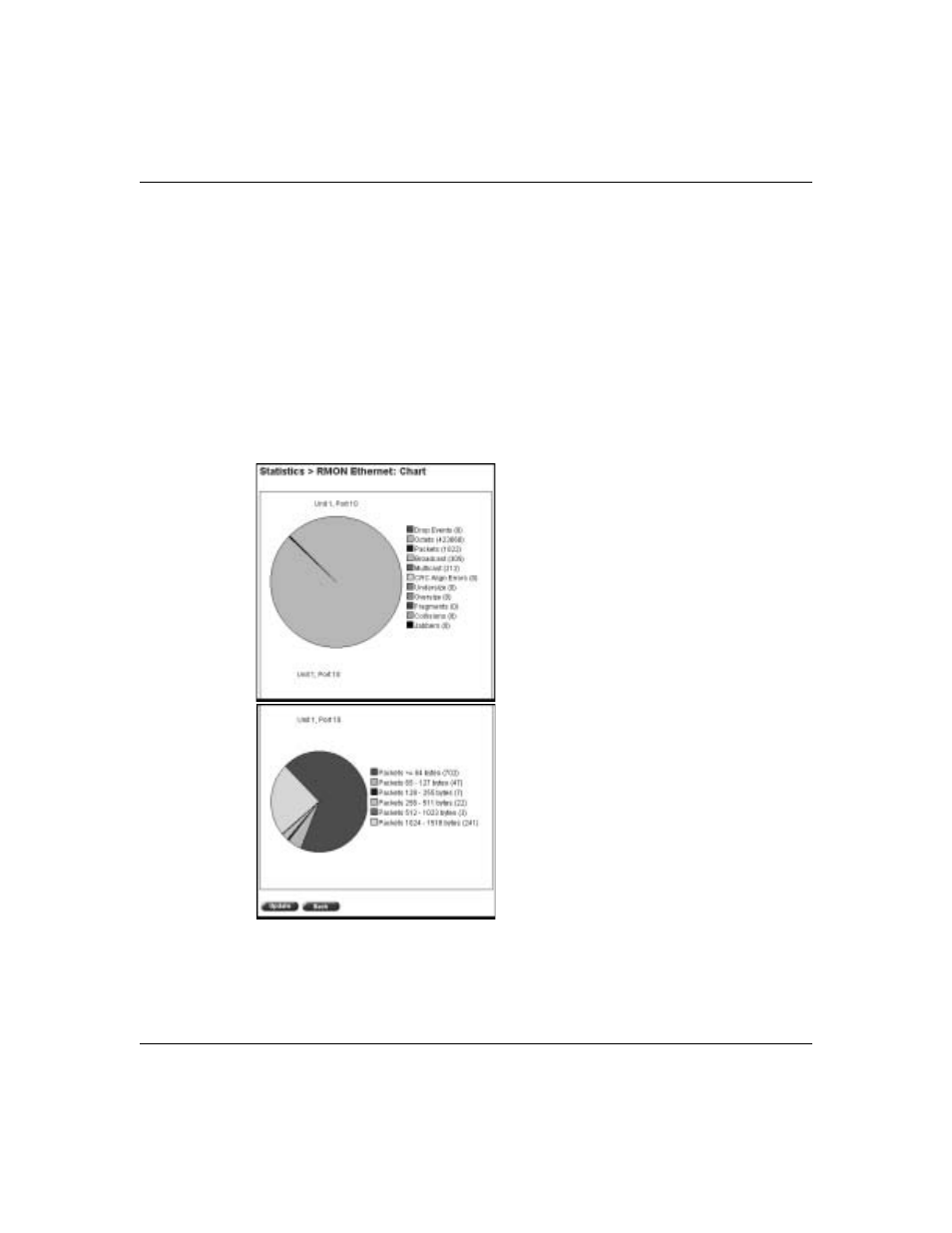

Figure 36 RMON Ethernet: Chart in a pie chart format
3
To refresh statistical information, click Update, or click Back to return to the
Ethernet Statistics page.
