Setting Up Your System Hardware

2 - 3

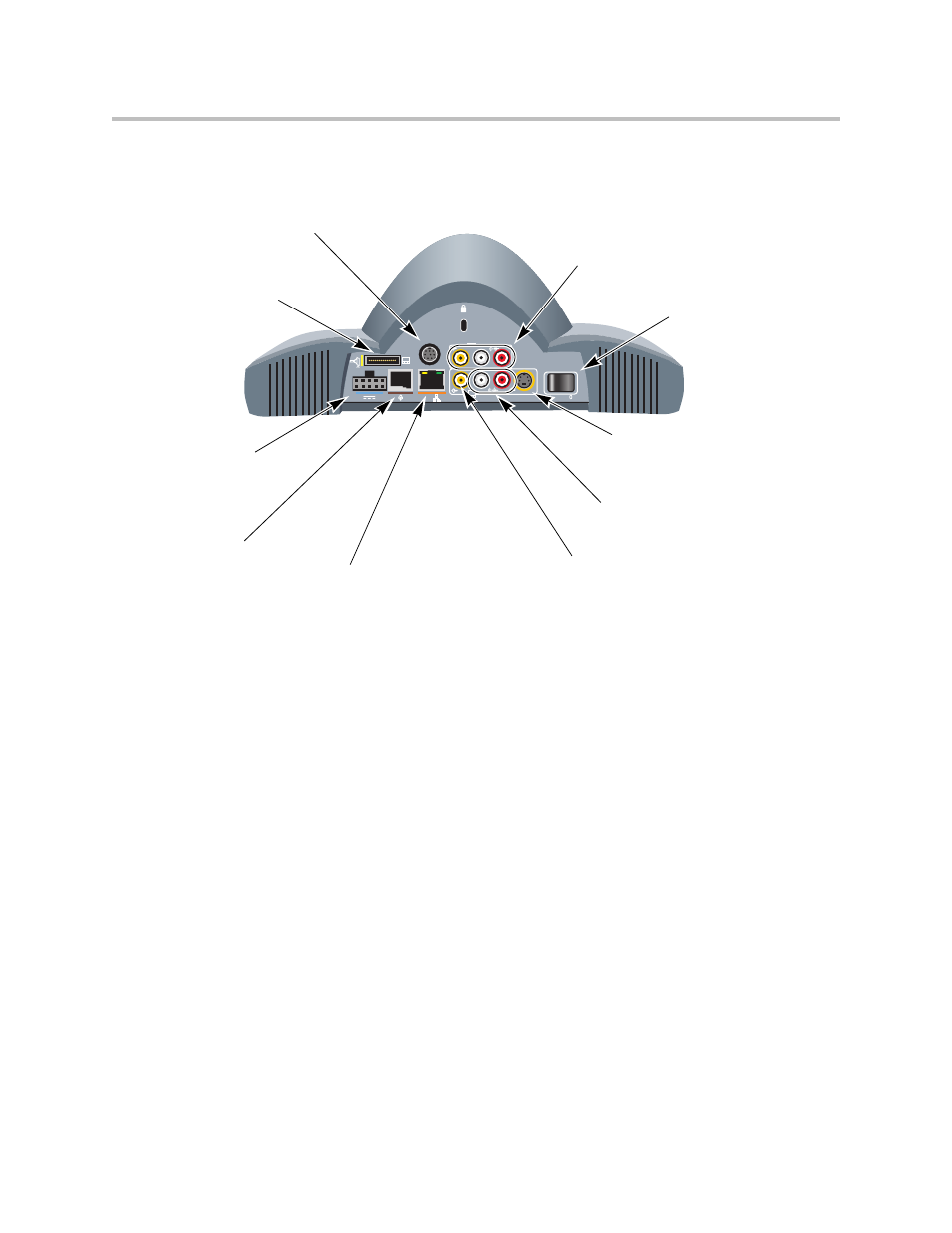

VSX 6000 Back Panel

0101

VGA

LAN

2

1

3

Power connector

For power supply

LAN port

For IP or SIP calls,

People+Content IP,

and VSX Web

Conference link

For Polycom microphone,

SoundStation VTX 1000, or

Visual Concert VSX

Additional display connector

For additional display adapter to

connect a monitor or projector

Power switch

Audio output from system

For VCR/DVD to record call

audio, or for external speaker

system

Composite video output

from system

For VCR/DVD to record

call video, or for

composite TV monitor

VCR/DVD input to system

For VCR/DVD to play

content into calls

S-Video output from system

For main monitor

RS-232 serial port

For RS-232 device
