Chapter 6 Fanfold Paper Jams
200
CAUTION The transfer charger must be in the down position to avoid
scratching the drum
3. Rotate the transfer elevator drive shaft counterclockwise.
Watch the charger movement:
a. If the charger starts to move up, it is already in the down
position.
b. If the charger starts to move down, continue to rotate the
drive shaft until the charger reaches the fully down position.

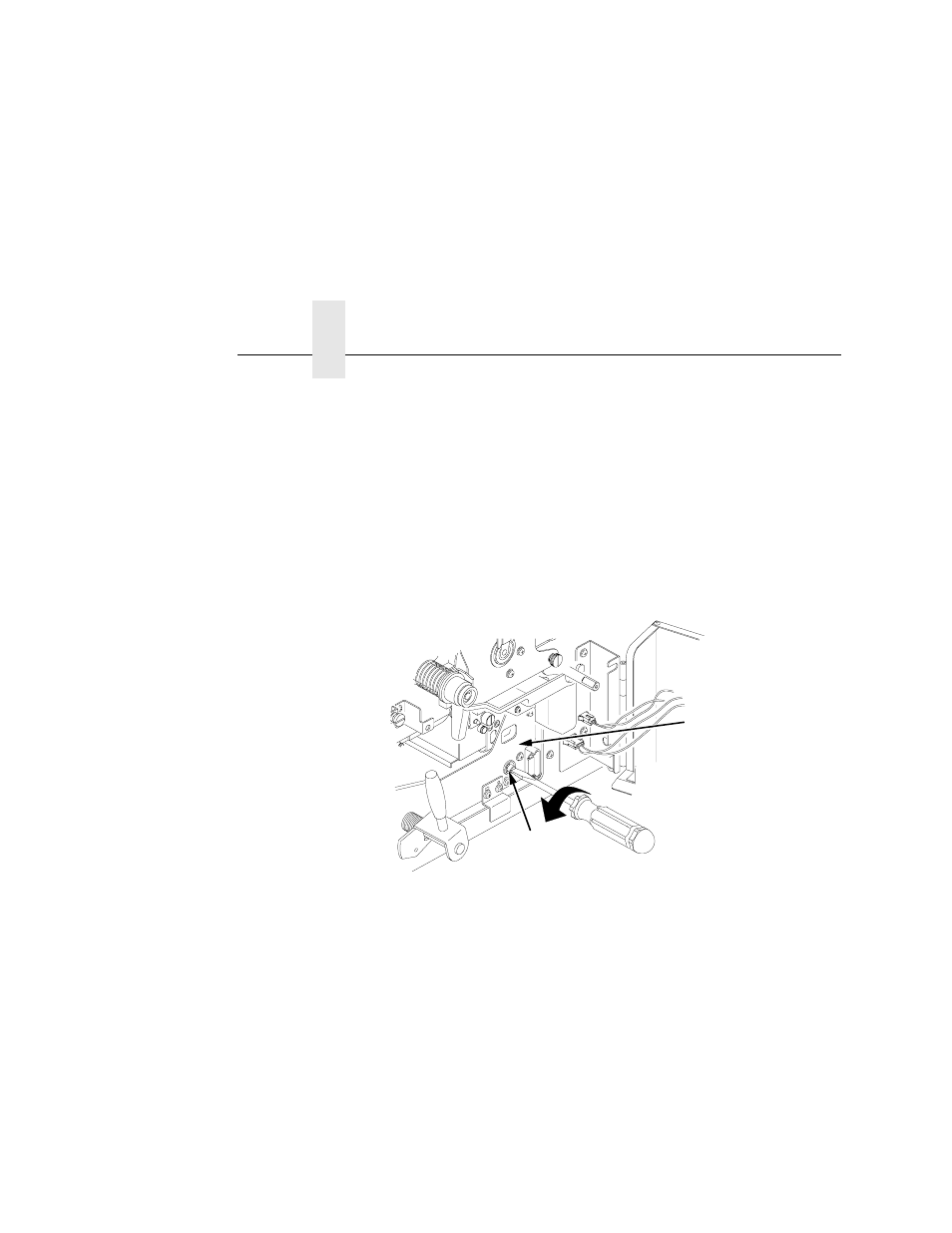

Legend:
1) Transfer Charger
2) Transfer Elevator Drive Shaft
2
1
