Installing The Photoreceptor Drum

135

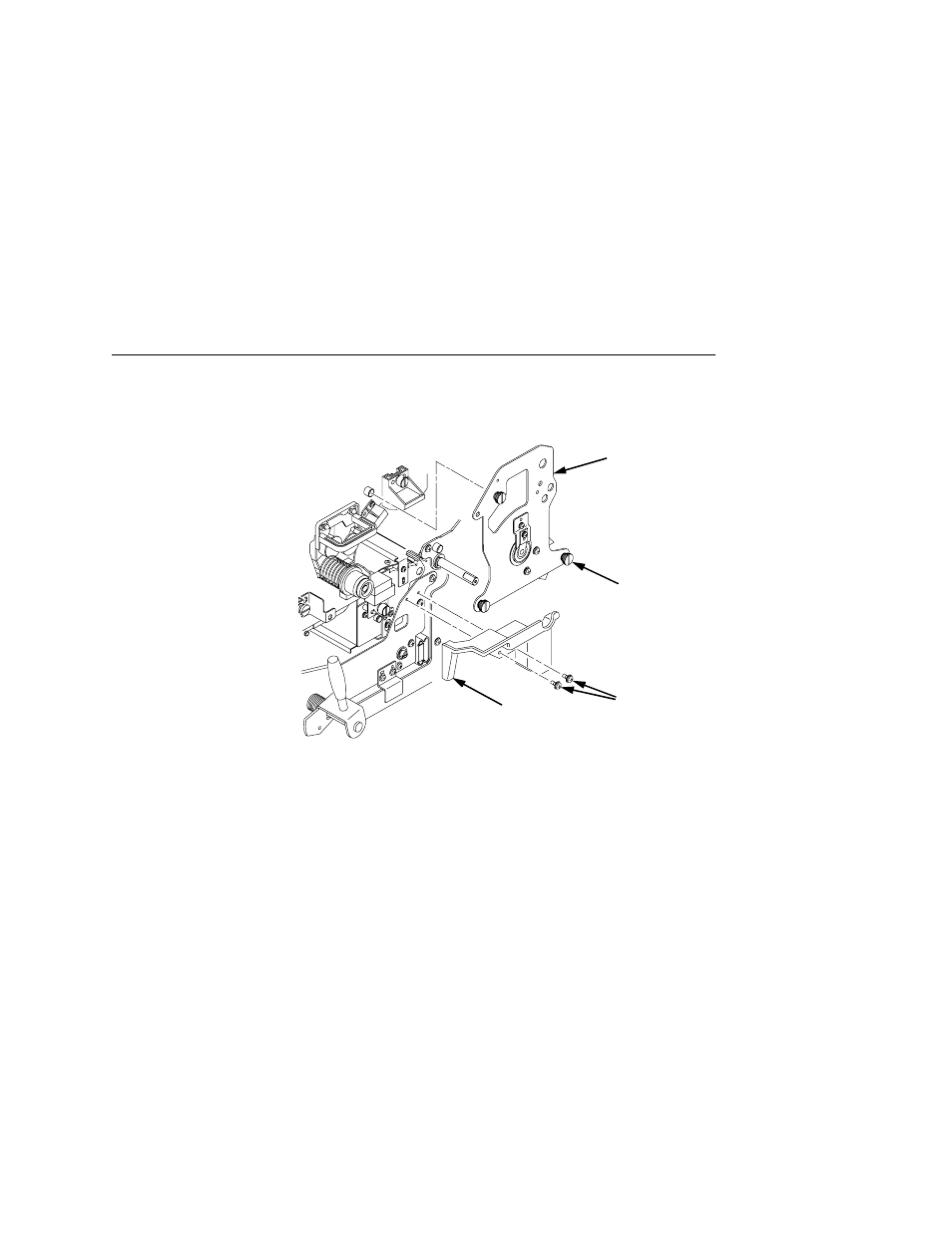

11. Loosen the three thumbscrews securing the drum plate and

remove the drum plate.

Legend:

1)

Drum Plate

2)

Thumbscrews (3)

3)

Screws (2)

4)

Lower Inner Cover

12. Remove the two screws on the lower inner cover. Then remove

the cover.

2

1

3

4
