1) positioning pin, 2) lever, 3) developing roller knob – Printronix L5035 User Manual
Page 141
Developing Unit Installation
141
3.

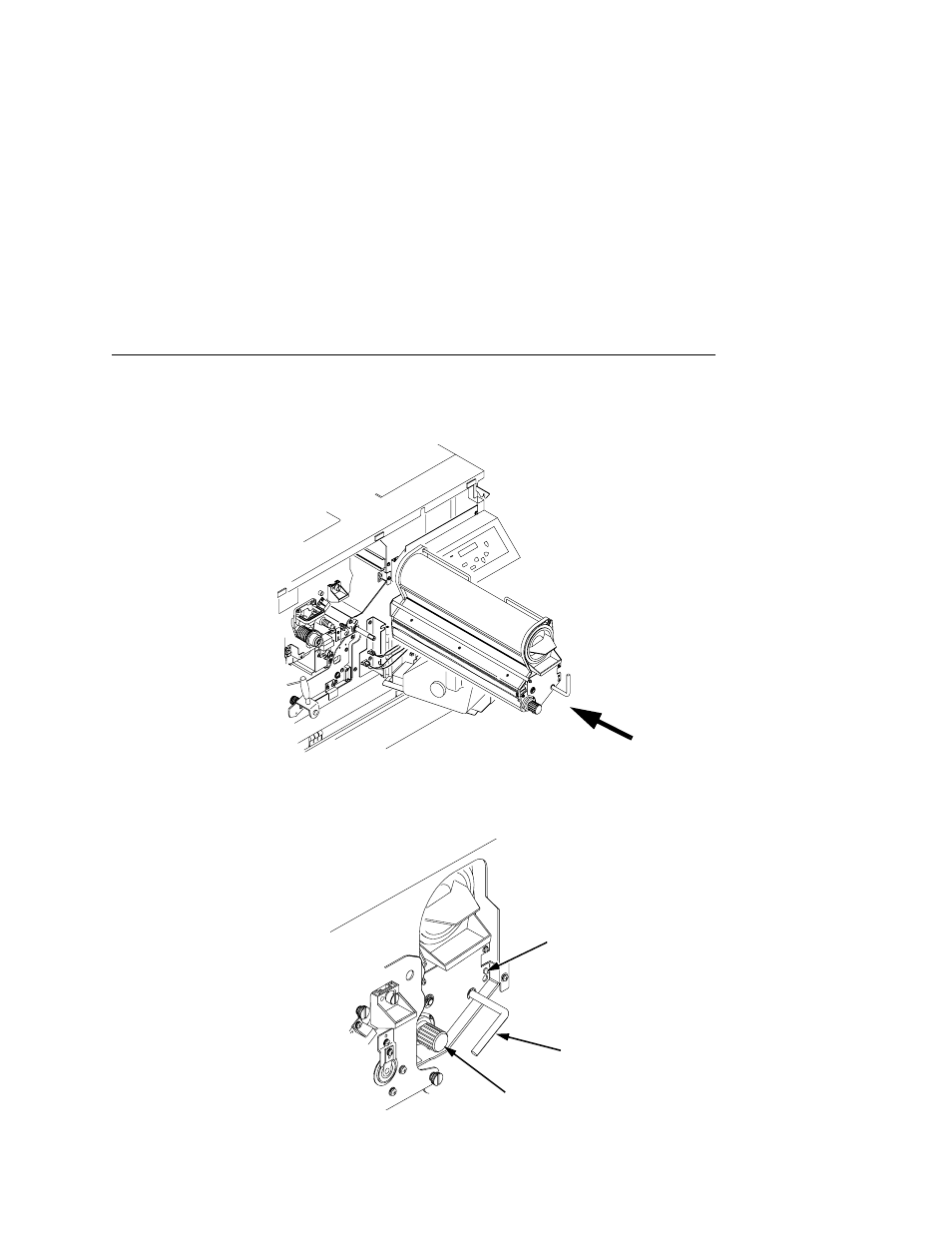

Rotate the hanger to the right so that it rests against the
developing unit, and push the developing unit in.
4.
Rotate the developing roller knob counterclockwise until the
unit drops into its final resting position. The positioning pin
should protrude through the main body of the developing unit.
Legend:
1)
Positioning Pin
2)
Lever
3)
Developing Roller Knob
1
2
3
