Chapter 5

General Cleaning

168

CAUTION

The transfer charger must be in the down position to avoid
scratching the drum. Failure to perform steps 9 and 10 will
damage the drum.

9.

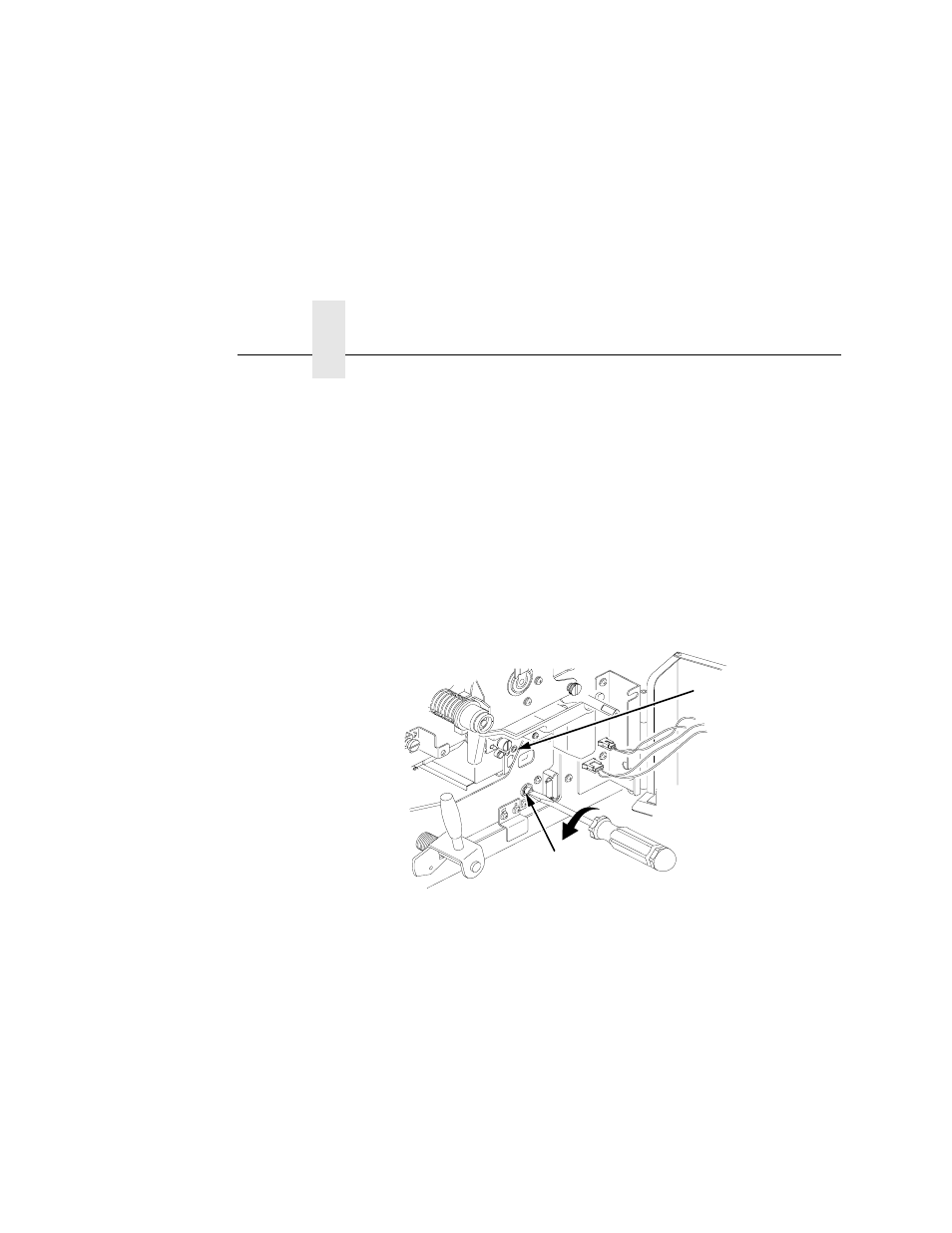

Rotate the transfer elevator drive shaft counterclockwise.
Watch the charger movement:

a.

If the charger starts to move up, it is already in the down
position.

b.

If the charger starts to move down, continue to rotate the
drive shaft until the charger reaches the complete down
position.

Legend:

1)

Transfer Charger

2)

Transfer Elevator Drive Shaft

10. Lower the transport unit by turning down on the green lever on

the transport unit to the left.

11. Pull the transport unit toward you until it stops.

2

1
