Caution, 1) thumbscrews (3), 2) drum plate – Printronix L5035 User Manual
Page 191: 3) cleaning unit handle
Cleaning
191
5.
Loosen the three thumbscrews securing the drum plate and
remove the drum plate.
CAUTION
Do not turn the cleaning unit upside down, or toner might spill.
Do not touch the brush surface with your hand.

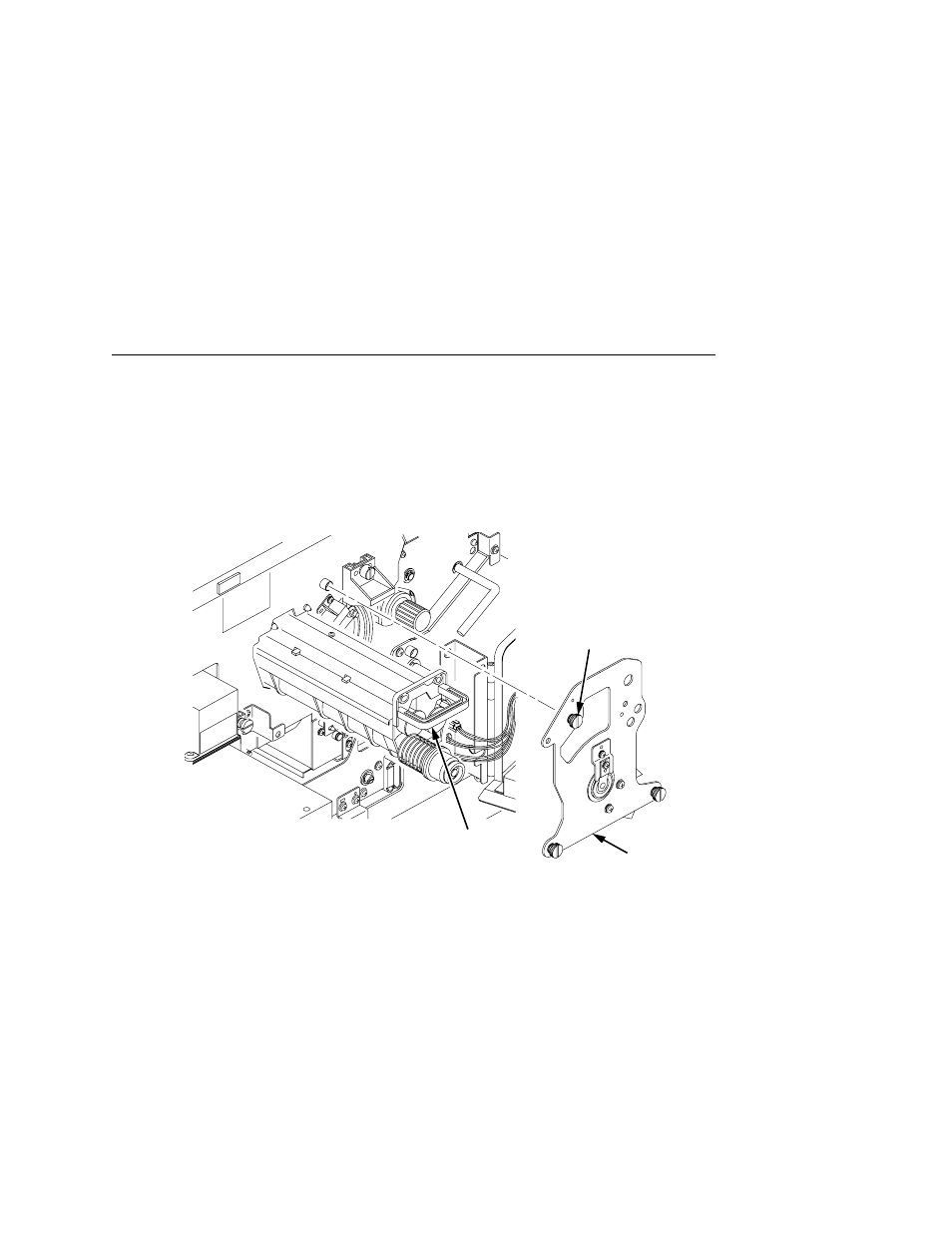

Legend:
1)
Thumbscrews (3)
2)
Drum Plate
3)
Cleaning Unit Handle
6.
Remove the cleaning unit by grasping its handle and pulling it
toward you.
2
1
3
