Chapter 5 General Cleaning
182
11. Remove the two screws that secure the lamp duct filter unit to
the fuser, then remove the lamp duct filter unit and the foam
gasket.

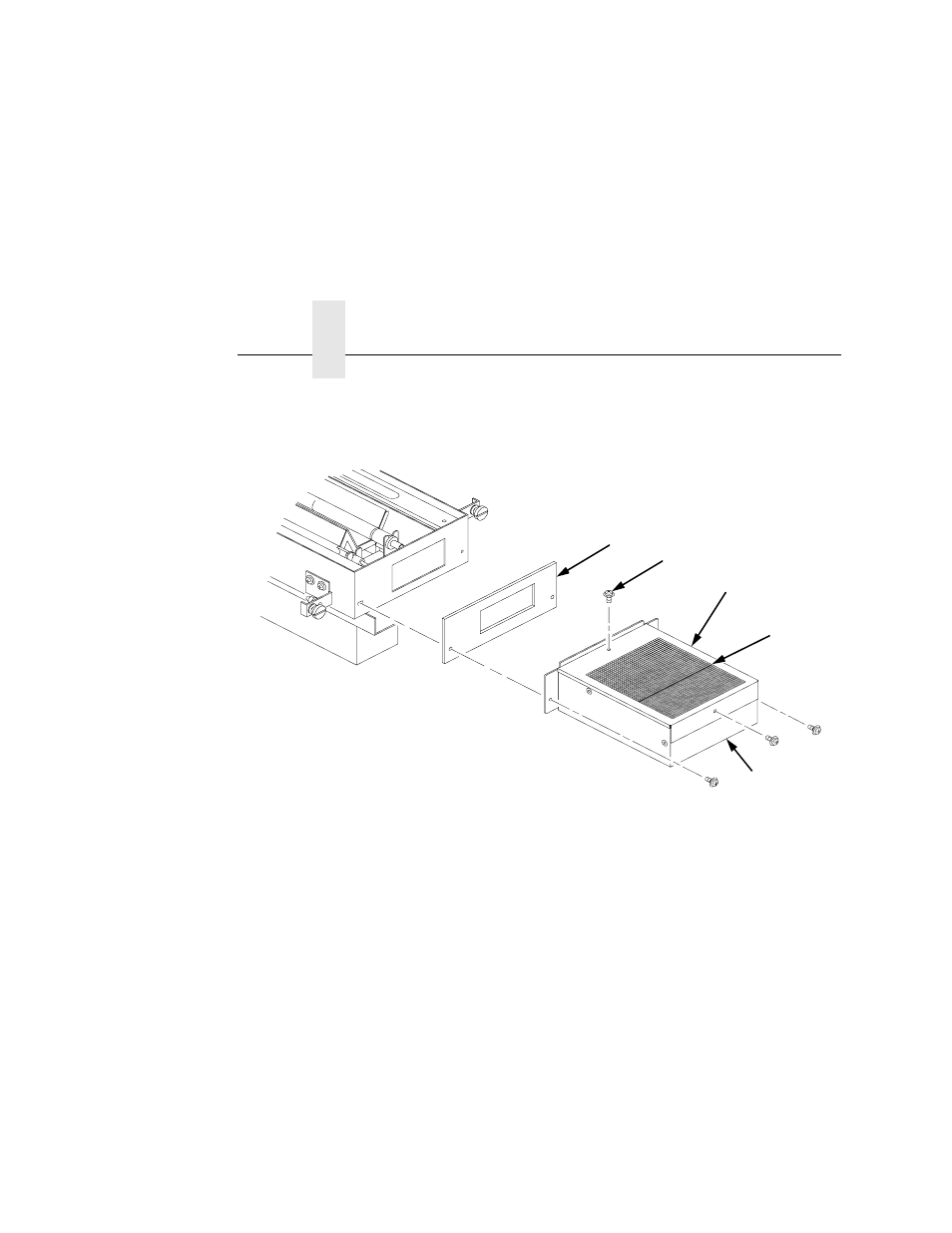

Legend:
1) Foam Gasket
2) Screw (4)
3) Filter Holding Plate
4) Lamp Filter (Air Filter)
5) Lamp Duct Filter Unit
12. Remove the two screws that secure the filter holding plate to
the lamp duct filter unit, then remove the lamp filter.
13. Vacuum the lamp filter, then reinstall it.
14. Vacuum any paper dust from the printer frame.
15. Aligning the guide pins in the screw bracket with the holes in
the side frame of the printer, install the fuser.
1
2
3
4
5
