1) upper inner cover, 2) thumbscrews (3), Caution – Printronix L5035 User Manual
Page 131: 1) lever
Installing The Photoreceptor Drum
131
4.

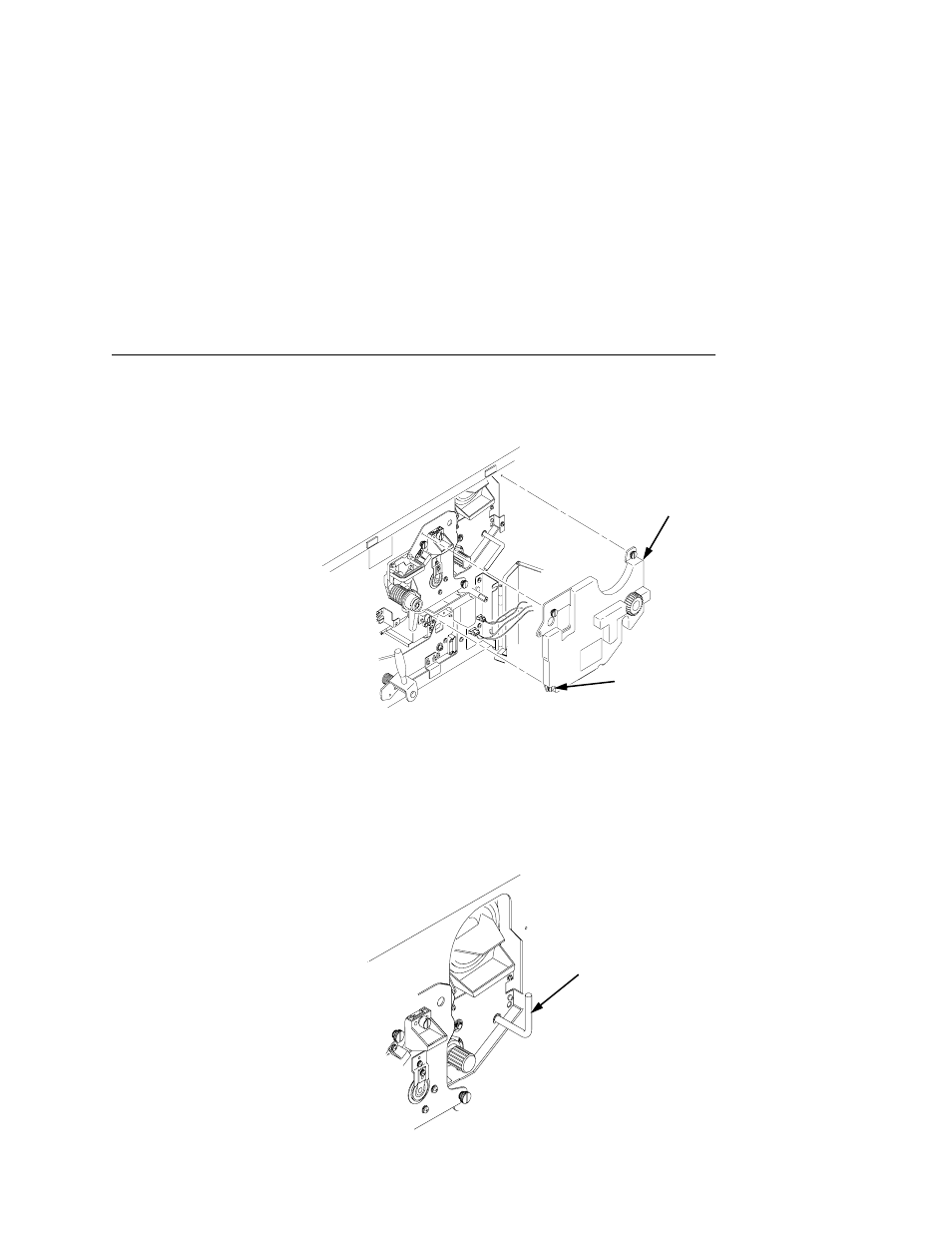

Remove the three thumbscrews on the upper inner cover. Then
remove the cover.
Legend:
1)
Upper Inner Cover
2)
Thumbscrews (3)
CAUTION
Failure to perform Step 5 will damage the photoreceptor drum.
5.
Rotate the developing unit lever fully clockwise so that it is
pointing straight up (to separate the developing unit from the
photoreceptor drum).
Legend:
1)
Lever
1
2
1
