Kodak 500 - Manual (Page 102)

A-61628 December 2011 5-17
Proxy Type: SOCKS

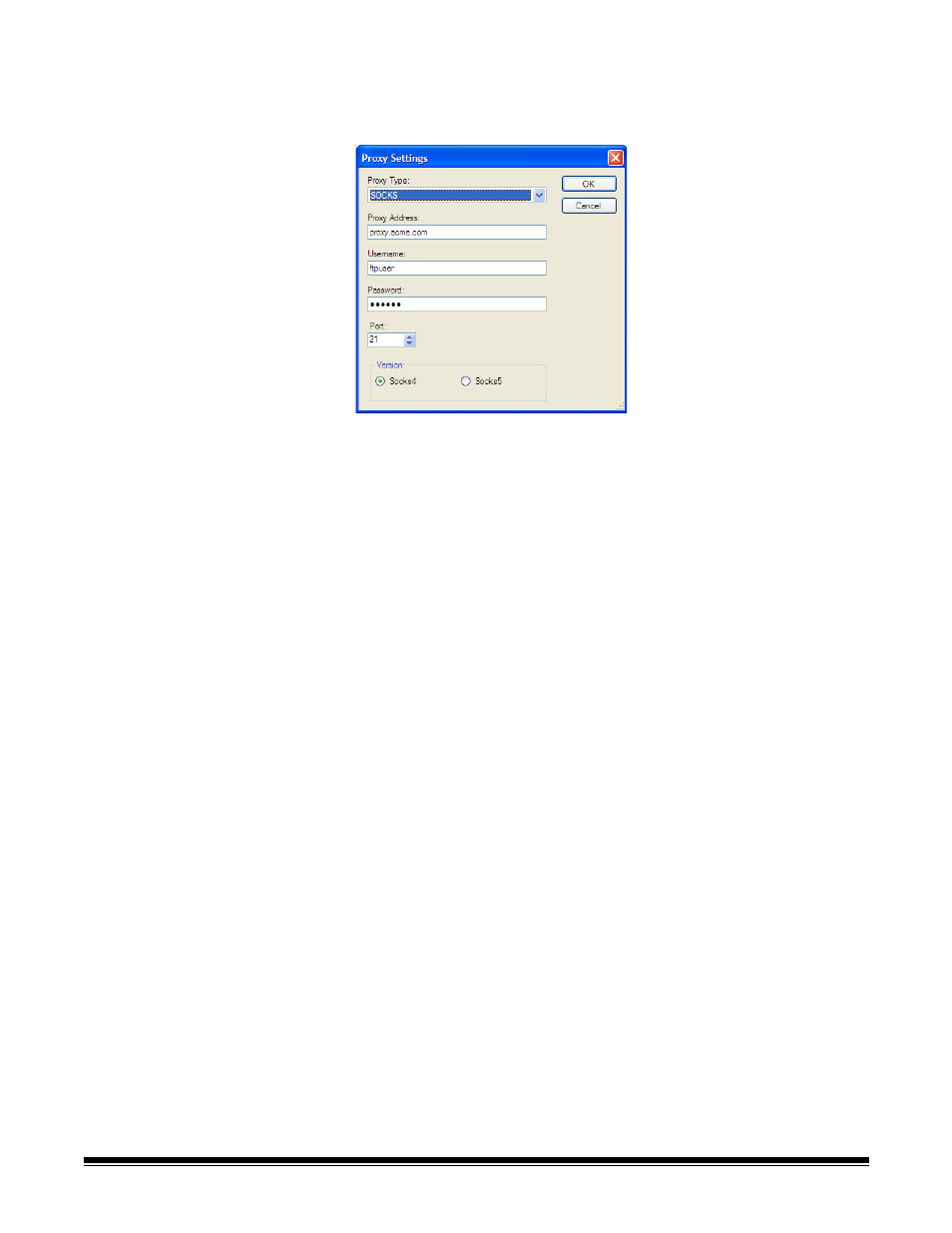

1. Select the Proxy Type. If you selected SOCKS as your Proxy Type,
the following dialog box will be displayed.
2. Enter the Proxy Address in the form of a fully qualified domain
name (e.g., FTP.acme.com) or as an IP address.
3. Enter the Username and Password required to access the proxy
server.
4. If the proxy server is configured to communicate on a port other
than Port 21, change or enter the value using the up and down
arrows or keyboard.
5. Select the appropriate Version for the Proxy server. If you do not
know if you should use SOCKS4 or SOCKS5, consult your
administrator.
6. Click OK.
