2 - 6

VC5090 Vehicle Computer Product Reference Guide

Important Fixing Information

•

A minimum of four fixing positions must be used.

•

All nuts and caps screws must be checked periodically and tightened if required.

•

When installing the vehicle computer, care must be taken to ensure that the mounting bracket footprint is

fully supported. Additional plates may be required to achieve this.

Mounting onto an Over-Head Cross-Beam Example

The diagram below illustrates a typical installation where the vehicle computer is mounted onto a cross-beam.

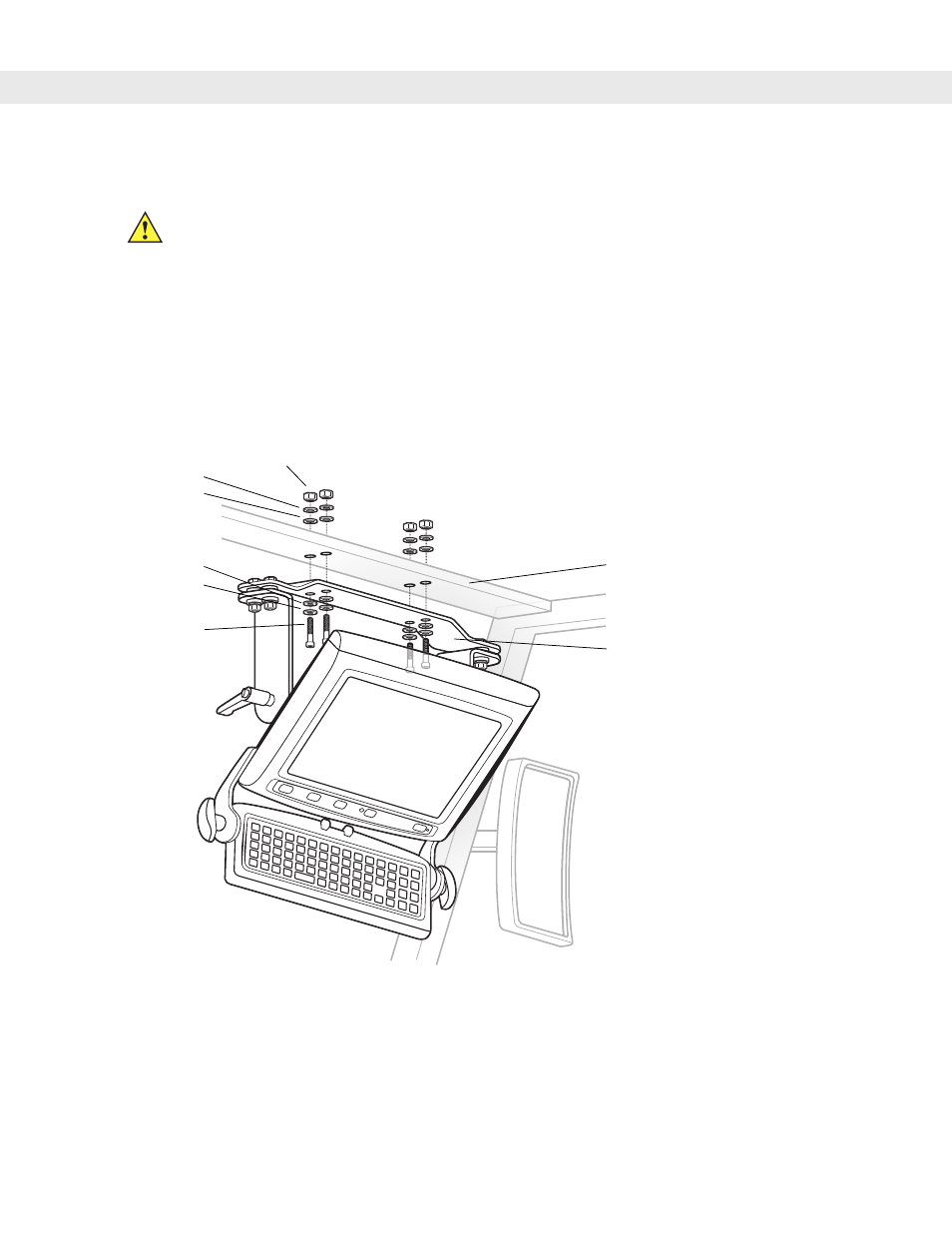

Figure 2-6

Mounting the VC5090 onto an Over-Head Cross-Beam Example

CAUTION

Any modification to supplied mounting bracket could cause failure of the unit and/or mountings.

Nuts

Flat Washers

Cap Screws

Vehicle Cross-Beam

Mounting Bracket

Lock Washers

Flat Washers
