Application Development and Deployment 7 - 15
Before the download starts
Waiting for Data
appears in the
Device Status
field.
16.
On the development computer, click
Load
on the TCM toolbar. The
Load Terminal
window -
Serial
tab
appears.

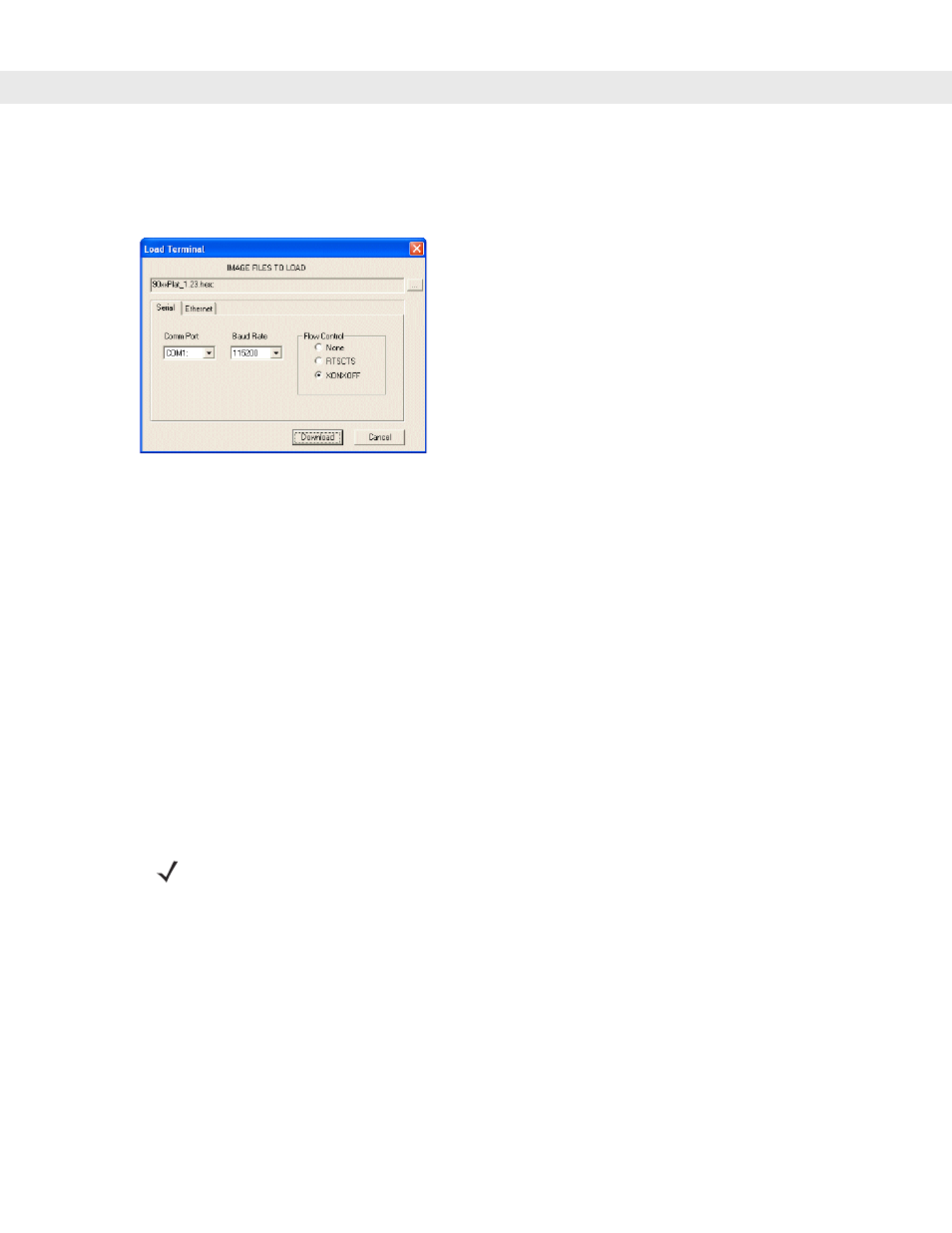

Figure 7-15
Load Terminal Window - Serial and Ethernet Tabs
17.
In the
Image Files To Load
field, select the hex file or files to download.
18.
In the
Comm Port
field, select the port on the vehicle computer that the development computer is
connected to.
19.
In the
Baud Rate
field, select the baud rate. Only available on serial RS232 downloads.
20.
Click
Download
.
21.
During download, the
Downloading
screen on vehicle computer displays the
Device Status
and a progress
bar.
22.
When complete,
Device Status
displays
Result was Success
, or in the case of an error, the cause of the
error.
23.
On completion, press
P2
to return to the IPL menu to select the next partition to download.
24.
To exit IPL, select the
System Reset
item from the IPL menu.
Using SD Card
To load the hex files on to the vehicle computer:
1.
Install the SD card. See Installing a Secure Digital Card on page 2-25
for instructions for installing an SD card.
2.
Place the Main Power switch on top of the VC5090 to the off position.
3.
Press and hold the
Backlight Control
button on the control panel.
4.
Place the Main Power switch on top of the VC5090 to the on position.
5.
Hold the
Backlight Control
button until the vehicle computer resets into IPL mode.
6.
When the
Initial Program Loader
menu appears, release the
Backlight Control
button.
NOTE
If you are using an SD card to load a hex image onto the vehicle computer, you must first copy the files to
the SD card and install the SD card into the memory slot on the back of the vehicle computer. See
Installing a Secure Digital Card on page 2-25
for instructions for installing an SD card.
