ETTING

THE

WITCH

’

IP A

DDRESS

4-13

• MAC Address – The physical layer address for this switch.

Manual Configuration

Web – Click System, System, IP Configuration. Select the VLAN through
which the management station is attached. Enter the IP address, subnet
mask and gateway, then click Apply.

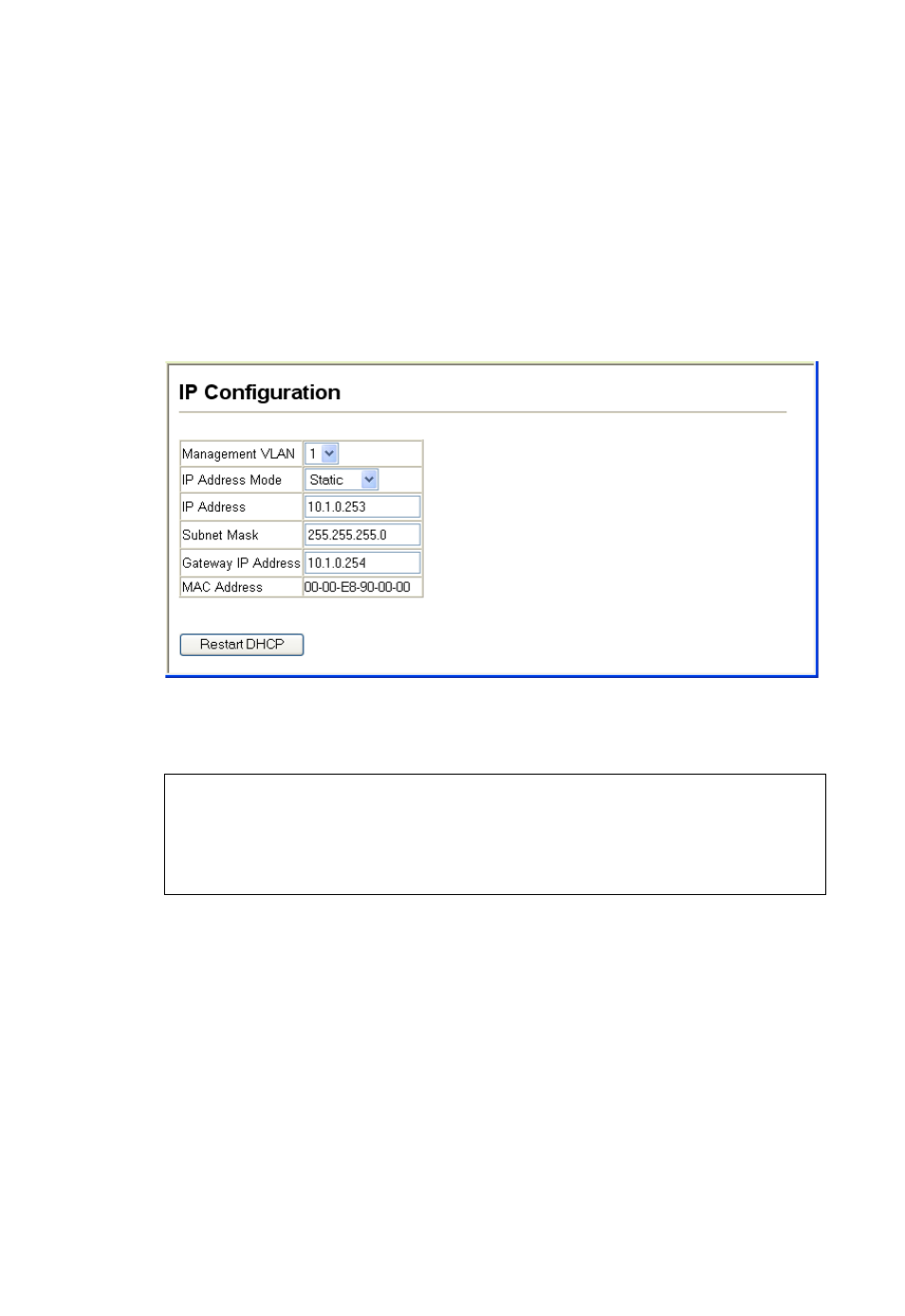

Figure 4-7 IP Interface Configuration - Manual

CLI – Specify the management interface, IP address and default gateway.

Console#config
Console(config)#interface vlan 1

24-2

Console(config-if)#ip address 10.1.0.253 255.255.255.0

35-2

Console(config-if)#exit
Console(config)#ip default-gateway 10.1.0.254

35-3

Console(config)#
