Configuring Uplink and Downlink Ports
Use the Private VLAN Link Status page to set ports as downlink or uplink
ports. Ports designated as downlink ports can not communicate with any
other ports on the switch except for the uplink ports. Uplink ports can
communicate with any other ports on the switch and with any designated
downlink ports.
Web – Click VLAN, Private VLAN, Link Status. Mark the ports that will
serve as uplinks and downlinks for the private VLAN, then click Apply.

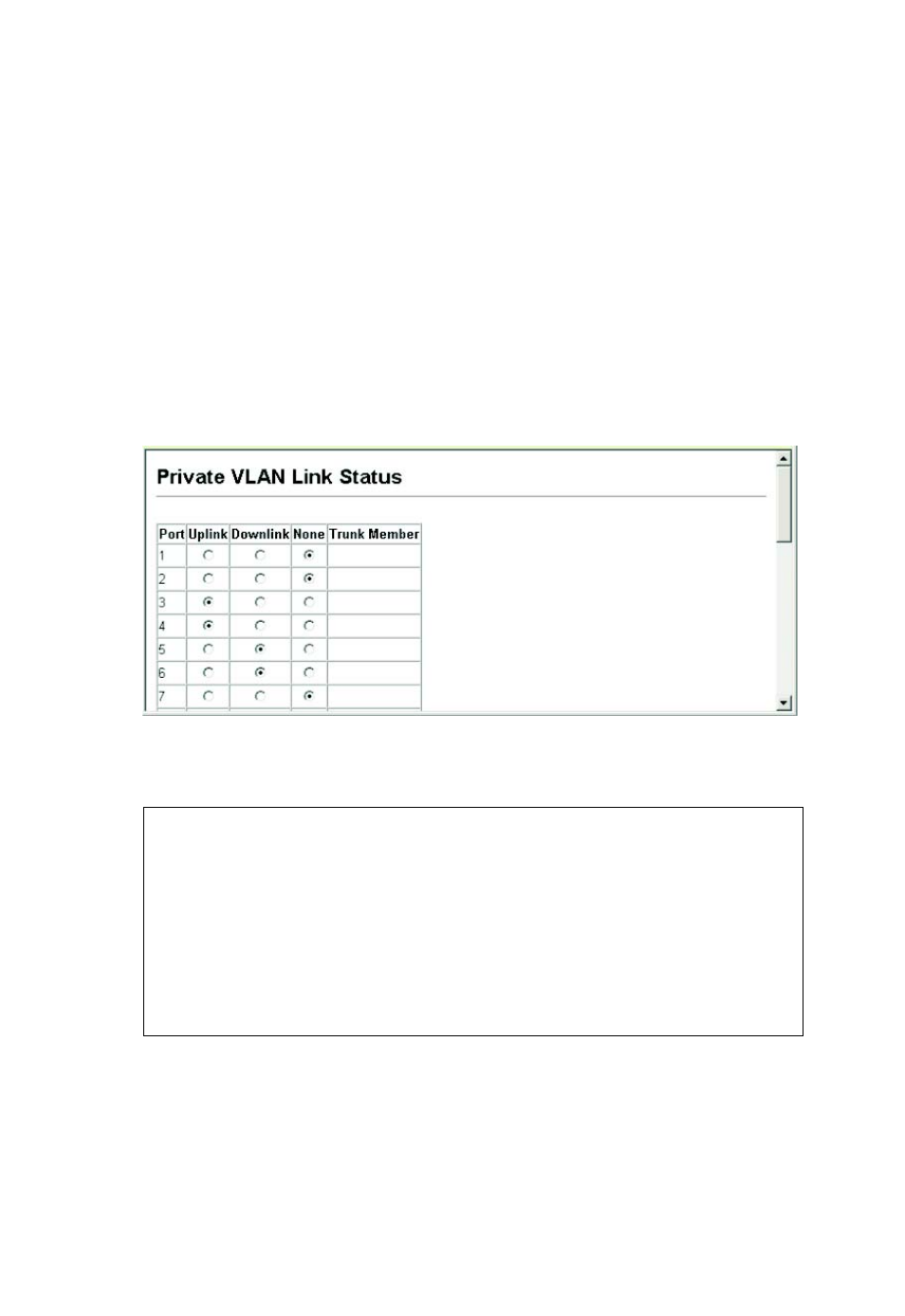

Figure 12-10 Private VLAN Link Status
CLI – This configures port 3 as an uplink and port 5 and 6 as downlinks.
Console(config)#pvlan up-link ethernet 1/3 down-link
ethernet 1/5
Console(config)#pvlan up-link ethernet 1/3 down-link ethernet 1/6
Console(config)#end
Console#show pvlan
Private VLAN status: Enabled
Up-link port:
Ethernet 1/3
Down-link port:
Ethernet 1/5
Ethernet 1/6
Console#
