ULTICAST

VLAN R

EGISTRATION

15-15

Web – Click MVR, Configuration. Enable MVR globally on the switch,
select the MVR VLAN, add the multicast groups that will stream traffic to
attached hosts, and then click Apply.

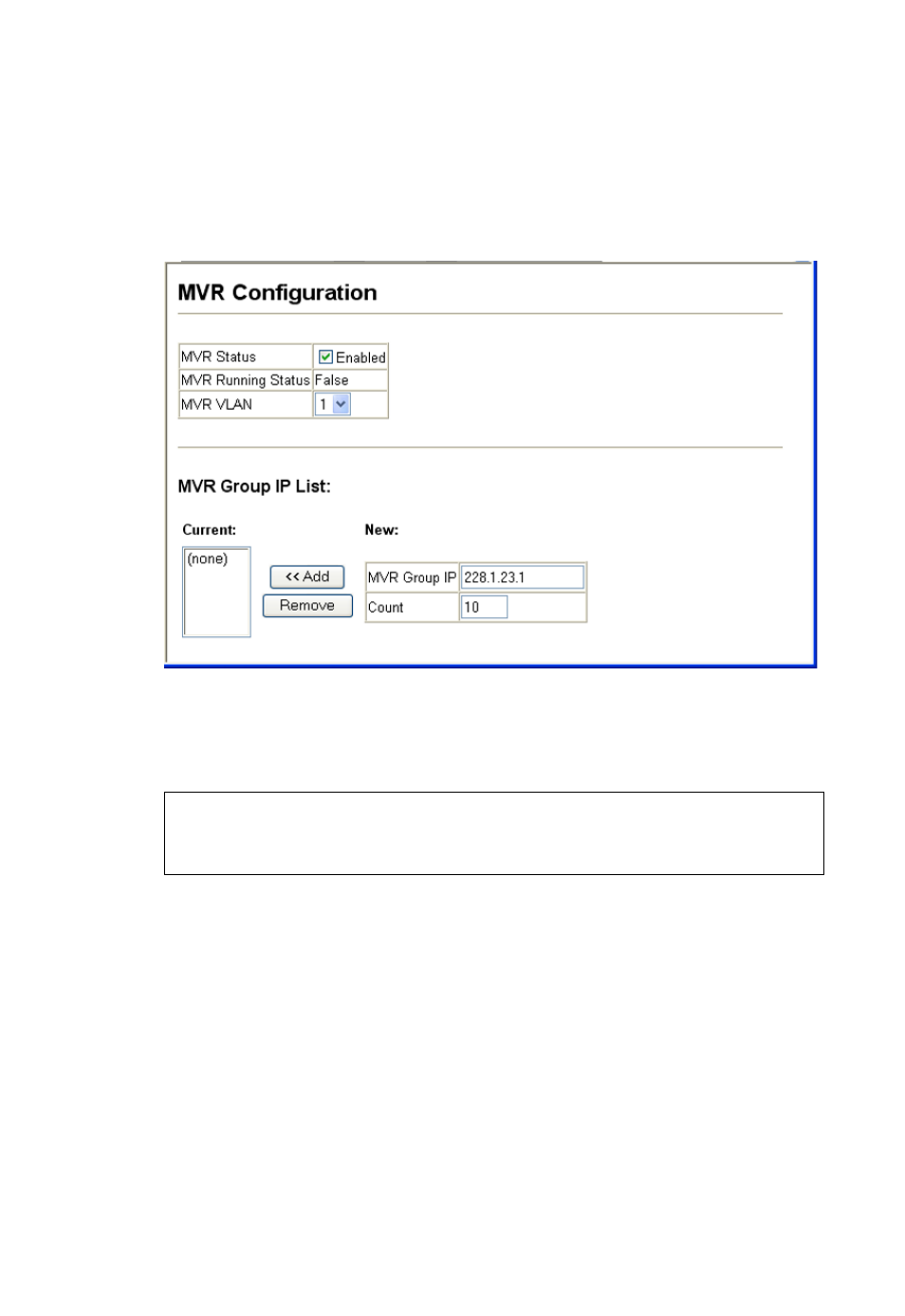

Figure 15-6 MVR Global Configuration

CLI – This example first enables IGMP snooping, enables MVR globally,
and then configures a range of MVR group addresses.

Displaying MVR Interface Status

You can display information about the interfaces attached to the MVR
VLAN.

Field Attributes

• Type – Shows the MVR port type.
• Oper Status – Shows the link status.

Console(config)#ip igmp snooping

33-2

Console(config)#mvr

33-16

Console(config)#mvr group 228.1.23.1 10
Console(config)#
