AJ-64 Conveyor Series Technical Manual 7610-003-30-93

Issued: 05-02-2006 Revised: N/A

SECTION 6: ELECTRICAL SCHEMATICS

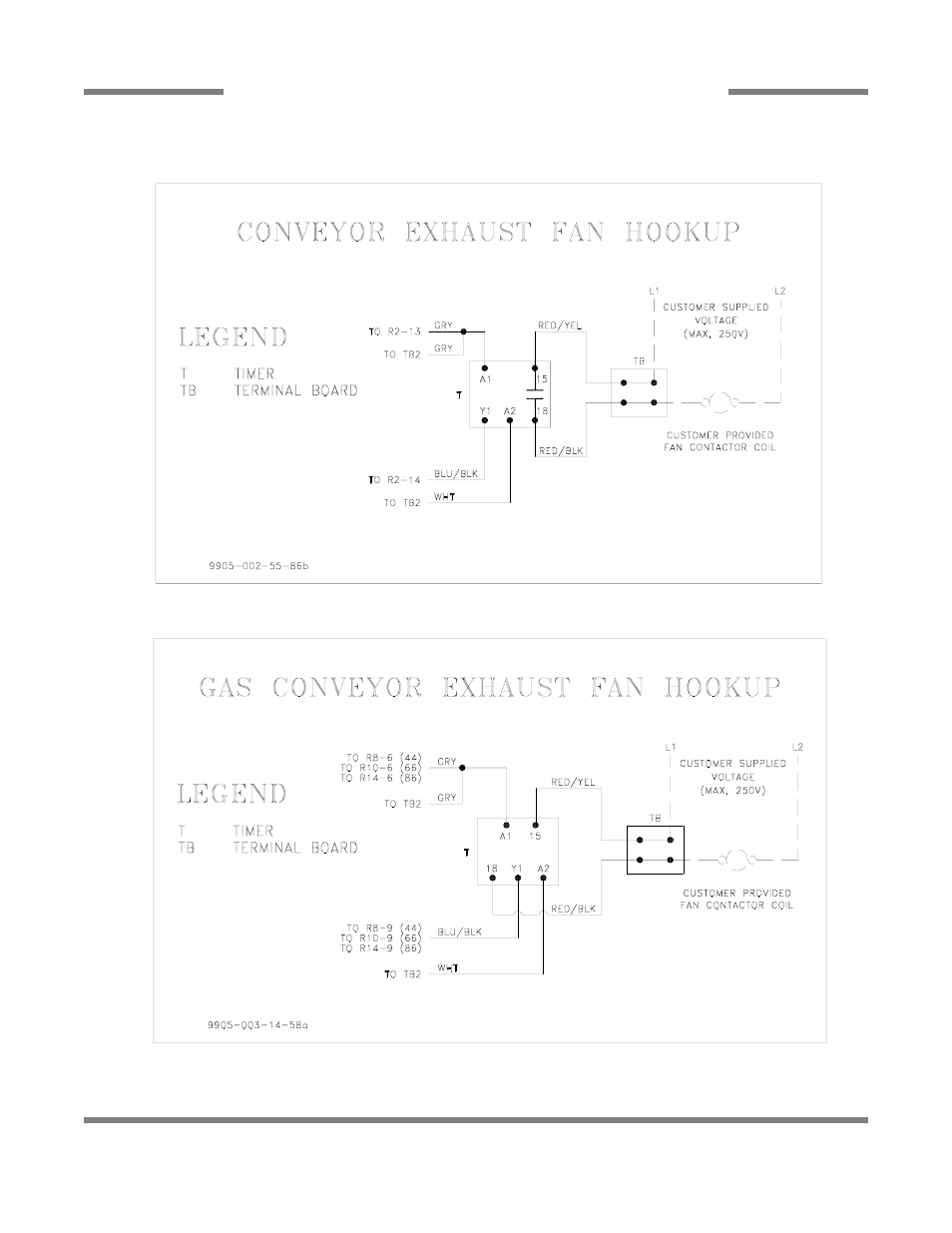

CONVEYOR EXHAUST FAN HOOKUP
