SECTION 5: PARTS SECTION
99

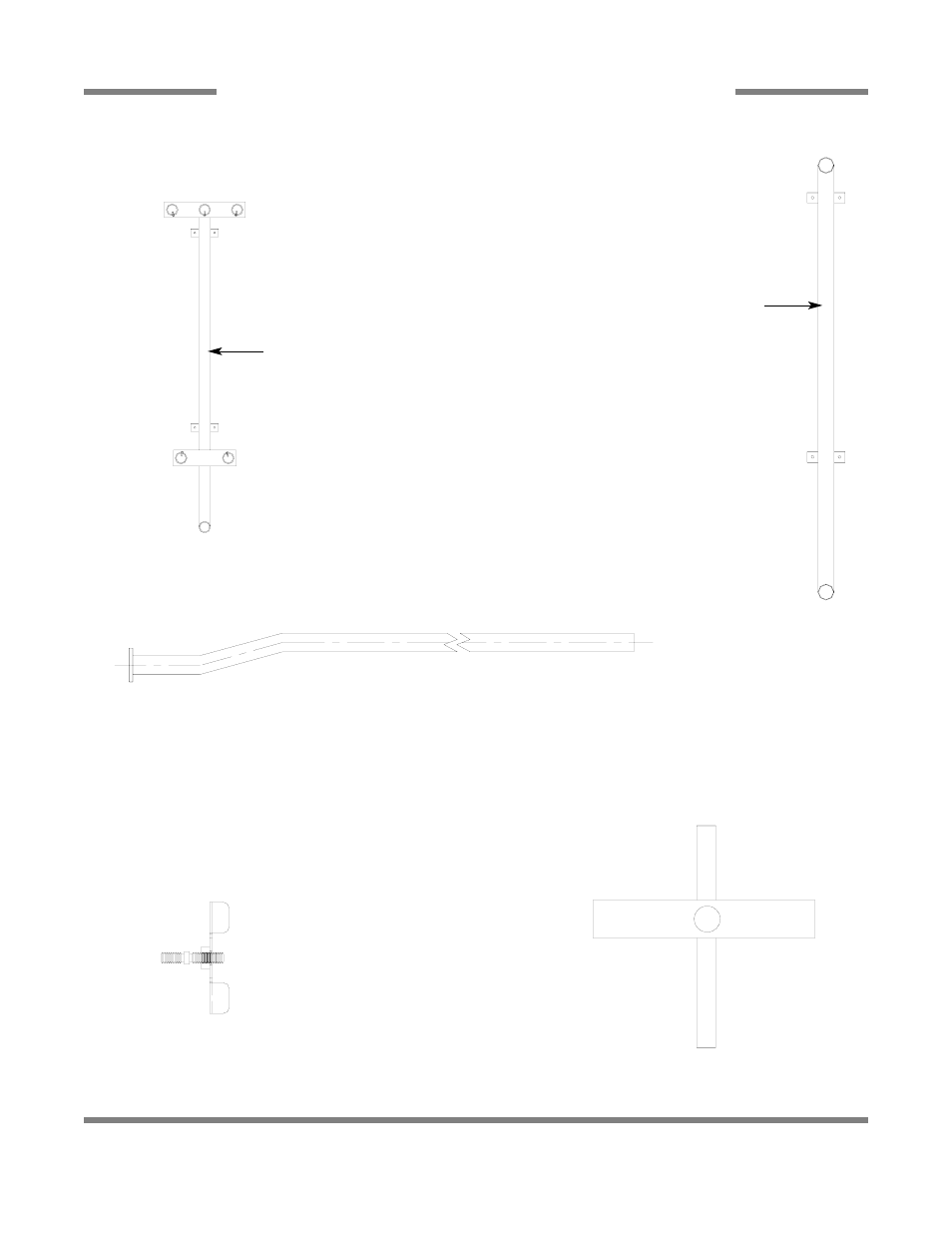

MANIFOLDS/STRAINER SUPPORT WELDMENTS
Prewash Manifold Weldment
AJ-100 Models Only
05700-002-24-94
Prewash Manifold Weldment
AJ-86 Models Only
05700-031-69-70
Wash Manifold Weldment
05700-031-71-13
Secured to the Hood Weldment with:
Washer, Flat, S/S, 1/4” ID
05311-174-01-00
Locknut, 1/4”-20 with Nylon Insert
05310-374-01-00
Shoulder Bolt Wingnut Weldment
05700-002-46-02
Wash Fill Tube Weldment
05700-021-71-21
Prewash Fill Tube Weldment
(AJ-86 & AJ-100 Models Only)
05700-021-74-76
Vellumoid Gasket
05330-111-42-81
Secured with Locknut, 1/4”-20 with Nylon Insert
05310-374-01-00
Wash Strainer Separator Weldment
05700-031-84-38
