AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
88

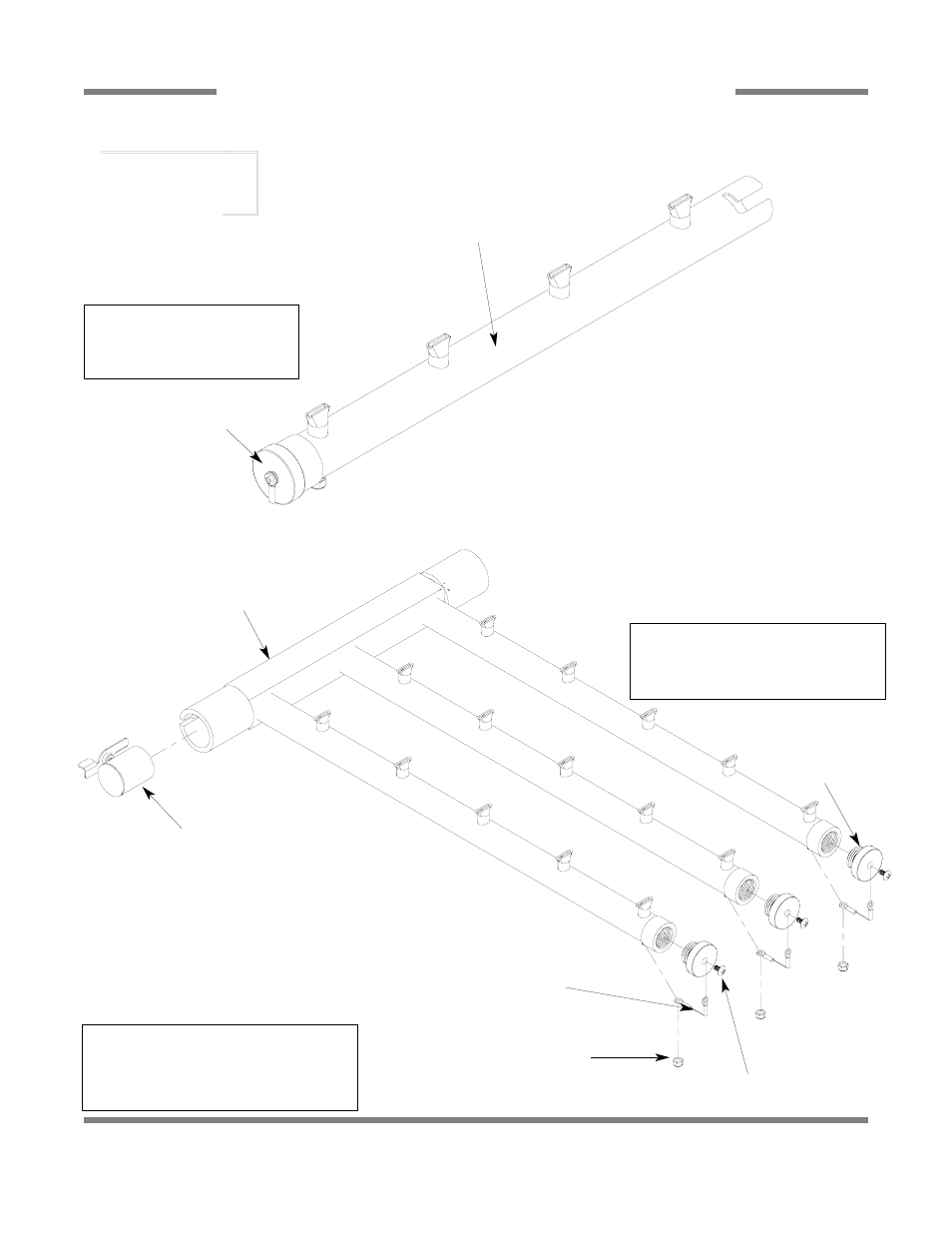

PREWASH & UPPER WASH ARM ASSEMBLIES
Screw, 10-32 x 3/8” Truss Head
05305-173-12-00
Lanyard
05340-011-72-46
Locknut, 10-24 with Nylon Insert
05310-373-01-00
End Cap
05700-011-67-11
End Cap Replacement Kit
06401-003-10-19
Upper Wash Arm Weldment
05700-031-67-34
Cap, Wash Tube
05700-021-69-68
Complete Upper Wash Arm Assembly
05700-031-74-99
SERVICE NOTE: When replacing the 10-32
screws in the End Caps, it is recommended
that a thread locking fluid be used to ensure
that the screws do not back out during nor-
mal operation.
Replacement Kit Note:
The replacement kit for the end cap
includes the endcap, lanyard, mounting
screw and the locknut.
Upper Wash Manifold Support Bracket
05700-021-73-97
Replacement Kit Note:
The replacement kit for the end
cap includes the endcap, lanyard,
mounting screw and the locknut.
Prewash Tube Weldment
05700-001-16-89
End Cap Replacement Kit
06401-003-10-19
Complete Prewash Arm Assembly
05700-021-74-65
