AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
107

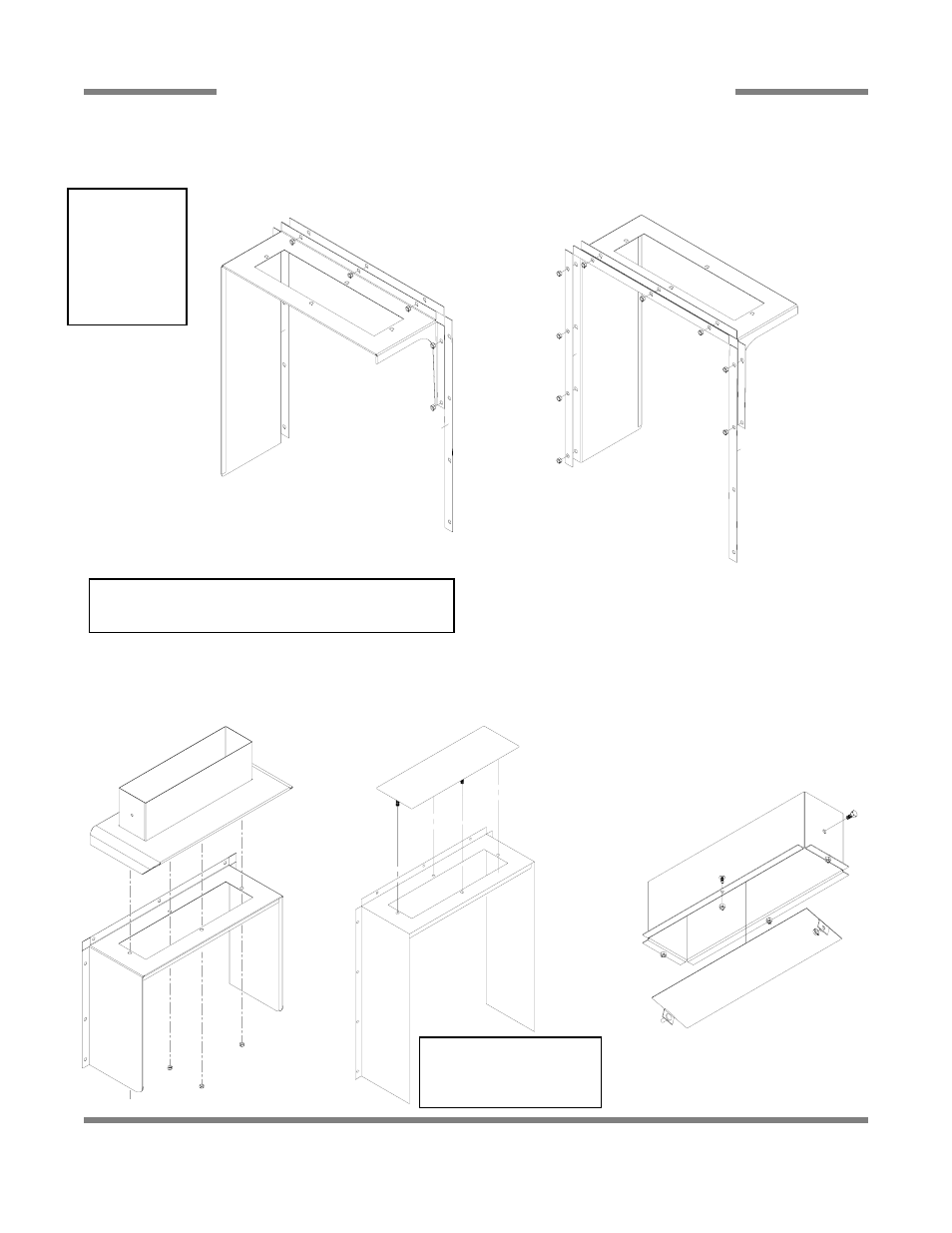

SIDE LOADER VENT COWL OPTION
VENT SCOOP OPTION
Vent Scoop Assembly
05700-002-04-08
STANDARD ASSEMBLY
Vent Cowl Cover Replacement Kit
06401-003-10-16
Vent Cowl Replacement Kit (Left to Right)
06401-003-11-81
Vent Cowl Replacement Kit (Right to Left)
06401-003-11-83
Replacement Kit Note:
The replacement kit(s) for the vent cowls come with the
cowls, the gaskets and mounting hardware.
Replacement Kit Note:
The cover kit contains the
cover and the hardware for
mounting it.
Vent Cowl Gasket, Top: 05330-031-83-47
Vent Cowl Gasket, Side: 05330-031-83-48
Service Note:
One of the side
gaskets that come
in the kit will need
to be cut to length
in order to fit prop-
erly on the unit
when replaced.
Vent Cowl Assembly for
Hooded Side Loader Option
05700-003-15-66
