AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
96

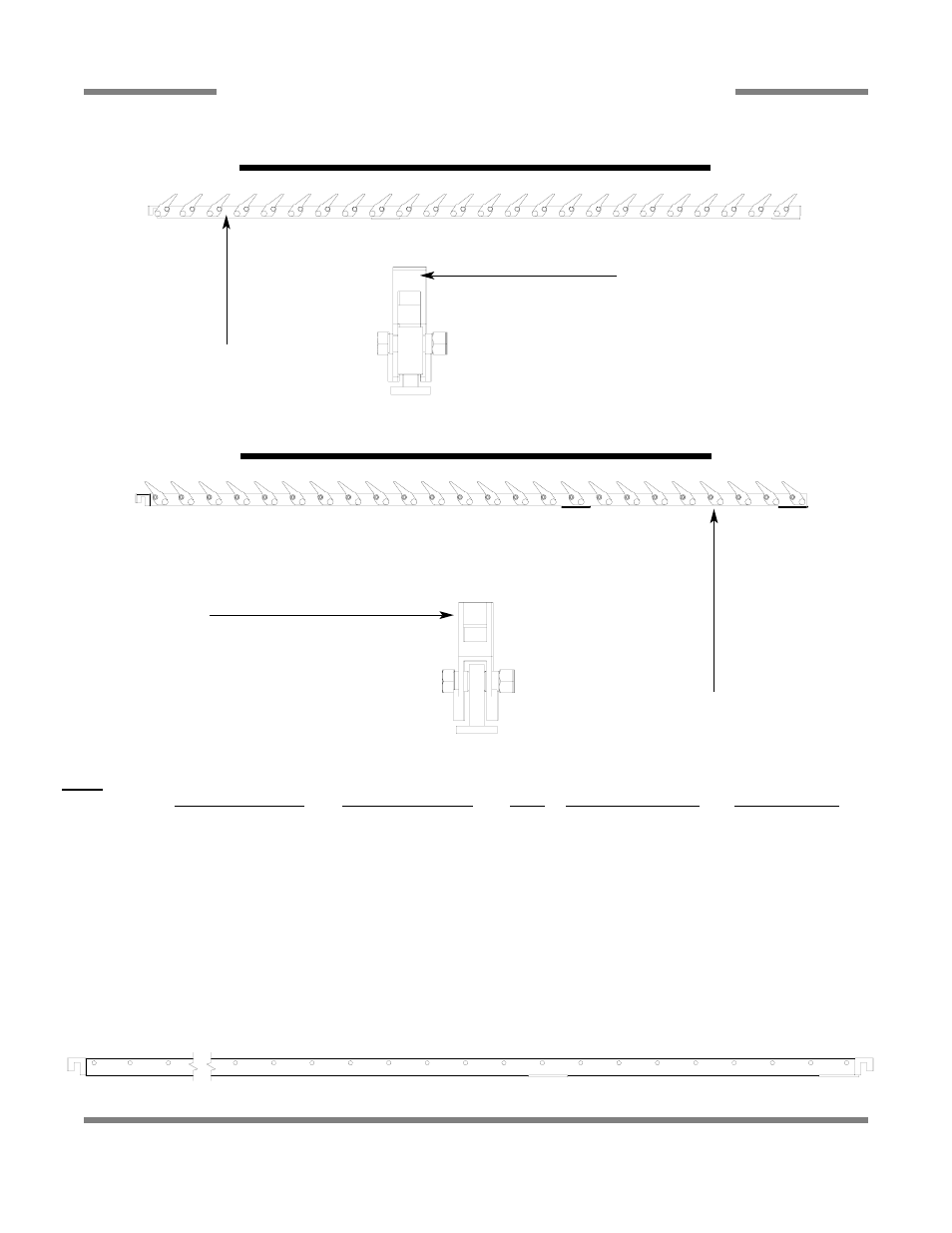

PAWL BAR ASSEMBLIES
PAWL BAR ASSEMBLY, LEFT TO RIGHT OPERATION
PAWL BAR ASSEMBLY, RIGHT TO LEFT OPERATION
PAWL BAR ASSEMBLIES:
Model Left to Right Right to Left Pawl Bar
Pawl Bar Weldment Pawl Bar Weldment Dogs Complete Assembly Prison Package
AJ-64 05700-031-81-03 05700-031-81-03 18 06401-131-81-02 06401-231-81-02
AJ-86 05700-041-83-67 05700-002-81-34 24 06401-131-83-75 (L-R) 06401-331-83-75
06401-231-83-75 (R-L)
AJ-86 N/A 05700-003-13-63 24 N/A (L-R) N/A
With Side Loader 05700-003-13-64 (R-L) N/A
AJ-100 05700-041-91-13 05700-041-91-13 28 06401-141-91-05 06401-241-91-05
09515-021-69-00
Pawl Bar Dog Casting
Pawl Bar Weldment
(See below)
09515-021-69-00
Pawl Bar Dog Casting
Pawl Bar Weldment
(See below)
PAWL BAR WELDMENT
AJ-86 RIGHT TO LEFT WITH A SIDE LOADER
