AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
101

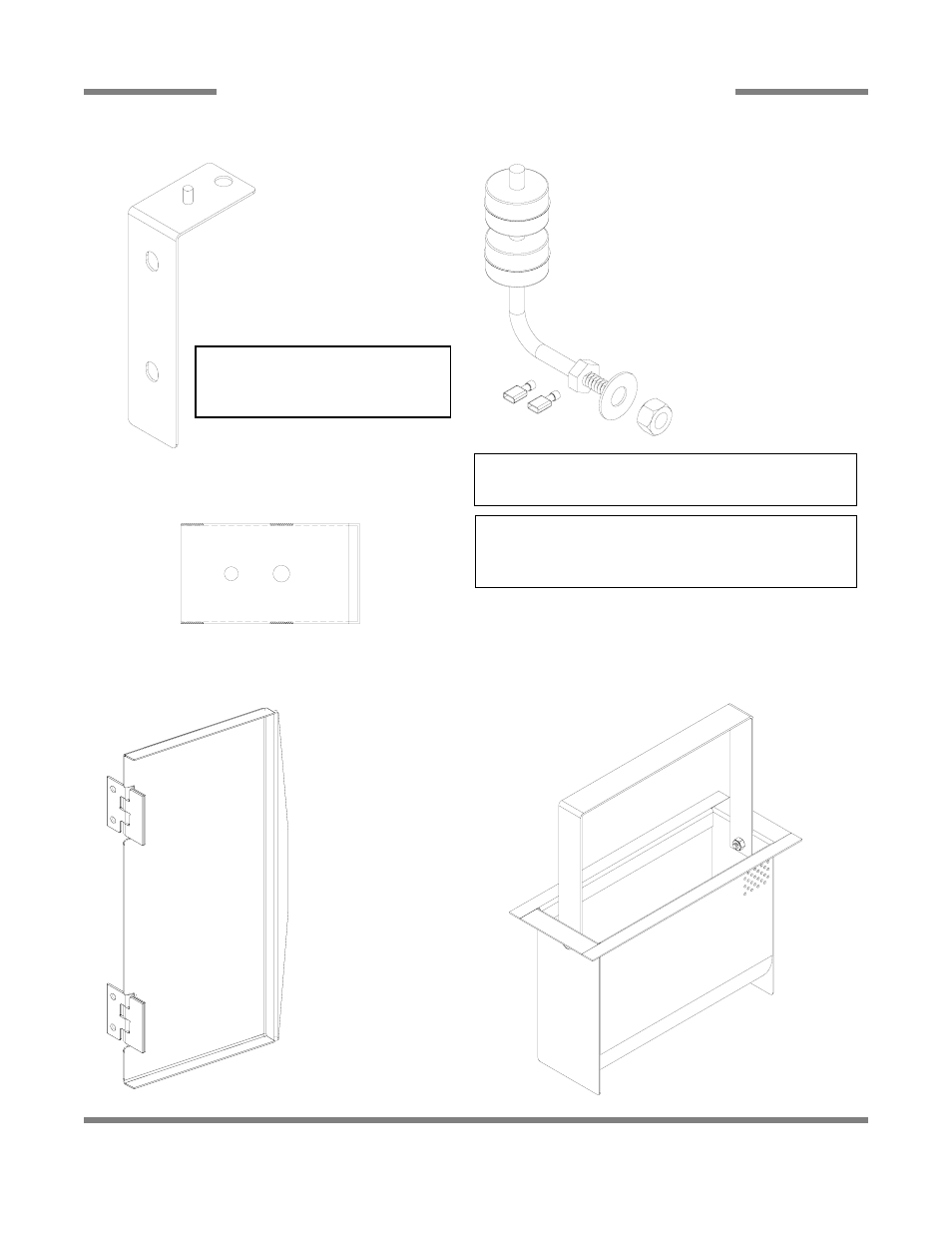

FLOAT SWITCH COMPONENTS/SCRAP BASKETS
Float Switch Support Bracket
Replacement Kit
06401-003-11-77
Float Switch Cover
05700-021-75-71
Scrap Basket Lid
Weldment
05700-002-56-55
Scrap Basket Assembly
06401-011-87-78
Wash Tank Float Switch Replacment Kit
06401-003-11-75
Prewash Tank Float Switch Replacment Kit
06401-003-11-76
Replacment Kit Note:
The float switch replacement kits contain the float switch with
associated terminals, the flat washer and the nut.
Service Agent Note:
Remember than when reinstalling the float switch that the flat
washer goes inside against the tub wall while the nut is on the
outside of the tub.
Replacment Kit Note:
The float switch support bracket replace-
ment kit contains the bracket and asso-
ciated hardware for mounting.
