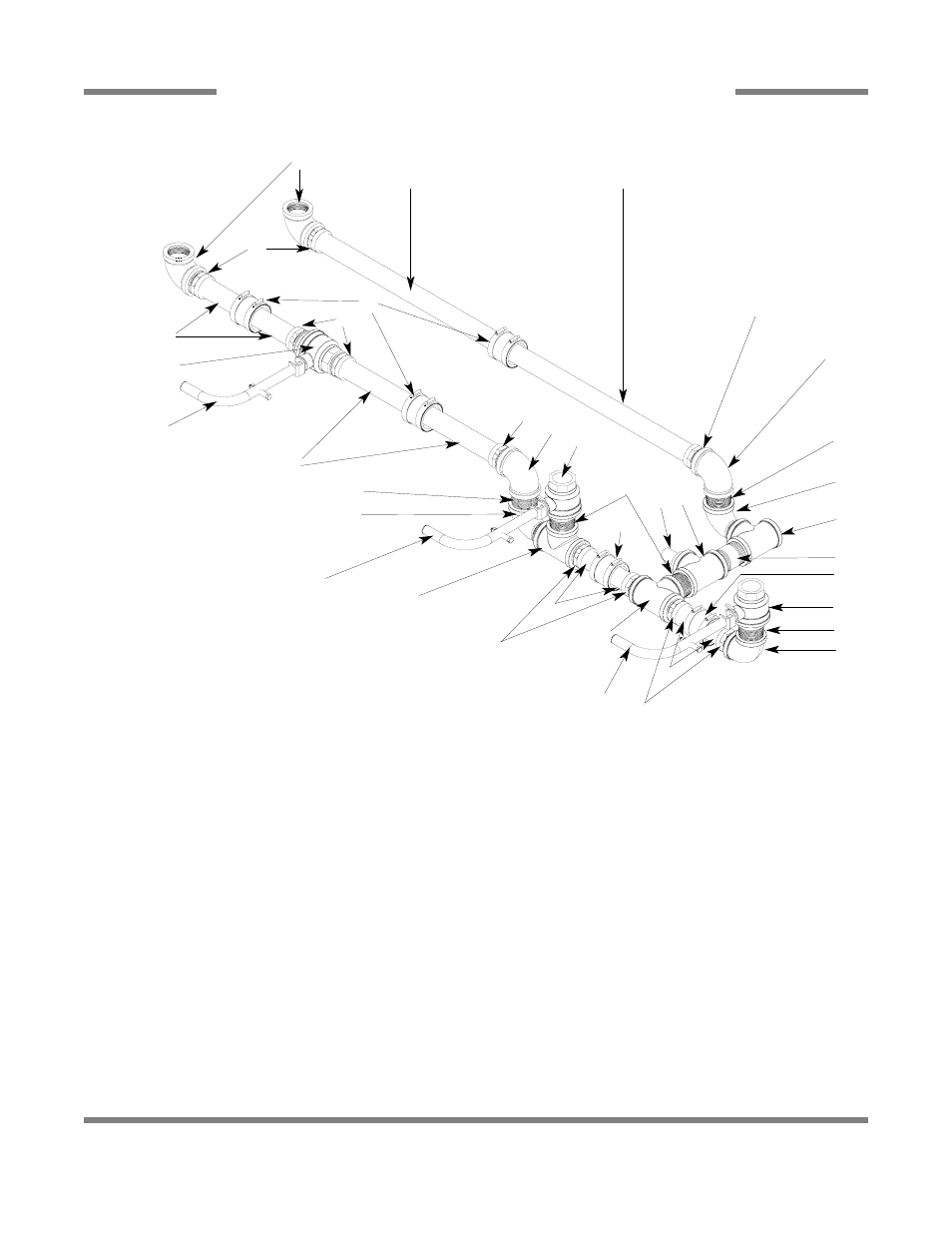

AJ-86 & AJ-100 DRAIN PLUMBING ASSEMBLY (LEFT TO RIGHT MODELS)
ITEM QTY DESCRIPTION Mfg. No.
1 1 Ball Valve Handle 05700-021-84-74
Spacer (Not Shown) 05700-002-87-05
2 2 Ball Valve Handle 05700-021-83-53
Spacer (Not Shown) 05700-002-87-05
3 5 Elbow, 1-1/2” FNPT, 90 ° Brass 04730-011-73-77
4 10 Adapter, 1-1/2” 04730-401-25-01
5 2 Tube, Copper, 1-1/2” OD x 4-7/16” Long (AJ-86 Models) 05700-011-84-22
2 Tube, Copper, 1-1/2” OD x 5-1/4” Long (AJ-100 Models) 05700-002-79-12
6 5 Connector, No-H UB , 1-1/2” 04720-604-06-00
7 3 Ball Valve, 1-1/2” 04820-011-71-46
8 2 Tube, Copper, 1-1/2” OD x 7-3/4” Long (AJ-86 Models) 05700-021-84-24
2 Tube, Copper, 1-1/2” OD x 13-3/4” Long (AJ-100 Models) 05700-021-88-17
9 5 Nipple, 1-1/2” NPT, Brass, Close 04730-207-40-00
10 2 Elbow, 1-1/2” NPT, Brass, Street 04730-206-32-00
11 4 Tee, Brass, 1-1/2” NPT 04730-011-69-93
12 4 Tube, Copper, 1-1/2” OD x 2” Long 05700-011-87-16
13 1 Nipple, Brass, 1-1/2” NPT x 3” Long 04730-011-87-04
14 1 Rinse Nipple Weldment 05700-021-84-61
15 2 Tube, Copper, 1-1/2” OD x 20-1/8” Long (AJ-86 Models) 05700-021-84-29
2 Tube, Copper, 1-1/2” OD x 27-1/2” Long (AJ-100 Models) 05700-021-84-28
