AJ-64 Conveyor Series Technical Manual 7610-003-30-93

Issued: 05-02-2006 Revised: N/A

SECTION 5: PARTS SECTION

81

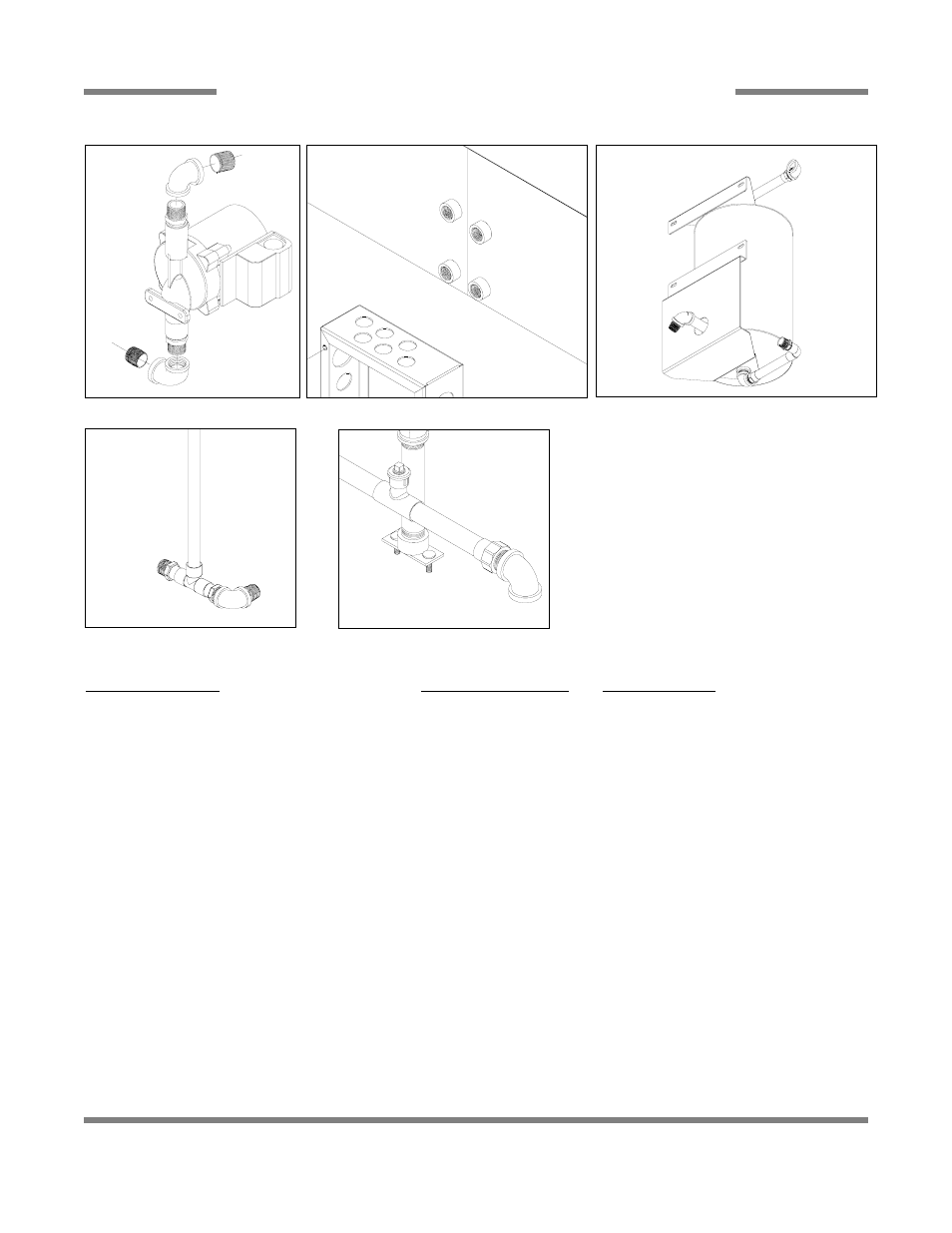

HOSE CONNECTIONS (CGP MODELS ONLY)

HOSE ASSEMBLIES

AJ-86CGP (L-R & R-L)

AJ-100CGP (L-R)

*Each hose assembly includes 2, 3/4” Pushlock Fittings part number 04730-011-94-00.

A - Hose, Recirculating Discharge

05700-002-52-74

05700-002-52-76

B - Hose, Recirculating Pump Suction

05700-002-52-75

05700-002-51-38

C - Hose, Wash Coil Assembly

05700-002-52-76

04720-011-94-10 (66”)

D - Hose, Wash/Fill Supply

05700-003-03-97

05700-003-03-99

E - Hose connection to existing gas booster outlet fitting.

F - Hose connection to existing gas booster inlet fitting.

G - Hose, Coil Recirculating

05700-002-17-71

05700-002-17-71

Gas Booster Connection Kit 05700-002-51-73 includes:
18 Feet of 3/4” Hose
4 - 3/4” Push Lock Fittings

A

B

A

C

G

G

C

E

D

Recirculating Pump Assembly

Gas Coil Weldment

Rinse Booster Tank

Rinse Header Plumbing Assembly

Wash/Fill Plumbing Assembly

B

F

D
