AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
98
MISCELLANEOUS PARTS AND WELDMENTS

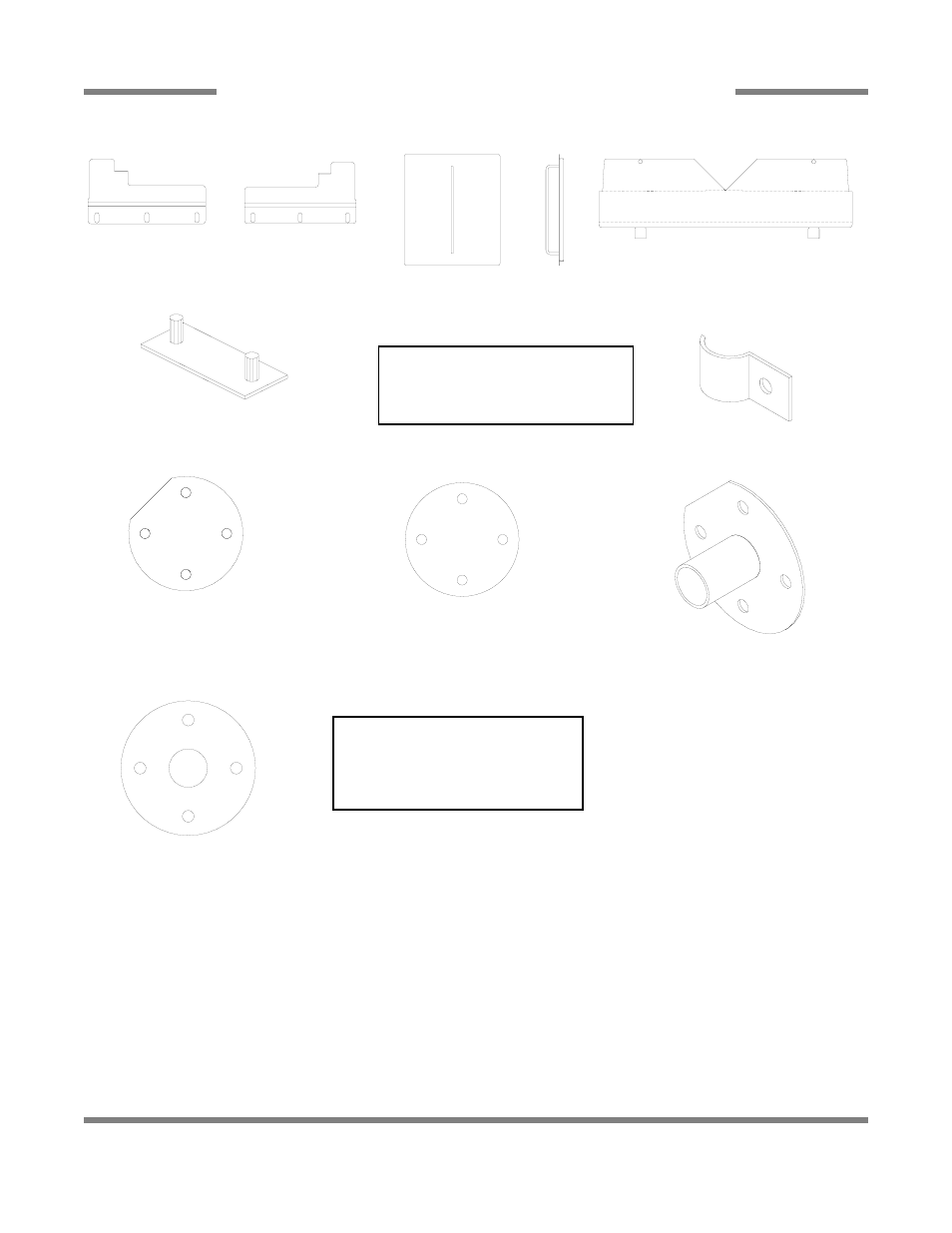

Run Off Sheet Weldment
05700-021-71-39
Plate, Right Water
Directional
05700-021-79-23
Plate, Left Water
Directional
05700-021-79-27 Splash Shield Weldment
05700-031-85-16
Hole Direction Plate Replacment Kit
06401-003-10-00
Replacment Kit Note:
The kit for the hole direction plate comes
with the plate, a new gasket and the
mounting hardware.
Pipe Clamp
05700-000-35-05
Rinse Drain Plate Replacment
Kit
(CGP Models Only)
06401-003-10-07
Rinse Drain Plug Replacement Kit
06401-003-10-06
Rinse Drain Weldment Replacement Kit
06401-003-10-05
Rinse Drain Plate Gasket
05330-011-72-27
Replacement Kits Notes:
The kits for the drain weldments and
drain plugs come with the
weldments/parts, a new gasket and the
mounting hardware.
