SECTION 5: PARTS SECTION
87

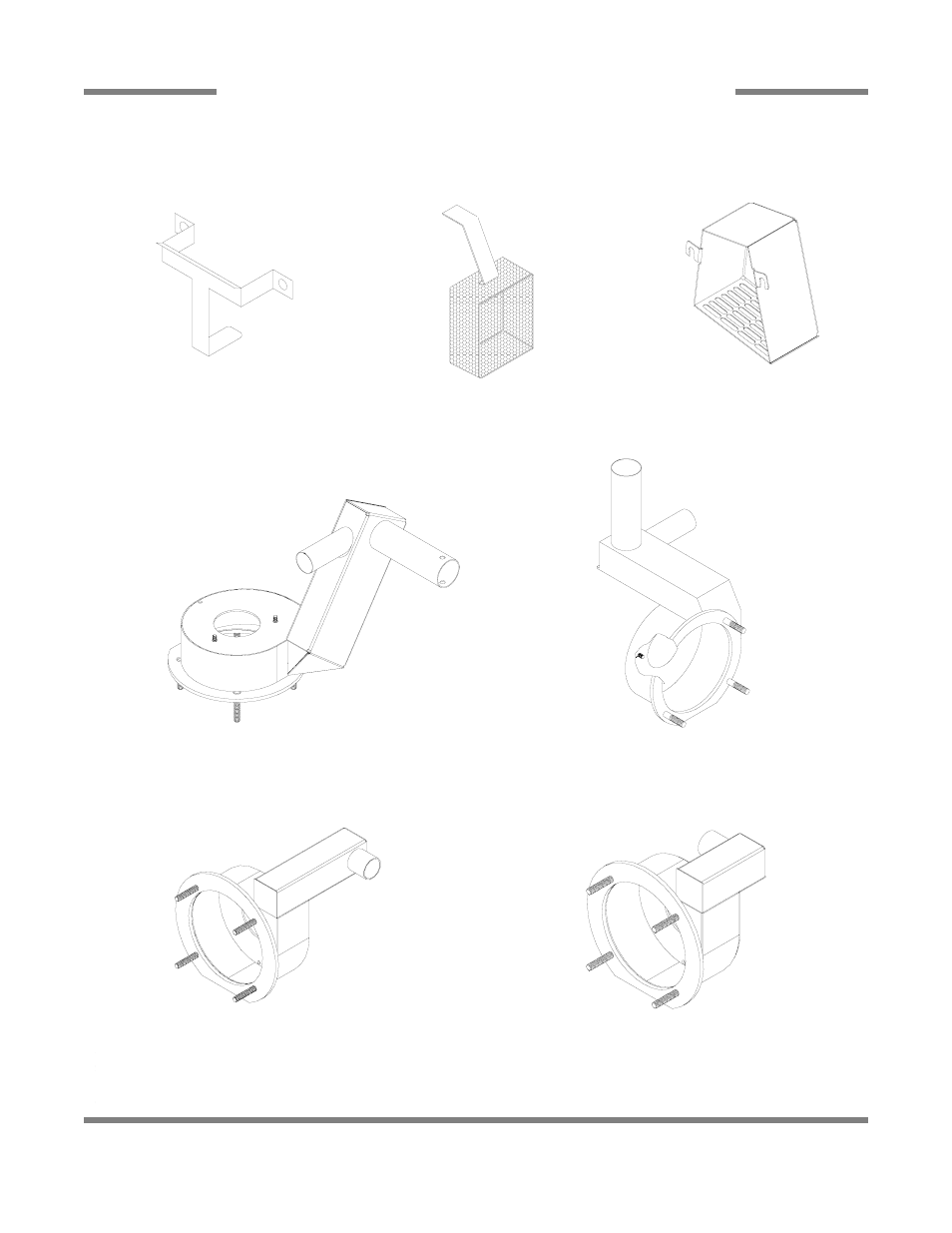

PREWASH & WASH PUMP WELDMENT
The wash pump weldment is a single part. Separate pieces
of the weldment are not available for purchase. The weld-
ment is used for the wash pump in all models covered in this
manual. The weldment may be ordered using part number
05700-041-68-88.
Prewash Intake Strainer Weldment
05700-021-74-96
Prewash Strainer Bracket
05700-021-74-94
The prewash pump weldment is a single part. Separate
pieces of the weldment are not available for purchase.
Prewash Pump Weldment
AJ-86/AJ-100 Left to Right models: 05700-002-10-62
The prewash pump weldment is a single part. Separate
pieces of the weldment are not available for purchase.
Prewash Pump Weldment
AJ-86/AJ-100 Right to Left models: 05700-002-11-96
Intake Suction Scoop Weldment
05700-021-87-60
The power rinse pump weldment is a single part. Separate
pieces of the weldment are not available for purchase.
Power Rinse Pump Weldment (AJ-100’s)
05700-031-81-47
The pump weldment is secured to the pump plate (through the actual tub wall) using the following fasteners:
Nut, Hex, 3/8”-16 05310-276-01-00
Washer, Flat, 3/8” 05311-176-01-00
Lockwasher, Split, 3/8” 05311-276-01-00
