AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
105
SIDE LOADER TRACK ASSEMBLY/LEG REPLACEMENTS/STRAINER
ITEM QTY DESCRIPTION Mfg. No.
1 1 Track Weldment (Left to Right) 24” 05700-031-78-98
1 Track Weldment (Right to Left) 24” 05700-031-95-20
1 Track Weldment (Left to Right) 30” 05700-003-04-57
1 Track Weldment (Right to Left) 30” 05700-003-04-58
2 1 Actuator Switch Replacement Kit 06401-003-10-64
3 2 Spacer 05700-011-71-44
4 1 Leg Socket Replacement Kit 06401-003-09-79
5 1 Leg Support Replacement Kit 06401-003-09-80
6 1 Bullet Foot 05340-108-01-03
1
2
3

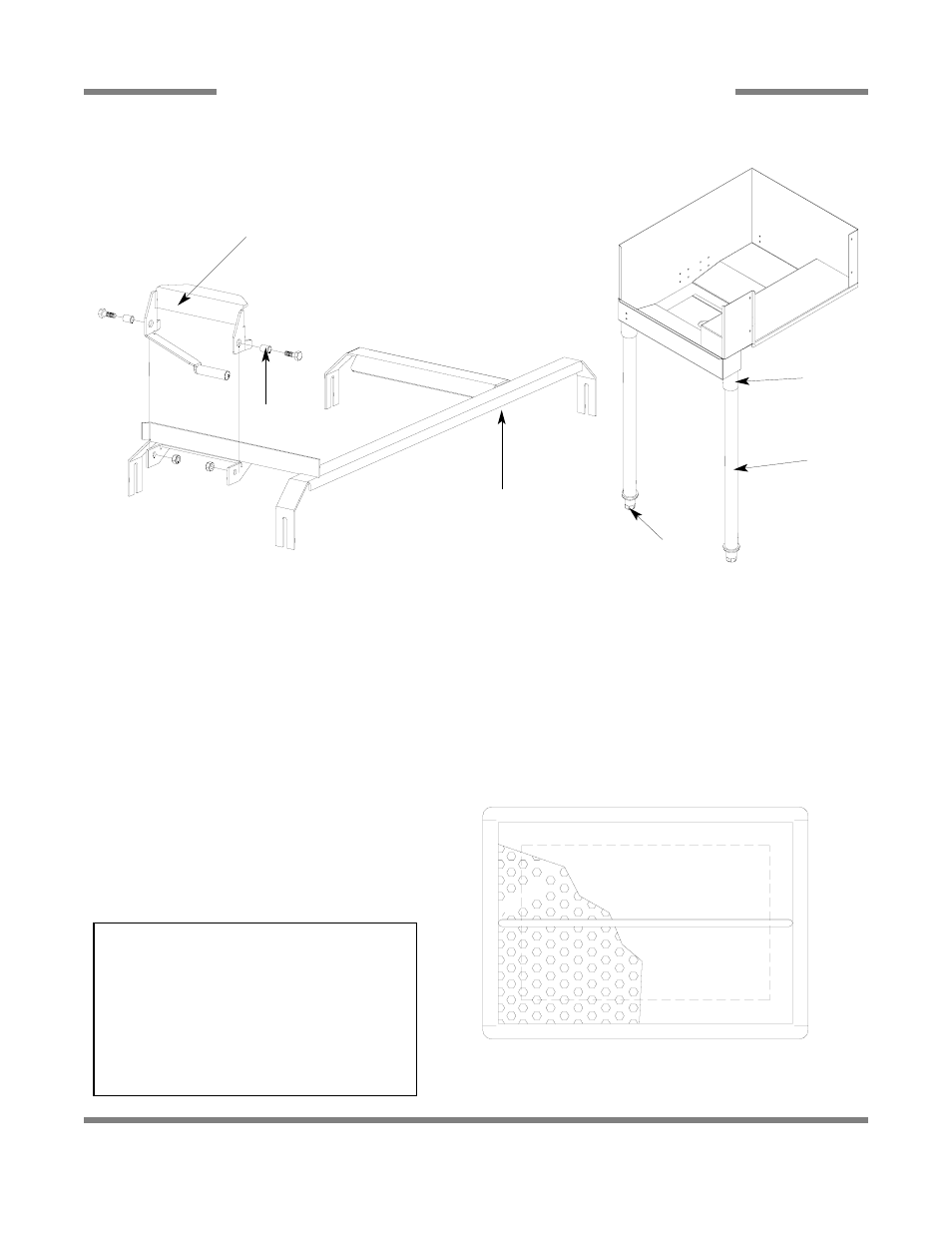

Side loader track assembly
(left to right model shown).
Replacement Kits Notes:
The actuator switch replacement kit comes with the
actuator weldment, mounting hardware and (2)
spacers.
The leg socket replacement kit has the leg socket,
mounting hardware and set screw.
The leg support replacement kit has the leg and the
bullet foot included.
4
5
6
Front Strainer Weldment
05700-021-85-10
