AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
90

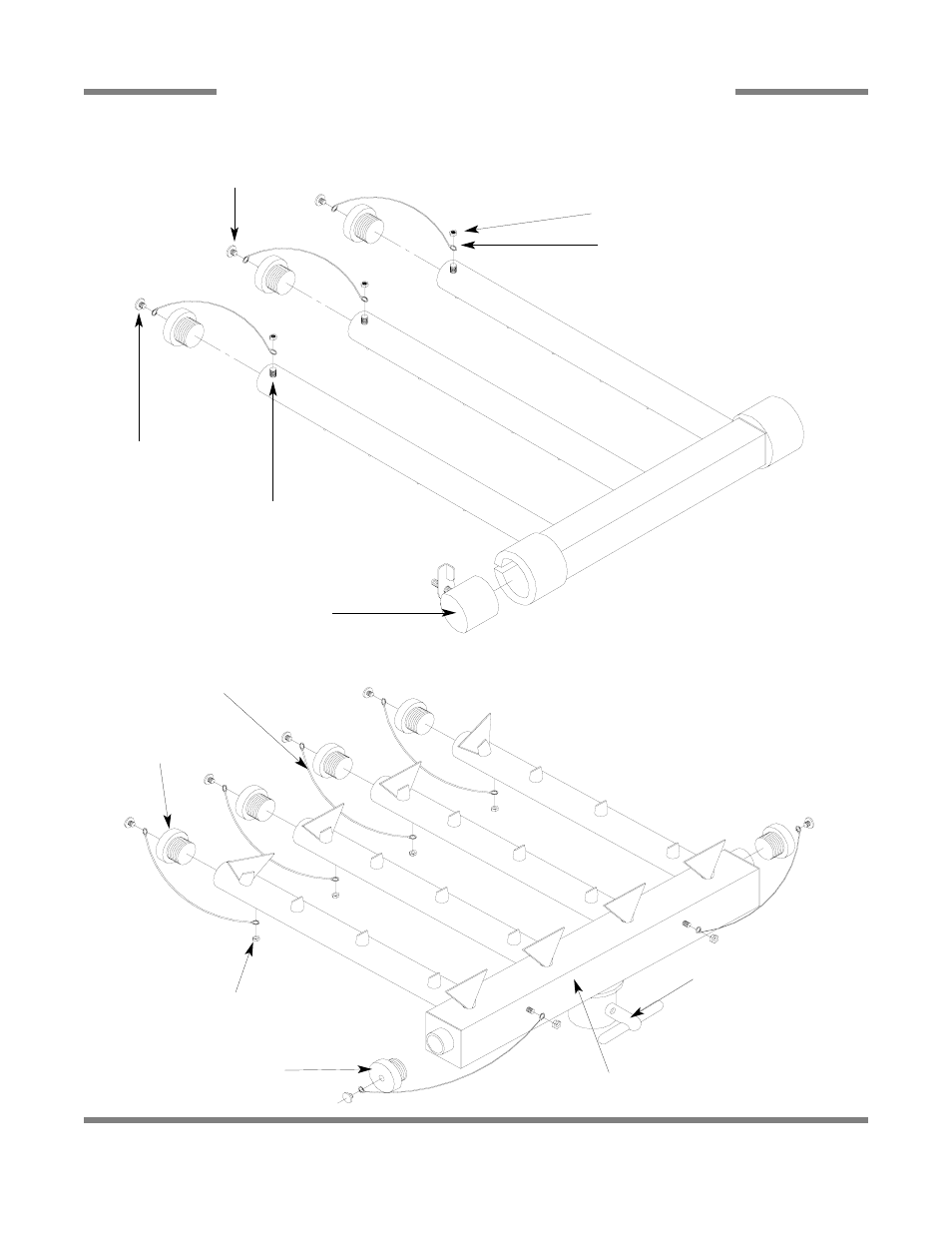

UPPER & LOWER POWER RINSE ARM ASSEMBLIES
Upper Wash Manifold
05700-031-91-48
Cap, Wash Tube
05700-021-69-68
Locknut, 10-24 with Nylon Insert
05310-373-01-00
Lanyard
05340-011-72-46
End Cap
05700-011-87-11
Screw, 10-32 x 3/8” Long
05305-173-12-00
SERVICE NOTE: When replacing the
10-32 screws in the End Caps, it is rec-
ommended that a thread locking fluid be
used to ensure that the screws do not
back out during normal operation.
Complete Upper Power Rinse Arm Assembly
05700-031-91-46
Complete Lower Power Rinse Arm Assembly
05700-031-91-47
End Cap
05700-011-67-11
Screw, 10-32 x 3/8” Long
05305-173-12-00
Lower Wash Arm Manifold
05700-031-91-49
Lanyard
05340-011-72-46
Locknut, 10-24 with Nylon Insert
05310-373-01-00
Manifold Quick Release Key
05700-011-94-45
