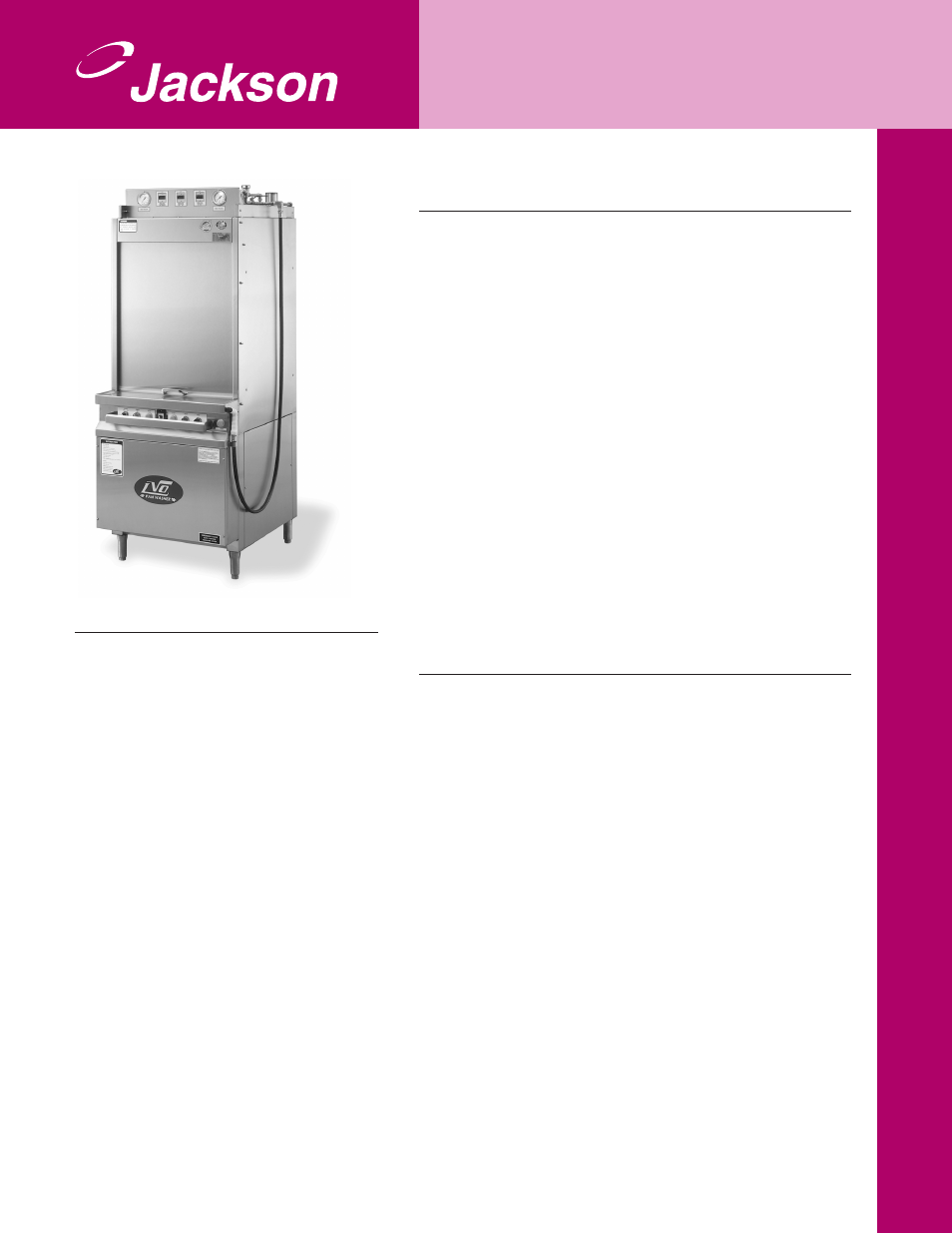

Jackson FL-14 - Manual

Performance/Capacities
P
ot
washer
s
• Water usage — 6.5 gallons per cycle
• 12 cycles per hour
• Fully automatic cycle - 260 seconds
• Incoming water pressure regulator
• Internally mounted electric booster
heater
- Capable of minimum 60°F temper-
ature rise for required 180°F
minimum sanitizing rinse temperature
• One (1) 9 KW Heating Element in a
9 1/2 gallon rinse tank
• Two (2) Rotating Wash Arms -
1 upper & 1 lower
• Stationary Rinse Nozzles -
Top & Bottom
• 40 Gallon Wash Tank
• Electromechanical controls
- Safety door switch
- Temperature control thermostat
and low water protection
• Construction - 12 & 14 gauge
stainless steel
• Operational and cleanability features
- High pressure, all stainless steel
wash arms
- 32” wide x 30” high door opening
- Double filtration system
- Externally mounted spray down
hose with spray gun nozzle
- Waterproof LED ditigal gauges
- Three wash cycles
• Installation features
- Stainless steel control panel - easily
accessible
- Adjustable bullet feet
- Detergent/rinse additive signal
connection fuse box
Standard Features
Operating Capacity
Racks per Hour 12
Operating Cycle (Seconds)
Light
Wash Time 180
Dwell Time 20
Rinse Time 60
Total Cycle 260
Medium
Wash Time 300
Dwell Time 20
Rinse Time 60
Total Cycle 380
Heavy
Wash Time 420
Dwell Time 20
Rinse Time 60
Total Cycle 500
Operating Temperatures
Wash — °F (Minimum) 150
Rinse — °F (Minimum) 180
Frame Dimensions (Inches)
Width 36
Depth 51 (53 gas)
Height 84 1/2
Height (door open)
Electric 106
Gas 108 1/2
Wall Clearanse (Minimum) 16
Wall Clearance
(Control Panel Side) 36 Wall
Clearance (Back) 12
Shipping Weight (Lbs.) 1150
Shipping Size (Inches)
Width 42
Depth 60
Height 90
Electrical Rating
Wash Pump Motor Horsepower
10.0
Full Load Amps 208V 230V 460V
Electric 79.0 72.2 37.1
Steam Injectors 54.0 49.6 25.8
Steam Coils 29.0 27.0 14.5
Gas 54.0 49.6 25.8
Gas Requirements
Gas Connection (NPT)
1/2
Natural Gas (Inches-water column)
Minimum inlet 7.0
Main Manifold 6.0
BTU 48,000
Propane (Inches-water column)
Minimum inlet 11.0
Main Manifold 11.0
BTU 48,000
3” Stainless steel chimney on back of machine
Steam Requirements
Steam connection (NPT)
3/4
Injectors (Lbs per hour) 23
Coils (Lbs per hour) 43
Water Requirements
Inlet Temperature (Minimum)
140°F
Gallons per Hour 78
Gallons per Rack 6.5
Waterline Size IPS (Minimum) (Inches) 1/2
Drainline Size IPS (Minimum) (Inches) 1 1/2
Flow Pressure (PSI) 15-25
Power/Connections
FL-14
