AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
67
EXTERNAL ELECTRIC BOOSTER INCOMING PLUMBING ASSEMBLIES
ITEM
QTY
DESCRIPTION
Mfg. No.
1
-
Y-Strainer, 3/4” NPT, Brass
04730-717-02-06
2
-
Arrestor, Water Hammer, 1/2” NPT
06685-100-05-00
3
-
Regulator, Pressure, 3/4” NPT, Brass
06685-011-58-22
4
-
Nipple, 3/4” NPT x 2” Long, Brass
04730-207-46-00
5
-
Elbow, Brass, 90
°, 3/4”
04730-206-13-00
6
-
Nipple, 3/4” NPT, Close, Brass
04730-207-34-00
7
-
Coupling, 3/4” FNPT x 3/4” FNPT, Brass
04730-011-87-95
8
-
Adapter, 3/4” Male
04730-401-11-01
9
-
Tube, Copper, 3/4” x 3-7/16” Long
05700-011-72-70
10
-
Adapter, 1/2” NPT x Male
04730-401-07-01
11
-
Tee, Copper, 3/4” x 3/4” x 1/2”
04730-411-03-01
1
8
9
11
9
8
2
10
3
4
5
6
7
1
3
4
7
5
6

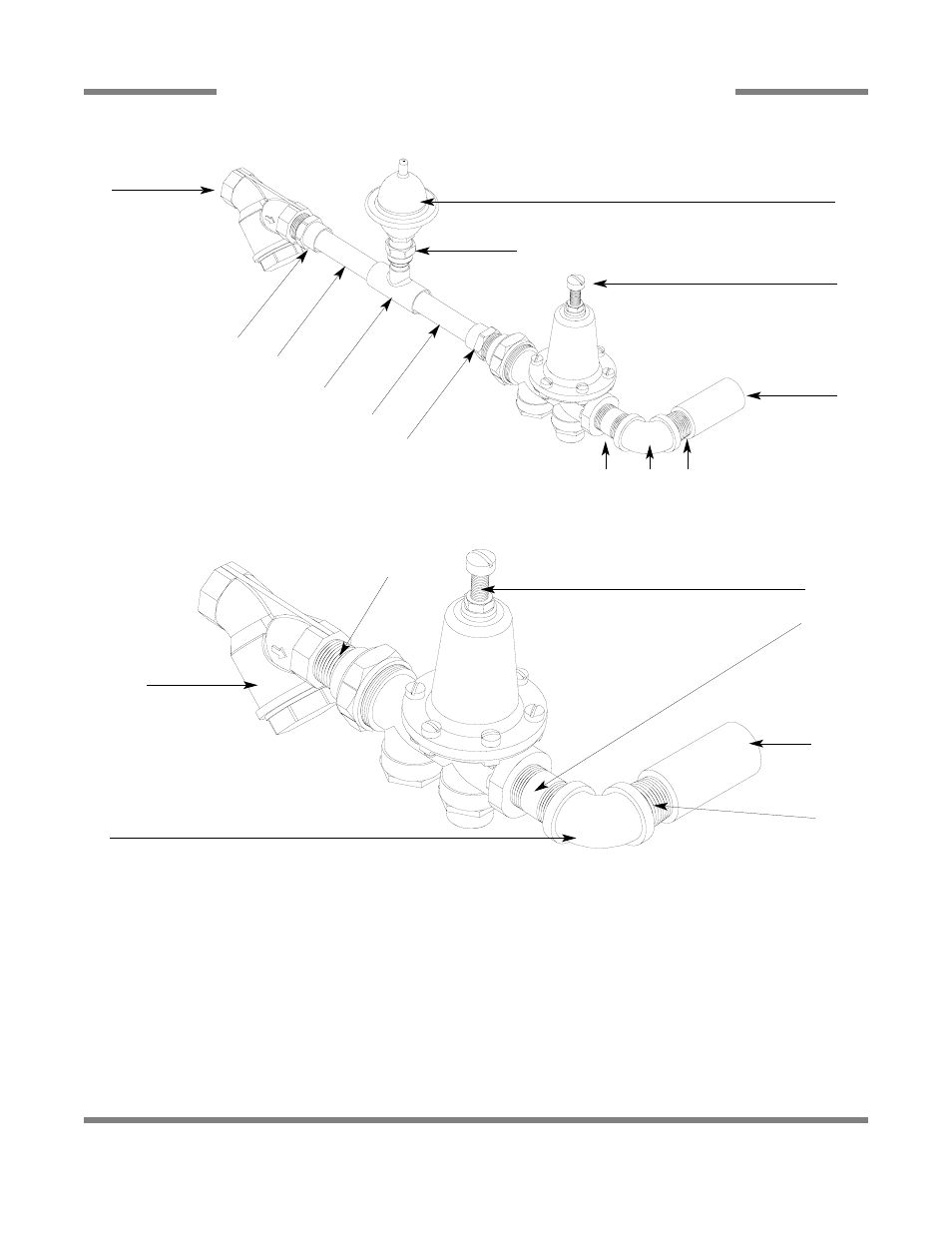

Plumbing with Water Hammer Arrestor
Plumbing without Water Hammer Arrestor
