AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
89

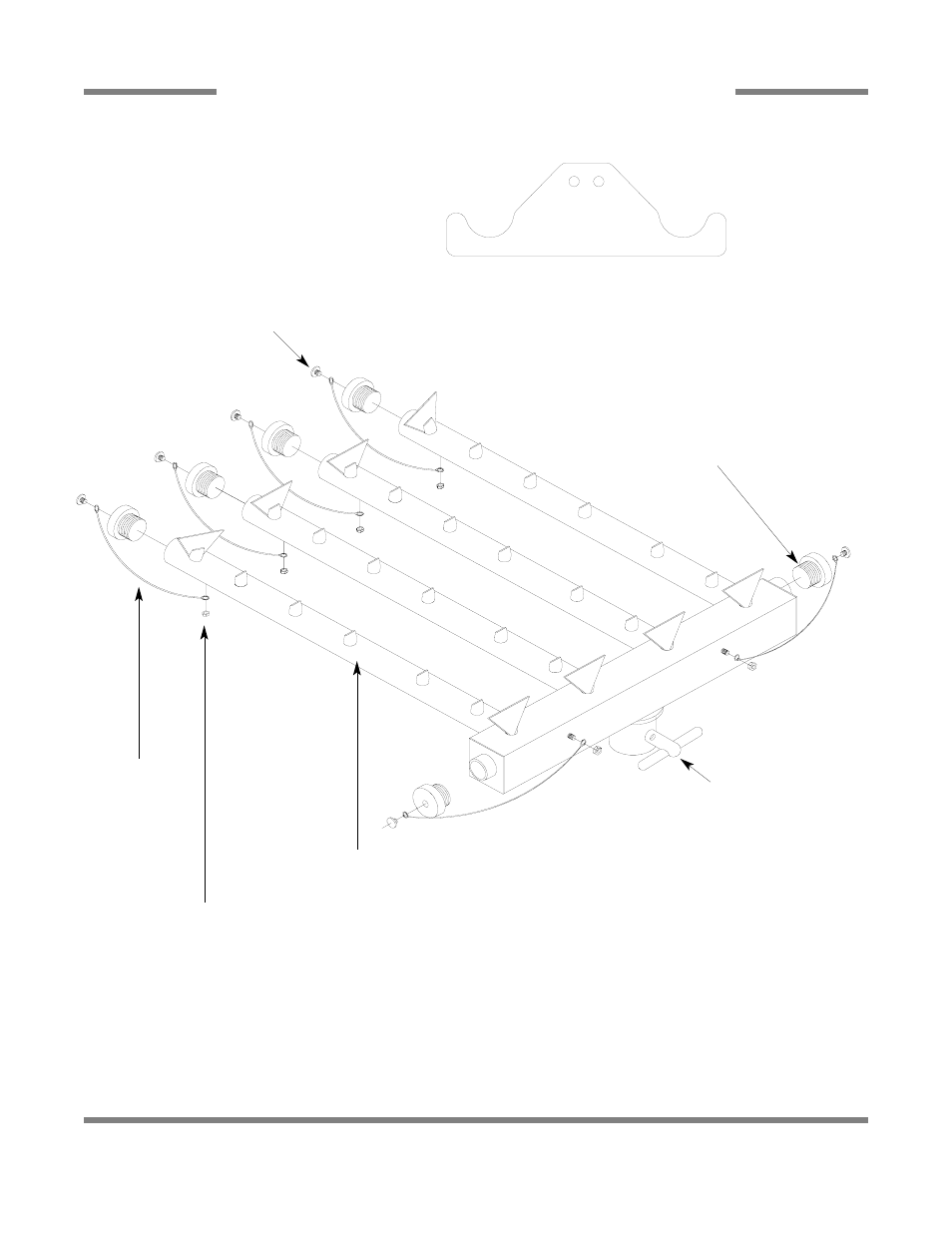

LOWER WASH ARM ASSEMBLY
Screw, 10-32 x 3/8” Truss Head
05305-173-12-00
Complete Lower Wash Arm Assembly
05700-031-74-66
End Cap
6 per
05700-011-67-11
Lanyard
6 per
05340-011-72-46
Locknut, 10-24 with Nylon Insert
05310-373-01-00
Lower Wash Arm Manifold Weldment
05700-031-67-29
Manifold Quick-Release Key
05700-011-94-45
SERVICE NOTE: When replacing the 10-32 screws in the End Caps, it is recommended that a thread locking fluid be used to
ensure that the screws do not back out during normal operation.
Lower Wash Arm Support Bracket
05700-011-71-20
Secured with Locknut, 1/4”-20 with Nylon Insert
05310-374-01-00
