AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 5: PARTS SECTION
95

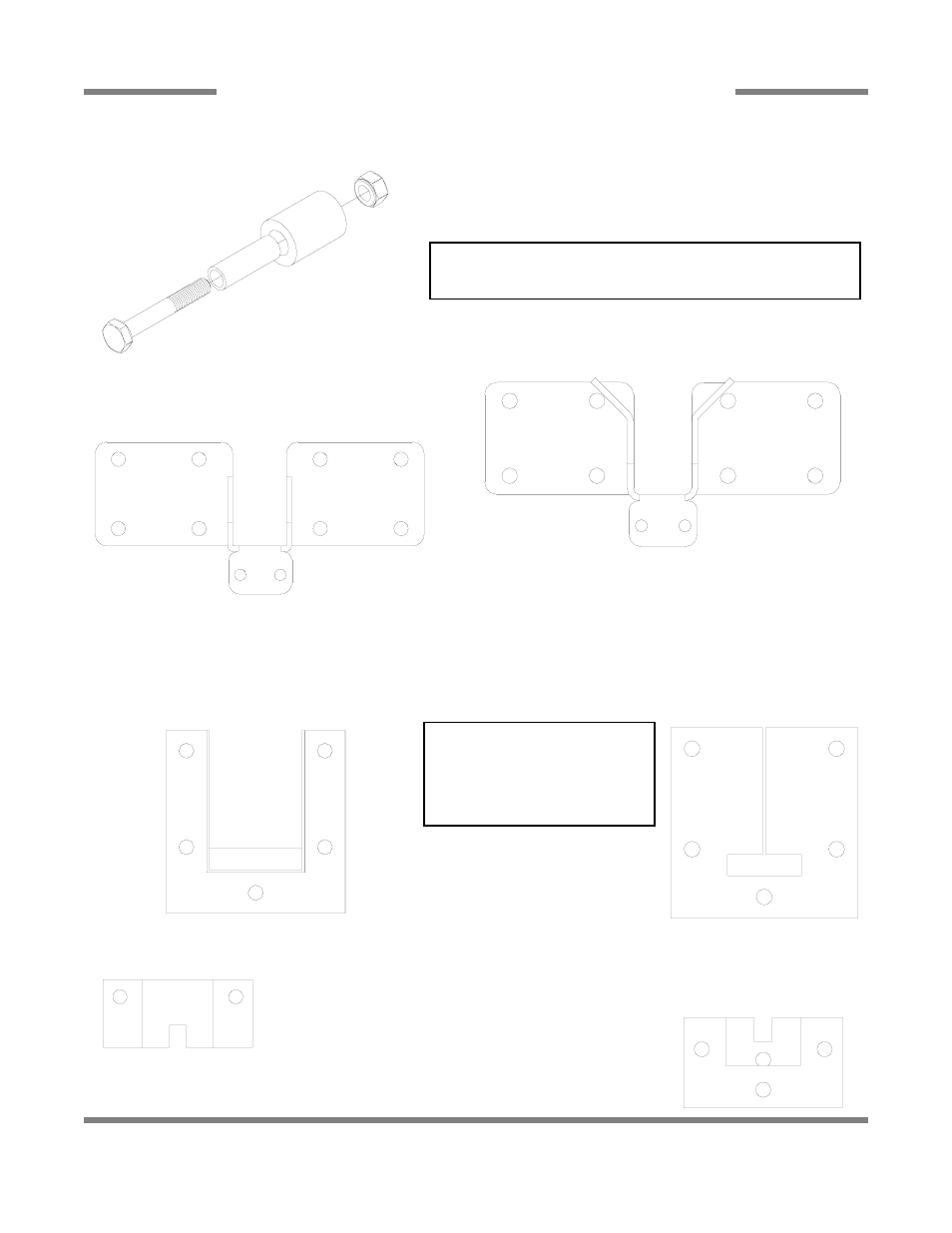

PAWL BAR MISCELLANEOUS COMPONENTS
Pawl Bar Gutter Weldment Replacement Kit
06401-003-09-95
Bottom Guide Block
Top Guide Block
Pawl Bar Gutter Gasket
05330-011-68-55
Replacement Kits Notes:
The pawl bar gutter weldment
replacement kit contains the weld-
ment, a gasket and the mounting
hardware. The guide block kit con-
tains both blocks and a gasket.
Service Note: It is highly recommended that when
changing out one guide block, that the other be changed
out as well, along with the gasket.
Guide Block Replacment Kit
06401-003-10-15
Pawl Bar Roller Replacement Kit
06401-003-11-80
Replacement Kit Notes:
The replacement kit for the pawl bar roller comes with the roller, roller
shaft, hardware and locknut as shown.
Pawl Bar Bracket (with studs) Weldment
05700-031-84-68 Pawl Bar Bracket (without tabs) Weldment
05700-031-92-36
