FUNCTIONS FOR RECEIVE

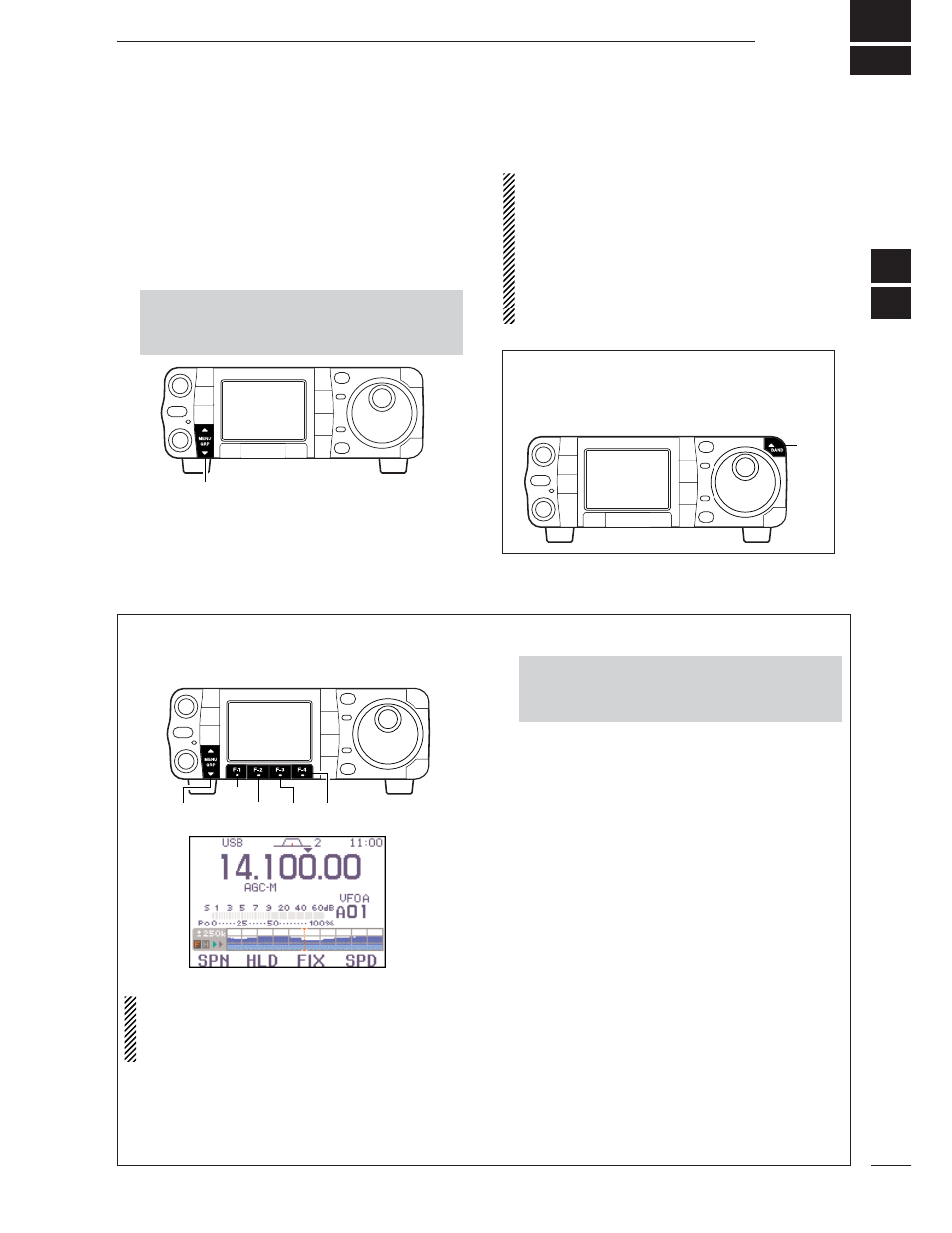

■Simple band scope
This DSP-based simple band scope allows you to dis-
play conditions on the selected band, as well as rela-
tive strength of signals. The IC-7000 has two modes
for the spectrum indication—one is fix mode, and an-
other one is center mode.
➥ Select G - 1 (Scope).
NOTE: The IC-7000’s simple band scope can mon-
itor the displayed frequency during sweeping. Both
of the receving and sweeping functions use the
same receive circuit which switch alternatively es-
pecially at high speed. Thus this switching sound
during may be irritating to listen to. If so, set the de-
sired monitoring sound, “FAST Sweep Sound,”
or change the fast sweep setting, “FAST
Sweep,” in the scope set mode (p. 73).
[MENU/GRP]
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group G (Graphic).
• Push [MENU/GRP] momentarily one or more times to
select the menu G - 1 (Scope).
DFix mode
Displays signals within the specified frequency range.
The selected band conditions can be observed at a
glance when using this mode.
NOTE: If there is a lot of signal noise, turn the pre-
amp OFF and the attenuator ON (p. 74) to reduce
the input level and improve the readability of the
scope.
qSet a mode and frequency.
wSelect G - 1 (Scope).
ePush [F-3 FIX] momentarily to select the fix
mode.
• “ O” and readout frequency indicator appear when the
fix mode is selected.
rPush [F-4 SPD] momentarily to select the sweep
speed.
• “ ≈” or “≈≈” appears when Slow speed or Fast speed is
selected, respectively.
tPush [F-1 SPN] one or more times to select the
desired steps.
• ±10, 25, 50, 100 and 250 kHz are available.
• Push and hold [F-1 SPN] for 1 sec. to select the ±10
kHz step.
• “<” or “>” indicates when the displayed frequency is out
of range. The scope center position can be set to the
displayed frequency by pushing and holding
[F-3
FIX ] for 1 sec.
• The simple band scope operates in the peak level hold
mode. Peak levels are displayed in the background of
the current spectrum in a different color until the receive
frequency changes. This can be cleared by pushing
and holding
[F-2 HLD] for 1 sec., or deactivated in the
scope set mo de. (p. 73)
yPush [F-2 HLD] to freeze the current spectrum dis-
play.
• “ H” appears while the function is in use.
• Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group G (Graphic).
• Push [MENU/GRP] momentarily one or more times to
select the menu G - 1 (Scope).
[MENU/GRP]
[F-1]
[F-2] [F-3] [F-4]
Quick entry
➥ Push [Y(
BAND
)] for 1 sec. to turn the simple
band scope ON and OFF.
• Push [ Z(
MENU / GRP
)] also to turn OFF.
[ Y]
