9
Front & Rear Panels
For detailed information, refer to the pages in parenthesis.
A Standby/On button (38)
This button is used to set the DTR-8.4 to On or
Standby.
B Standby indicator (38)
This indicator lights up when the DTR-8.4 is in
Standby mode, and it flashes while a signal is being
received from the remote controller.
C Audio Selector button (53)
This button is used to select the audio input signal
format: analog, digital, or multichannel.
D Input selector buttons & indicators (51)
These buttons are used to select the following input
sources: DVD, VIDEO 1–5, TAPE, TUNER,
PHONO, CD, and NET AUDIO. The indicators
show the currently selected input source.
The indicators also show which input source is
selected for Zone 2, in which case they light up
green, or which input source is selected for record-
ing (REC OUT), in which case they light up red.
E Display
See “Display” on page 11.

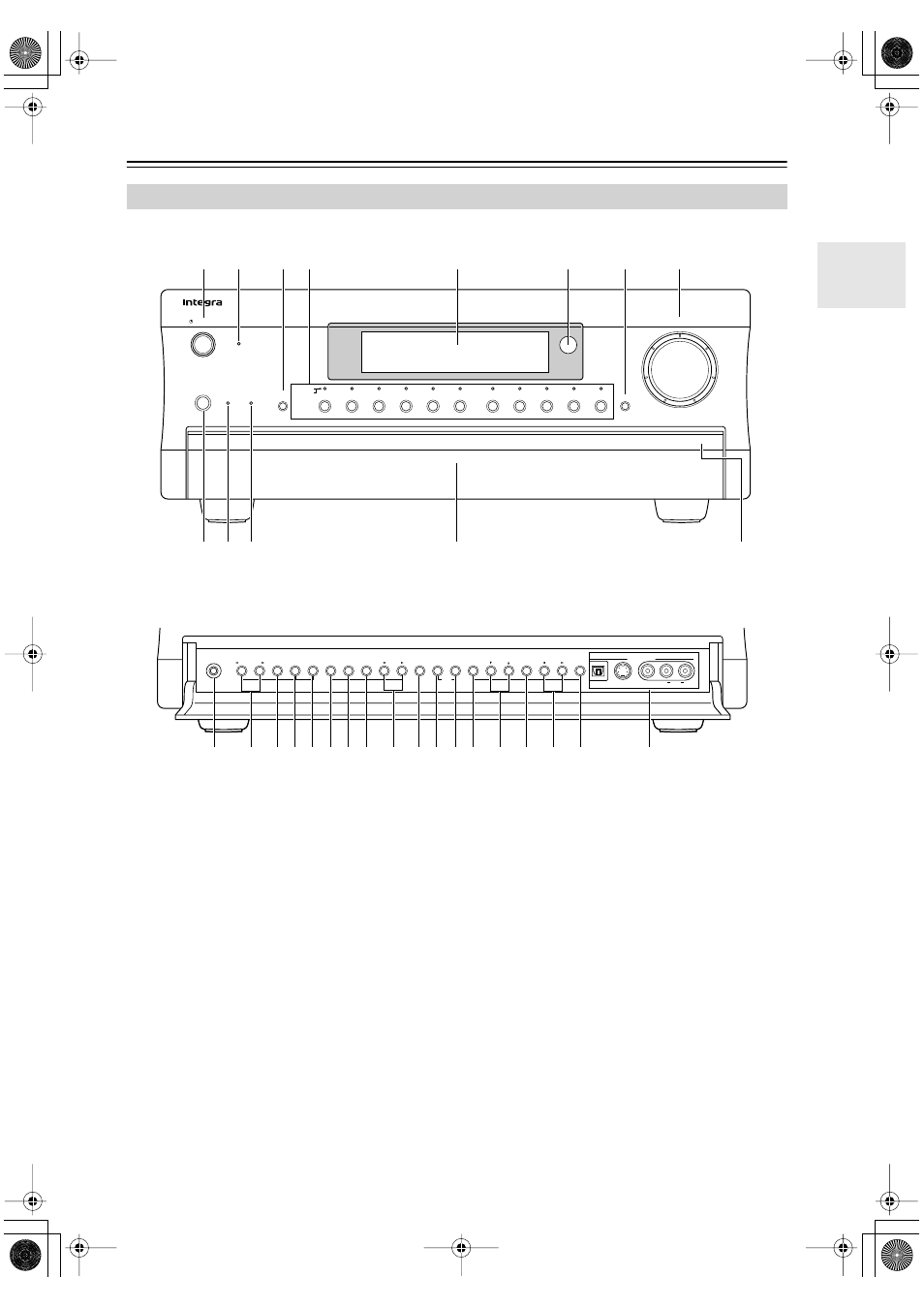

Front Panel
Display Audio Selector
Direct/ Pure Audio
Master Volume Standby/On
Video 1 Video 3 Tape Tuner Phono Net Audio CD DVD Video 2
VCR 1 VCR 2
Video 4 Video 5
Zone 2 ( ) GRN
Rec ( ) RED
Pure Audio psampling U
Standby
Push To Open
DTR-8.4
Phones Zone 2 Level Stereo Surround THX DSP Rec Out Zone 2 Off Dimmer Memory
Clear
FM Mode Setup Tuning Enter Preset Return
S Video Audio Video L R Digital
Video 5 Input
L
K J
UV W X Y Z a b c T S R Q P O M N
1 B C D E F G H
I
Front door Push here to open the flap
