DTR-8.4/7.4 Net-Tune Quick Start Guide
• This guide explains how to get started quickly with Net-Tune.
• The DTR-8.4/7.4 can be used as a Net-Tune client on a standard Ethernet network, allowing you to play the music (MP3,
WAV) stored on your network audio server through the DTR-8.4/7.4. If your network is connected to the Internet, you can
also tune into Internet radio stations.
• For full details on using Net-Tune, refer to the DTR-8.4/7.4’s instruction manual.
• For best results, a 100Base-TX. switched Ethernet net-
work is recommended. Although it’s theoretically possi-
ble to use a wireless network, due to unpredictable
performance, it may not provide satisfactory results, so a
wired network is recommended.
• The DTR-8.4/7.4 uses DHCP to configure its network
settings automatically. Make sure that your router’s
DHCP server is enabled. With most routers, the DHCP
server is enabled by default.
• Some routers have a modem built-in, and some ISPs
require you to use specific routers. Please consult your
ISP or computer dealer if you’re unsure.
• You may need to specify a proxy server to use Internet
radio. If your network audio server is configured to use a
proxy server, use the same settings.
• To use Internet radio, your broadband Internet connec-
tion needs to be up and running and able to access the
Web. A narrowband Internet connection (e.g., 56K
modem, ISDN) will not provide satisfactory results, so a
broadband connection is recommended (e.g., cable
modem, xDSL modem, etc).

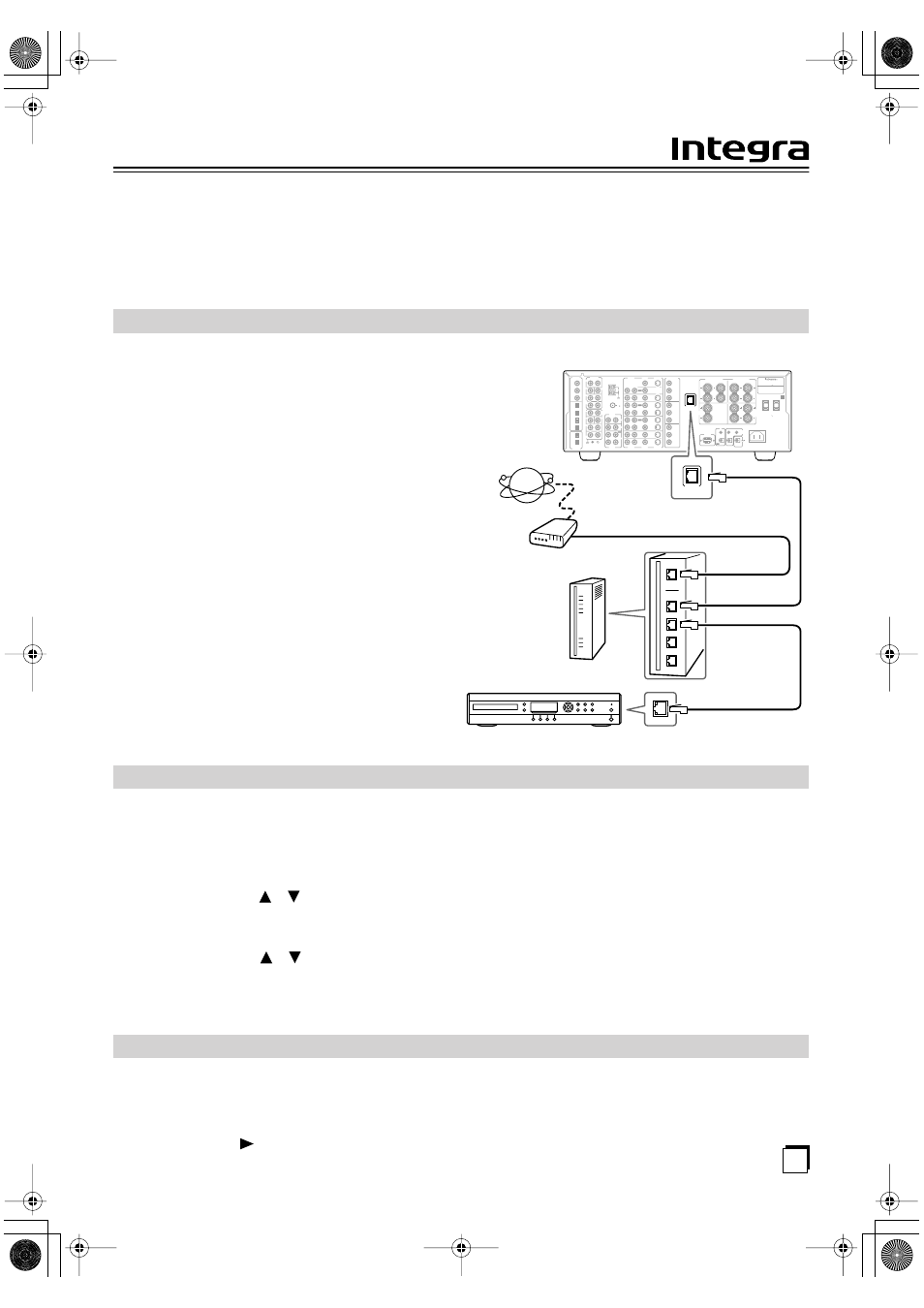

1. Connect the DTR-8.4/7.4 to your Ethernet network via a router or switch, as shown above.
2. Turn on the DTR-8.4/7.4.
3. Roll the scroll wheel to select IRD (Internet Radio).
4. Press the remote controller’s [Display] button.
5. Use the Up/Down [
]/[
] buttons to select Genres, Location, or Language, and then press the [Enter]
button.
The DTR-8.4/7.4 accesses the XiVA-Net online database to see what radio stations are available. This may take awhile.
6. Use the Up/Down [
]/[
] and [Enter] buttons to select a radio station.
The DTR-8.4/7.4 connects to the selected radio station and begins buffering audio data, the progress of which is dis-
played in percent. When buffering reaches 100%, playback starts.
1. Turn on the network audio server.
2. Turn on the DTR-8.4/7.4.
3. Roll the scroll wheel to select MSRV (Music Server).
4. Press the Play [
] button to start playback.
Networking the DTR-8.4/7.4
Using Internet Radio
Playing Tracks in the Network Audio Server
