Integra DTR-8.4 - Manual (Page 32)

32

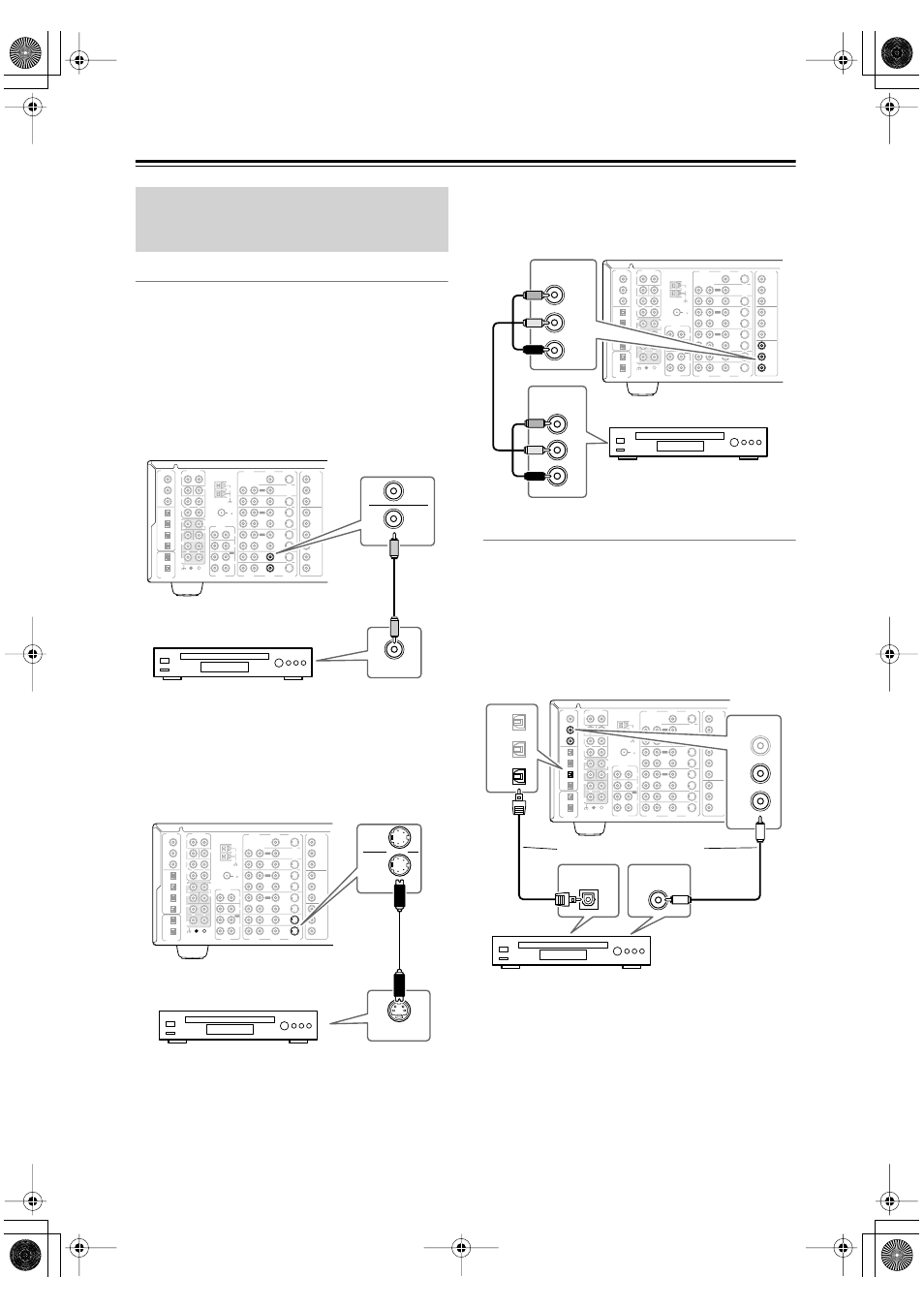

Connecting the DTR-8.4 —Continued
Video Connections
You only need to use one of the following connection
methods.
If you just want to listen to the audio from your TV via
the DTR-8.4 with surround sound, no video connections
are necessary, just make an audio connection.
■ Using Composite Video
Use a composite video cable to connect the DTR-8.4’s
VIDEO VIDEO 3 or 4 IN to the composite video output
on your video source, as shown.
■
Using S-Video
Use an S-Video cable to connect the DTR-8.4’s
S VIDEO VIDEO 3 or 4 IN to the S-Video output on
your video source, as shown.
■ Using Component Video
Use a component video cable to connect the DTR-8.4’s
COMPONENT VIDEO INPUT 1 or 2 to the component
video output on your video source, as shown.
Audio Connections
■
Using Coaxial or Optical Connections
• Use a coaxial digital audio cable to connect the
DTR-8.4’s DIGITAL IN COAX , 2, or 3 to the coaxial
output on your video source, as shown.
OR
• Use an optical digital audio cable to connect the
DTR-8.4’s DIGITAL IN OPT 3 to the optical output
on your video source, as shown.
Notes:
• You may need to change the digital input-to-input
source assignments (see page 45).
• To connect the DTR-8.4 to an LD player’s AC-3RF
output, you need a commercially available demodula-
tor.
Connecting Other Video Sources—
TV, Satellite, Cable, Set-top box, LD
Player, etc.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COMPONENT VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2 Y
P B
P R
VIDEO OUT
IN
IN
VIDEO 3
VIDEO 4
Satellite, cable, set-top
box, LD player, etc.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COMPONENT VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
S VIDEO OUT
VIDEO 3
VIDEO 4
Satellite, cable, set-top
box, LD player, etc.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COMPONENT VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
COMPONENT
VIDEO OUT
INPUT 2
Y
P B
P R
Y
P B
P R
COMPONENT
VIDEO
Satellite, cable, set-top
box, LD player, etc.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COMPONENT VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
DIGITAL
IN
2
3
1
COAX
2
3
DIGITAL OUT
OPTICAL
DIGITAL OUT
COAXIAL
OPT
1
TV, Satellite, cable, set-top box, LD player, etc.
Connect one or the other
