Connecting a TV
Use a composite video cable to connect the DTR-8.4’s
VIDEO MONITOR OUT output to a composite video
input on your TV.
OR
Use an S-Video cable to connect the DTR-8.4’s S
VIDEO MONITOR OUT output to an S-Video input on
your TV.
Connecting a DVD Player
■ Using Optical or Coaxial Connections
Use a coaxial digital audio cable to connect the
DTR-8.4’s DIGITAL IN COAX 1 to the coaxial output
on your DVD player, as shown.
OR
Use an optical digital audio cable to connect the
DTR-8.4’s DIGITAL IN OPT 1, 2, 3, or 4 to the optical
output on your DVD player, as shown.
Initially, the COAX1 digital input is assigned to the
DVD input source. If you connect your DVD player to a
different digital input, you’ll need to reassign the DVD
input source (see page 45 of the instruction manual).
■
Using Composite Video or S-Video
Use a composite video cable to connect the DTR-8.4’s
VIDEO DVD IN to the composite video output on your
DVD player, as shown.
OR
Use an S-Video cable to connect the DTR-8.4’s
S VIDEO DVD IN to the S-Video output on your DVD
player, as shown.
1.
Connect the power cord.
2.
Press the [Standby/On] button to turn on the
DTR-8.4.
Using the remote controller
1. Press the scroll wheel.
“AMP” appears on the remote controller’s display.
This is the mode for controlling the DTR-8.4.
2. Press the [On] button to turn on the DTR-8.4.

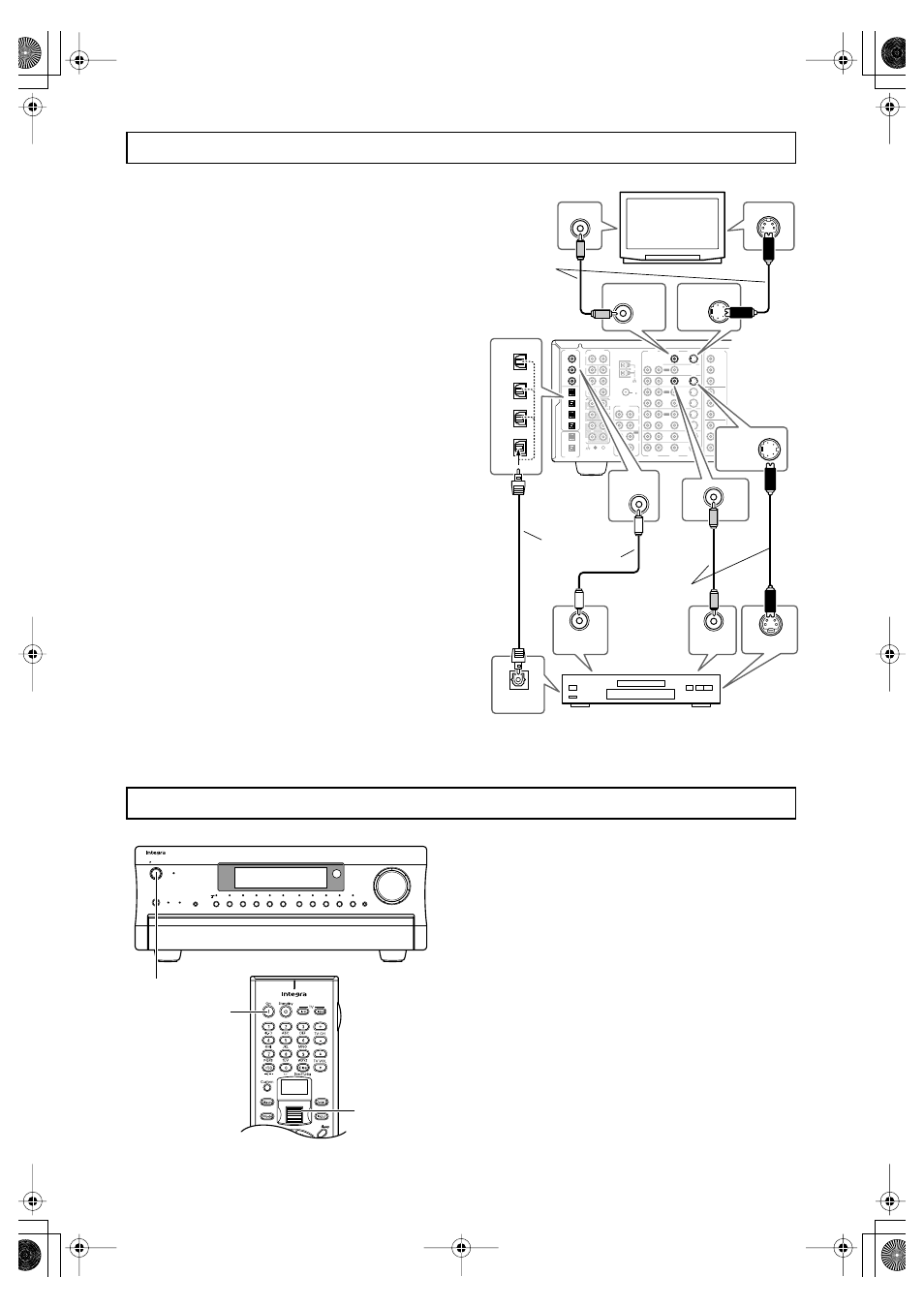

Connecting Your TV & DVD Player
