Integra DTR-8.4 - Manual (Page 33)

33

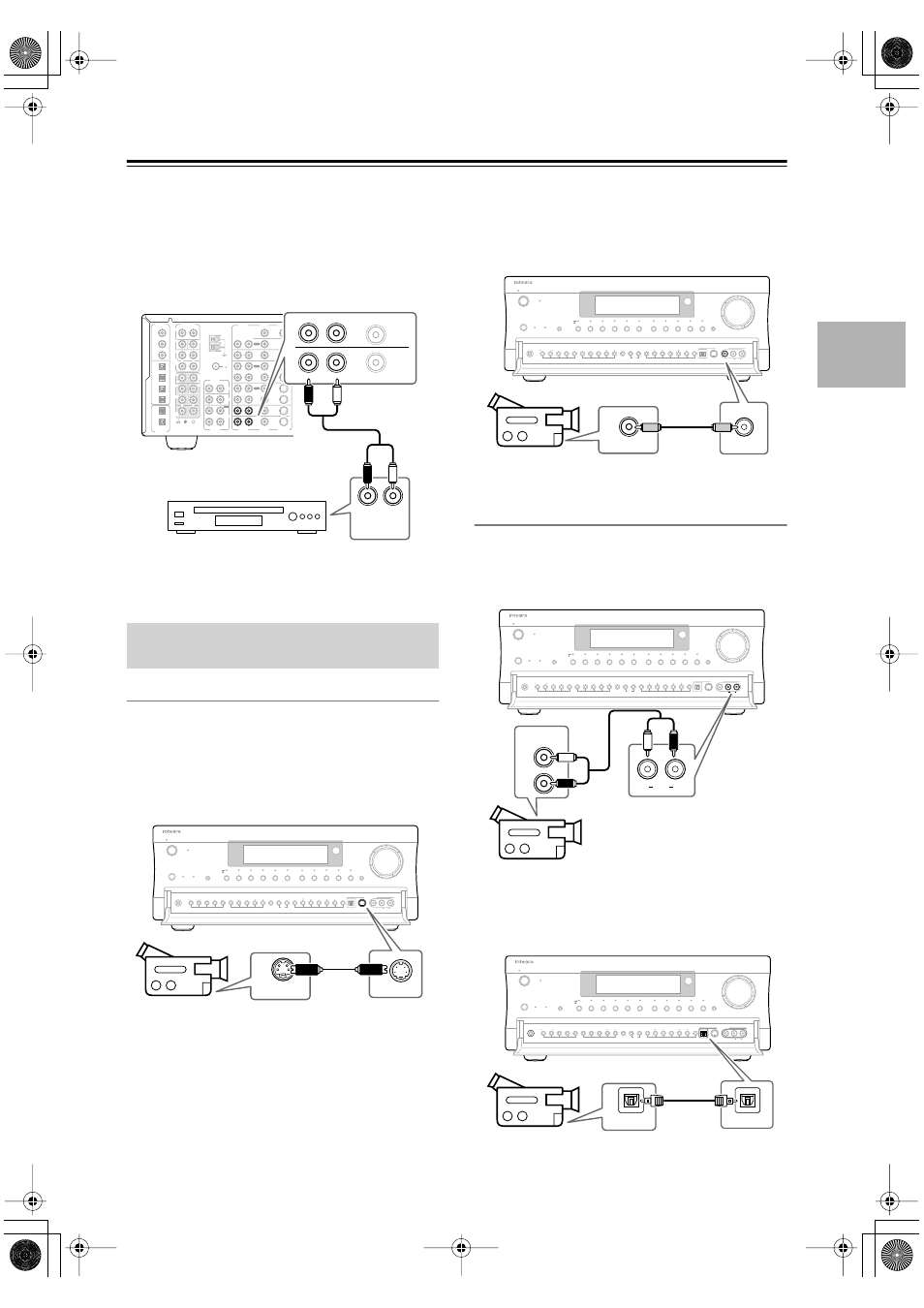

Connecting the DTR-8.4 —Continued
■ Using Analog Connections
If your video source doesn’t have digital audio outputs,
or you want to record from it, you’ll need to make the
following analog audio connections.
Use an analog audio cable (RCA/phono) to connect the
DTR-8.4’s AUDIO VIDEO 3 or 4 IN L/R inputs to the
analog audio outputs on your video source, as shown.
Video Connections
You only need to use one of the following connection
methods.
■ Using S-Video
Use an S-Video cable to connect the DTR-8.4’s VIDEO
5 INPUT S VIDEO input to the S-Video output on your
camcorder, games console, etc., as shown.
■ Using Composite Video
Use a composite video cable to connect the DTR-8.4’s
VIDEO 5 INPUT VIDEO input to the composite video
output on your camcorder, games console, etc., as
shown.
Audio Connections
Use an analog audio cable (RCA/phono) to connect the
DTR-8.4’s VIDEO 5 INPUT AUDIO L/R inputs to the
analog audio outputs on your camcorder, games console,
etc., as shown.
If your camcorder, games console, etc., has an optical
digital audio output, use an optical digital audio cable to
connect it to the DTR-8.4’s VIDEO 5 INPUT DIGITAL
input, as shown.
Connecting a Camcorder, Games
Console, etc.
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COMPONENT VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2 Y
P B
P R
L R
L R
AUDIO
OUTPUT
IN
IN VIDEO 3
VIDEO 4
TV, Satellite, cable, set-
top box, LD player, etc.
Display Audio Selector
Direct/ Pure Audio
Master Volume Standby/On
Video 1 Video 3 Tape Tuner Phono Net Audio CD DVD Video 2
VCR 1 VCR 2
Video 4 Video 5 Zone 2 ( ) GRN Rec ( ) RED Pure Audio psampling U
Standby
Phones Zone 2 Level Stereo Surround THX DSP Rec Out Zone 2 Off Dimmer Memory
Clear
FM Mode Setup Tuning Enter Preset Return
S Video Audio Video L R Digital
Video 5 Input
S VIDEO OUT S VIDEO
Camcorder,
games console, etc.
Display Audio Selector
Direct/ Pure Audio
Master Volume Standby/On
Video 1 Video 3 Tape Tuner Phono Net Audio CD DVD Video 2
VCR 1 VCR 2
Video 4 Video 5 Zone 2 ( ) GRN Rec ( ) RED Pure Audio psampling U
Standby
Phones Zone 2 Level Stereo Surround THX DSP Rec Out Zone 2 Off Dimmer Memory
Clear
FM Mode Setup Tuning Enter Preset Return
S Video Audio Video L R Digital
Video 5 Input
VIDEO OUT VIDEO
Camcorder,
games console, etc.
Display Audio Selector
Direct/ Pure Audio
Master Volume Standby/On
Video 1 Video 3 Tape Tuner Phono Net Audio CD DVD Video 2
VCR 1 VCR 2
Video 4 Video 5 Zone 2 ( ) GRN Rec ( ) RED Pure Audio psampling U
Standby
Phones Zone 2 Level Stereo Surround THX DSP Rec Out Zone 2 Off Dimmer Memory
Clear
FM Mode Setup Tuning Enter Preset Return
S Video Audio Video L R Digital
Video 5 Input
AUDIO L R
L
R
AUDIO
OUTPUT
Camcorder,
games console, etc.
Display Audio Selector
Direct/ Pure Audio
Master Volume Standby/On
Video 1 Video 3 Tape Tuner Phono Net Audio CD DVD Video 2
VCR 1 VCR 2
Video 4 Video 5 Zone 2 ( ) GRN Rec ( ) RED Pure Audio psampling U
Standby
Phones Zone 2 Level Stereo Surround THX DSP Rec Out Zone 2 Off Dimmer Memory
Clear
FM Mode Setup Tuning Enter Preset Return
S Video Audio Video L R Digital
Video 5 Input
DIGITAL OUT S VIDEO DIGITAL
Camcorder,
games console, etc.
